13AA625P004 - MTD Gold Lawn Tractor (2009) Drive & Pedal System Parts Diagram

Gold Lawn Tractor

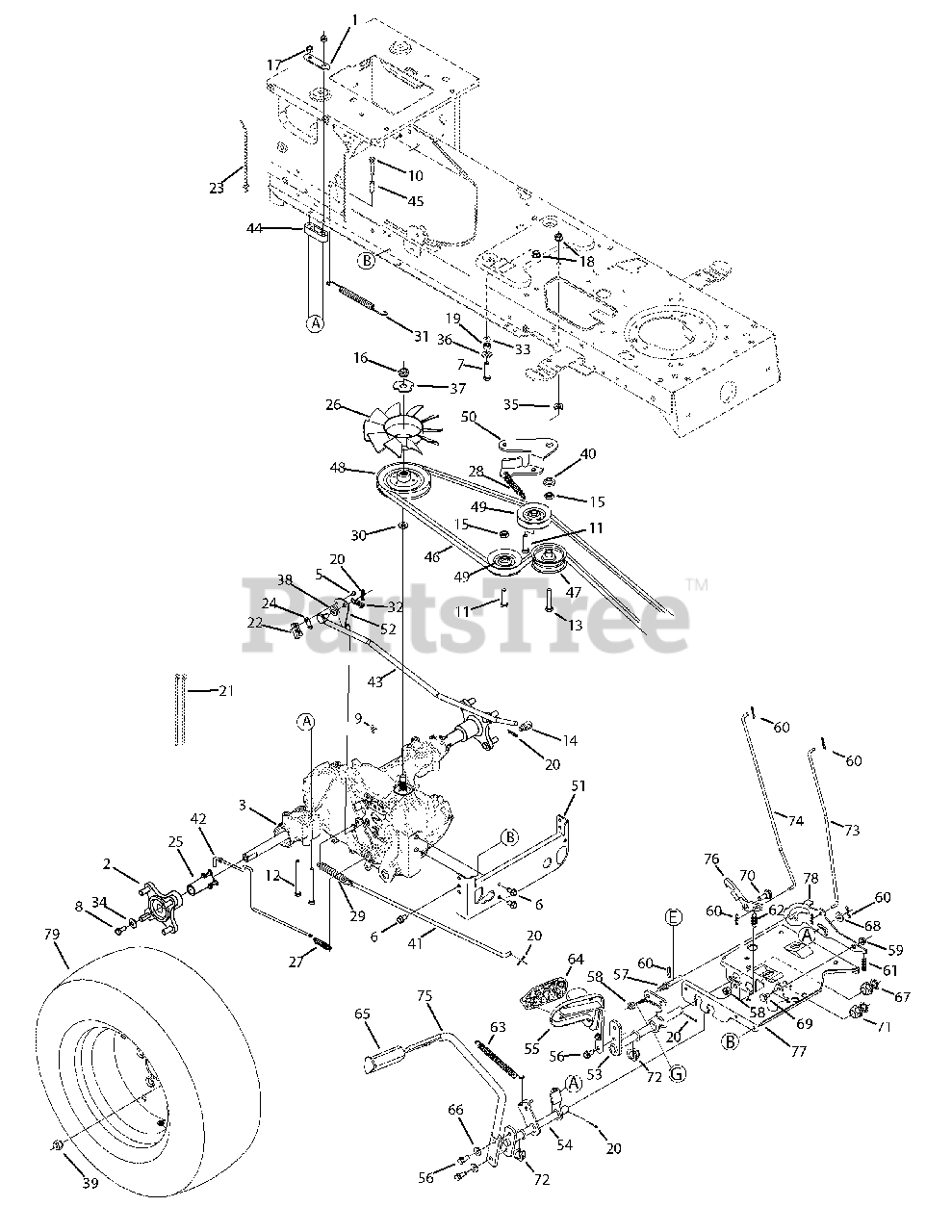

Drive & Pedal System Parts Diagram

  • Title

1

MTD 17840-0637

Transmission Mounting Bracket

$11.99

$

Usually ships in 3-6 days

0

2

MTD 918-04228

Wheel Hub Assembly
(Superseded to 918-04228A)

$50.99

$

In Stock, Qty 5

0

3

MTD 918-04270B

Hydrostatic Transmission

$

$

Not available

5

MTD 710-0227

AB Screw #8-18 x 0.375

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-04484

AB Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0520

Hex Bolt 3/8-16 x 1.5

$4.49

$

In Stock, Qty 5

0

8

MTD 710-0627

Screw, 5/16-24 x.750

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0653

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 7

0

10

MTD 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-1007

Screw, 3/8-16 x 1.50

$6.49

$

Usually ships in 3-6 days

0

12

MTD 710-1266

Hex Bolt 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

13

MTD 710-3011

Hex Bolt 3/8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

14

MTD 911-0832

Ferrule

$15.99

$

In Stock, only 4 left!

0

15

MTD 912-0240

Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

16

MTD 912-0346

Hex Nut, 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

17

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 912-0431

Flanged Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

19

MTD 912-3017

Flanged Lock Nut 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

20

MTD 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

21

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

22

MTD 725-1644

Switch

$9.99

$

In Stock, Qty 11

0

23

MTD 926-0154

Cable Tie

$6.49

$

Usually ships in 3-6 days

0

24

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

25

MTD 731-05300

Sleeve, .765 x 2.410 Lg.
(Superseded to 731-05300A)

$4.99

$

In Stock, only 1 left!

0

26

MTD 731-06098

Blade Fan

$19.99

$

In Stock, Qty 20+

0

27

MTD 932-0209

Extension Spring

$7.99

$

In Stock, only 2 left!

0

28

MTD 732-04323B

Extension Spring

$12.99

$

In Stock, only 1 left!

0

29

MTD 732-0716D

Extension Spring

$13.99

$

In Stock, only 1 left!

0

30

MTD 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

31

MTD 732-0994

Extension Spring

$10.99

$

In Stock, Qty 9

0

32

MTD 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

33

MTD 936-0169

Lock Washer
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

34

MTD 736-0242

Bell Washer,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

35

MTD 736-0258

Flat Washer,.385 x 1.0 x .135

$4.49

$

In Stock, only 4 left!

0

36

MTD 936-0300

Flat Washer
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-04263

Lock Washer, Hydro Trans.

$6.99

$

In Stock, Qty 20+

0

38

MTD 736-3010

Flat Washer

$4.99

$

In Stock, Qty 20+

0

39

MTD 712-3050

Lug Nut 7/16-14

$9.99

$

In Stock, only 1 left!

0

40

MTD 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 18

0

41

MTD 747-04139

Brake Rod

$24.99

$

In Stock, only 1 left!

0

42

MTD 747-1149

Bypass Rod

$24.99

$

In Stock, only 1 left!

0

43

MTD 747-1151

Control Rod

$

$

Not available

44

MTD 948-0334

Trans-axle Spacer

$10.99

$

In Stock, only 1 left!

0

45

MTD 750-0566A

Spacer,.260 x.372 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

46

MTD 954-04165

V-belt, 4L x 78" Lg

$53.99

$

In Stock, only 1 left!

0

47

MTD 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

48

MTD 756-04308

Input Pulley

$31.99

$

In Stock, Qty 20+

0

49

MTD 756-04325

Idler Pulley

$24.99

$

In Stock, Qty 20+

0

50

MTD 783-04442-0637

Idler Bracket

$35.99

$

In Stock, only 1 left!

0

51

MTD 783-0810B-0637

Torque Bracket

$

$

Not available

52

MTD 783-1019B

Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

53

MTD 647-0049A-0637

Hydrostatic Control Assembly

$

$

Not available

54

MTD 647-04100-0637

Brake Control Assembly

$

$

Not available

55

MTD 683-0267C

Pedal Assembly

$

$

Not available

56

MTD 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

57

MTD 711-04159B

Pin

$7.99

$

Usually ships in 3-6 days

0

58

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

59

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

60

MTD 914-0104

Pin, Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

61

MTD 732-0335

Compression Spring

$

$

Not available

62

MTD 732-0955

Extension Spring

$9.99

$

In Stock, only 1 left!

0

63

MTD 732-0963

Extension Spring

$9.99

$

In Stock, only 4 left!

0

64

MTD 735-0662

Control Pedal

$11.99

$

Usually ships in 3-6 days

0

65

MTD 735-3049A

Brake Control Pedal

$12.99

$

In Stock, only 1 left!

0

66

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

67

MTD 736-0187

Flat Washer,.64 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

68

MTD 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

69

MTD 938-0155

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

70

MTD 938-0380

Shoulder Screw
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

71

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 19

0

72

MTD 741-3065B

Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

73

MTD 747-04093A

Brake Lock Control Rod

$

$

Not available

74

MTD 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

75

MTD 747-04641A-0637

Brake Pedal

$31.99

$

Usually ships in 3-6 days

0

76

MTD 748-04039C

Cruise Latch

$

$

Not available

77

MTD 783-04612-0637

Steering Support Bracket

$89.99

$

In Stock, only 3 left!

0

78

MTD 783-0663E

Hydro Lockout Bracket

$17.99

$

Usually ships in 3-6 days

0

79

MTD 734-04174

Tire Only, 22 x 9.5 x 12

$113.99

$

Usually ships in 3-6 days

0

79

MTD 634-04238-0499

Rim Only

Note: Not Shown

$172.99

$

Usually ships in 3-6 days

0

79

MTD 934-0255

Tubeless Air Valve

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

79

MTD 712-3050

Nut, Lug 7/16-14

Note: Not Shown

$9.99

$

In Stock, only 1 left!

0

MTD 629-0949B

Harness Assembly

Note: Not Shown

$43.99

$

Usually ships in 3-6 days

0
