13AA625P004 - MTD Gold Lawn Tractor (2008) (Ace Hardware) Steering & Front Axle Assembly Parts Diagram

Gold Lawn Tractor

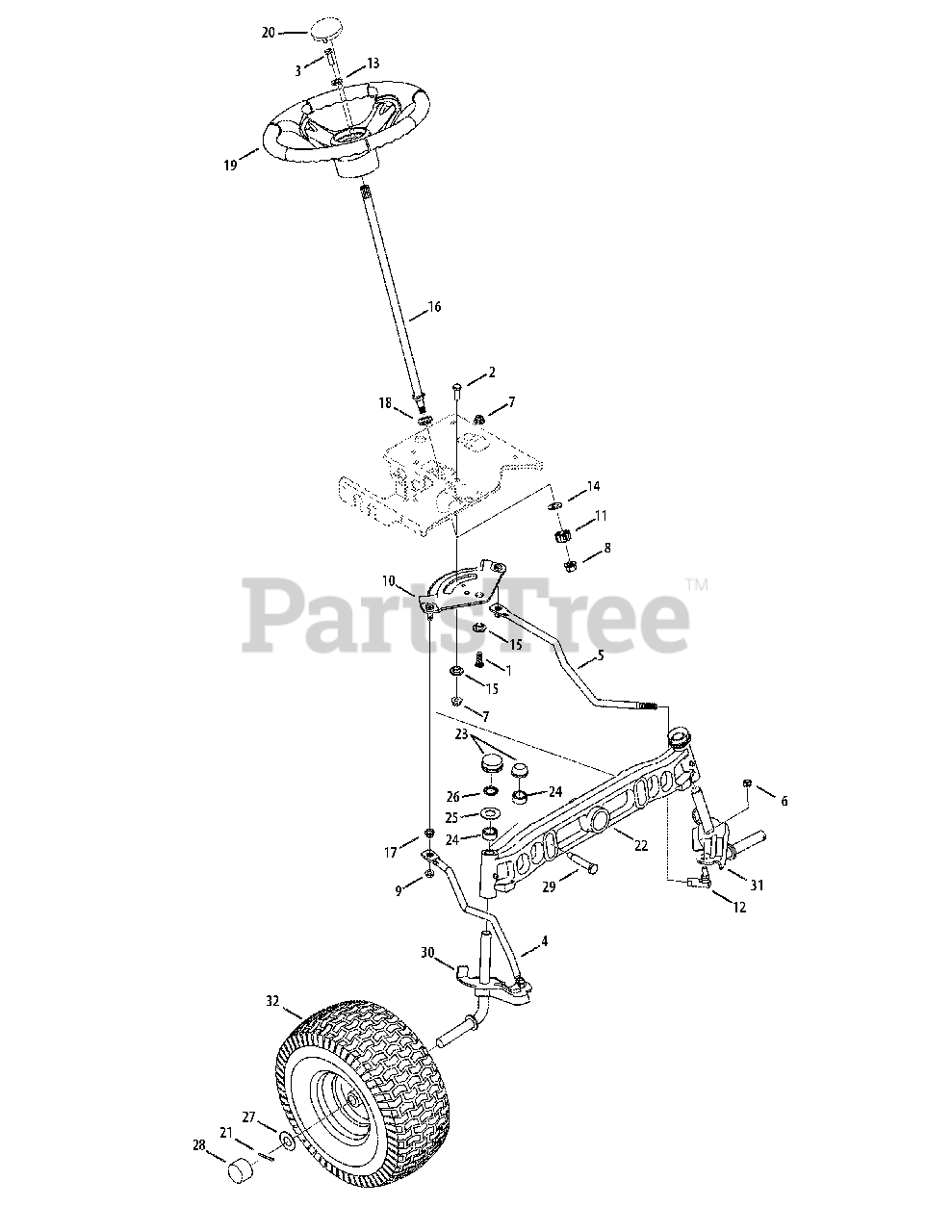

Steering & Front Axle Assembly Parts Diagram

  • Title

1

MTD 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$6.99

$

In Stock, Qty 5

0

4

MTD 711-1408

Link, Drag, RH

$

$

Not available

5

MTD 711-1409A

Link, Drag, LH

$

$

Not available

6

MTD 712-0214

Nut, Hex Lock, 3/8-24

$6.49

$

In Stock, only 2 left!

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

10

MTD 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

11

MTD 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

MTD 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

13

MTD 736-3004

Washer, Flat,.406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

14

MTD 736-3084

Washer, Flat,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

15

MTD 738-04154

Spacer, Shoulder,.38 x 1.00 x .31

$5.49

$

In Stock, Qty 11

0

16

MTD 738-04263

Shaft, Steering, .625 OD x 24.25

$68.99

$

In Stock, Qty 7

0

17

MTD 741-0475

Plastic Bushing.380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

18

MTD 741-04237

Hex Flange Bearing 5/8 PM
(Superseded to 741-04237B)

$6.99

$

In Stock, Qty 12

0

19

MTD 631-04008A

Steering Wheel, 13.25 Soft Grip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

19

MTD 631-04028

Steering Wheel, 13.25

$69.99

$

In Stock, only 1 left!

0

20

MTD 731-04039

Steering Wheel Cover, No Logo

$8.49

$

Usually ships in 3-6 days

0

20

MTD 731-04040

Steering Wheel Cover, w/ Logo

$9.99

$

In Stock, only 1 left!

0

21

MTD 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

21

MTD 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

22

MTD 719-04177A

Pivot Bar Axle
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

22

MTD 737-3000

Fitting, Lube, 3/16 Drive Type
(Superseded to 937-3000)

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

22

MTD 737-0475

Fitting, Lube,M6 Threaded Type

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0

23

MTD 731-04693

Large Cap

$4.99

$

In Stock, only 2 left!

0

23

MTD 726-0341

Small Cap

$4.99

$

In Stock, Qty 20+

0

24

MTD 748-04068

Spacer, .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0316

Washer, Flat, .78 x 1.59 x .060

$4.49

$

In Stock, Qty 20+

0

26

MTD 726-04035

Push Nut, 3/4 dia.

$6.99

$

In Stock, only 1 left!

0

27

MTD 736-04228

Flat Washer, .781 x 1.589
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

28

MTD 731-05674

Hub Cap

$5.49

$

In Stock, Qty 20+

0

29

MTD 738-04128

Shoulder Bolt, .500 x 2.38, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

30

MTD 638-04003A

Axle Assembly
(Superseded to 638-04003AP)

Note: (50" Deck Units) RH

$

$

Not available

30

MTD 638-04005

Axle Assembly
(Superseded to 938-04005A-0637)

Note: (54" Deck Units) RH

$54.99

$

In Stock, only 1 left!

0

31

MTD 638-04004A

Axle Assembly
(Superseded to 938-04004A)

Note: (50" Deck Units) LH

$71.99

$

In Stock, only 2 left!

0

31

MTD 638-04006

Axle Assembly
(Superseded to 938-04006A-0637)

Note: (54" Deck Units) LH

$54.99

$

In Stock, only 2 left!

0

32

N/A

Wheel Assembly

Note: (50" Deck Units)

$

$

Not available

32

MTD 734-1731

Tire Only 15 x 6 x 6 Sq. Shldr.

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

32

MTD 634-04405

Rim Only w/ Valve Stem

Variations

MTD 634-04405-0499

Rim Assembly, 6.0 X 4.5 - CUB BEIGE (0499)

$69.99

$

In Stock, only 4 left!

0

MTD 634-04405-0662

RIM ASM-6.0 X 4.5 - OYSTER GRAY (0662)

$69.99

$

Usually ships in 3-6 days

0

MTD 634-04405-4042

Rim Assembly, 6.0 X 4.5 - CRAFTSMAN GRAY (4042)

$69.99

$

Usually ships in 3-6 days

0

MTD 634-04405-4009

RIM ASM-6.0 X 4.5 - TEE WHITE (4009)

$69.99

$

Usually ships in 3-6 days

0

MTD 634-04405-0674

RIM ASM-6.0 X 4.5 - YARDMAN YELLOW (0674)

$

$

Not available

$56.99

$

Usually ships in 3-6 days

0

32

MTD 634-04466

Wheel Assembly

Note: (54" Deck Units)

Variations

MTD 634-04466-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$100.99

$

Usually ships in 3-6 days

0

MTD 634-04466-0931

Wheel Assembly, 16 X 6 - Carlisle Beige (0931)

$100.99

$

Usually ships in 3-6 days

0

MTD 634-04466-0961

WHEEL ASM COMPLETE - Carlisle Gray (0961)

$100.99

$

Usually ships in 3-6 days

0

MTD 634-04466-0991

WHEEL ASM COMPLETE - Carlisle White (0991)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

32

MTD 734-1727

Tire Only 16 x 6.50 x 8 Sq. Shldr.

$56.99

$

Usually ships in 3-6 days

0

32

MTD 634-04082

Rim Only w/ Valve Stem
(Superseded to 934-04082)

Variations

MTD 634-04082-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$131.99

$

In Stock, Qty 5

0

MTD 634-04082-0662

RIM ASM 8 X 5.38 - OYSTER GRAY (0662)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-04082-0674

RIM ASSEMBLY - YARDMAN YELLOW (0674)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-04082-4009

RIM ASM - TEE WHITE (4009)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-04082-4042

RIM ASM 8 X 5.38 - CRAFTSMAN GRAY (4042)

$131.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0
