13AA625P004 - MTD Gold Lawn Tractor (2008) (Ace Hardware) Mower Deck 50 Parts Diagram

Gold Lawn Tractor

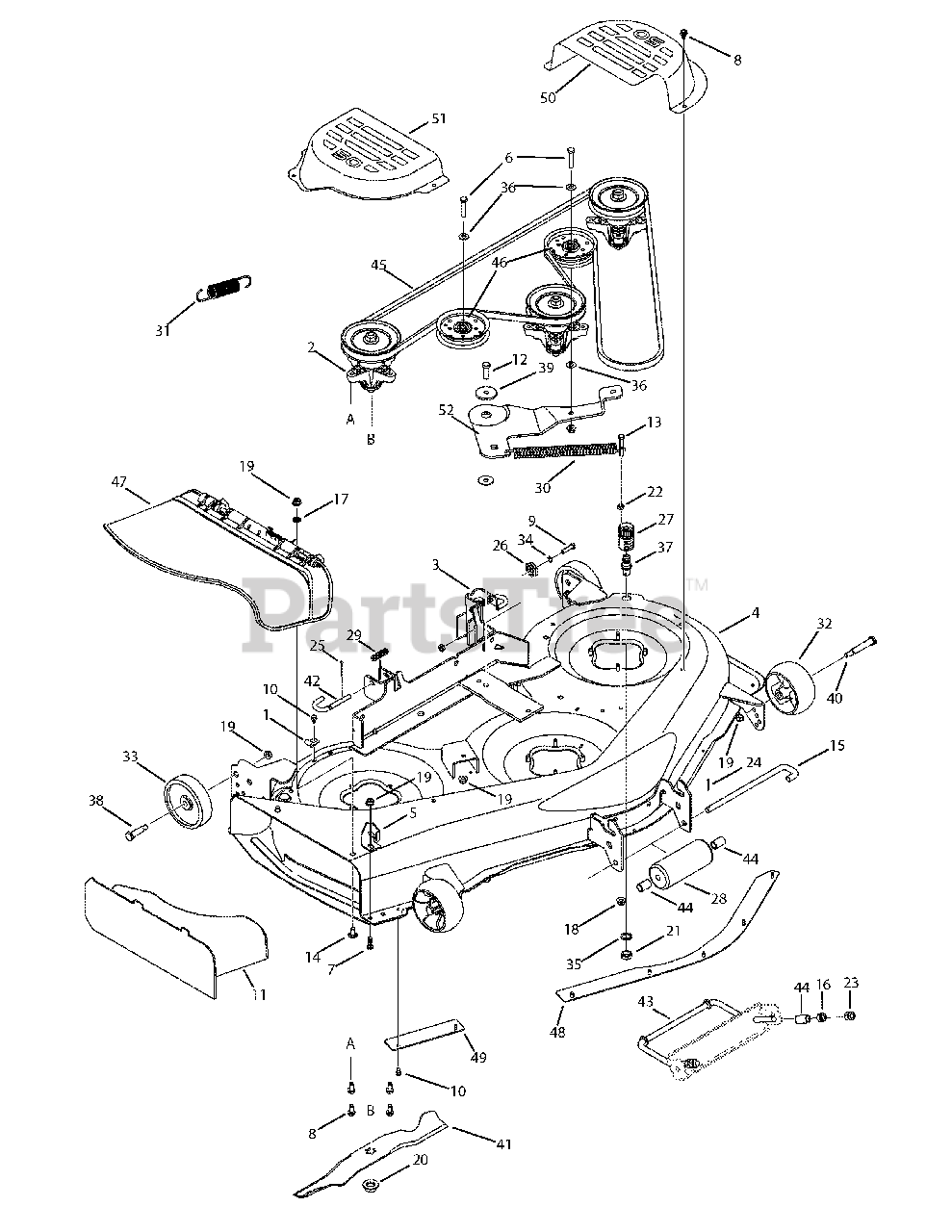

Mower Deck 50 Parts Diagram

  • Title

1

MTD 16606

Hook, Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

MTD 618-04125A

Spindle Assembly
(Superseded to 918-04125C)

Note: If Spindle Housing has grease fitting, please refer to part number 918-04126A

$133.99

$

In Stock, Qty 20+

0

2

MTD 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

2

MTD 736-0315

Flat Washer:.760 x 1.5

Note: Not shown

$6.99

$

In Stock, Qty 6

0

2

MTD 738-1010A

Spindle Shaft:5.75 LG.

Note: Not shown

$46.99

$

In Stock, only 2 left!

0

2

MTD 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

2

MTD 748-0160A

Spacer:.790 ID x 1.25

Note: Not shown

$6.99

$

In Stock, only 3 left!

0

2

MTD 750-1000

Spacer:.80 X 1.10 X 1.322 LG

Note: Not shown

$4.49

$

In Stock, Qty 7

0

2

MTD 750-1349A

Spacer:.79 x 1.82 x .5

Note: Not shown

$13.99

$

In Stock, only 3 left!

0

2

MTD 756-04216

Pulley:V TYP:5.39

Note: Not shown

$33.99

$

In Stock, only 1 left!

0

3

MTD 683-0254B

Hanger Bracket Assembly

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

4

MTD 683-04075B

Weldment, 50-inch Deck
(Superseded to 983-04075B)

Variations

MTD 683-04075B-0606

SHELL-50" DECK - MAJESTIC ORANGE (0606)

$1181.99

$

Usually ships in 3-6 days

0

MTD 683-04075B-0637

SHELL-DECK 50" - POWDER BLACK (0637)

$1181.99

$

Usually ships in 3-6 days

0

MTD 683-04075B-0638

SHELL-50" DECK - MTD/TROY-BILT RED (0638)

$1181.99

$

Usually ships in 3-6 days

0

MTD 683-04075B-0716

Mower Deck Shell, 50" - CUB YELLOW-99 (0716)

$1181.99

$

Usually ships in 3-6 days

0

MTD 683-04075B-4008

SHELL-50" DECK - WINE RED (4008)

$1181.99

$

Usually ships in 3-6 days

0

MTD 683-04075B-4021

SHELL-50" DECK - CUB YELLOW 2 (4021)

$1181.99

$

Usually ships in 3-6 days

0

MTD 683-04075B-0650

SHELL-DECK 50" - RED METALLIC (0650)

$1181.99

$

Usually ships in 3-6 days

0

MTD 683-04075B-0665

SHELL-50" DECK - YARDMAN GREEN (0665)

$1181.99

$

Usually ships in 3-6 days

0

MTD 683-04075B-0691

SHELL-DECK 50" - BLACK JACK (0691)

$1181.99

$

Usually ships in 3-6 days

0

$956.99

$

Usually ships in 3-6 days

0

5

MTD 703-3279

Chute Stop

Variations

MTD 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

6

MTD 710-0347

Screw, 3/8-16, 1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-04484

Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0599

Screw, 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

11

MTD 731-04651

Mulch Plug

$78.99

$

In Stock, only 3 left!

0

12

MTD 710-3005

Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-3103

Screw, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3178

Screw, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 711-1737

Roller Pin

$25.99

$

In Stock, Qty 6

0

16

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0229

Push Nut Retainer

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04063

Nut, Nylon Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0417A

Nut, Hex, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

MTD 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

22

MTD 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

24

MTD 714-0111

Pin, Cotter, 3/32 x 1.00

$4.99

$

In Stock, Qty 13

0

25

MTD 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

26

MTD 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 14

0

27

MTD 721-04041

Coupler, Hose
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

28

MTD 731-05679

Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

29

MTD 732-0306A

Spring, Compression, .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

30

MTD 732-0459C

Spring, Extension, .94 x 6.74

$18.99

$

In Stock, only 3 left!

0

31

MTD 732-0934

Spring, Lift Assist

$11.99

$

In Stock, only 1 left!

0

32

MTD 734-04155

Deck Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

33

MTD 734-0973

Deck Wheel, 5.0

$12.99

$

In Stock, Qty 20+

0

34

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

MTD 736-0225

Lock Washer, 5/8"

$4.49

$

In Stock, only 2 left!

0

36

MTD 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

37

MTD 737-04003C

Port, Water
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

38

MTD 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

39

MTD 738-04162A

Spacer, Shoulder, .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

40

MTD 738-3056

Shoulder Screw
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

41

MTD 742-04053C

Blade, 17.90
(Superseded to 942-04053C)

$28.99

$

In Stock, Qty 20+

0

42

MTD 747-1116

Rod, Deck Release .375 Dia.

$12.99

$

In Stock, Qty 6

0

43

MTD 747-1324

Rod, Deck Adjust

$58.99

$

In Stock, only 3 left!

0

44

MTD 750-0151

Spacer, .550 x .750 x 1.125
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

45

MTD 754-04164

Belt, V-Type
(Superseded to 954-04164)

$80.99

$

In Stock, Qty 5

0

46

MTD 756-04129

Pulley, Idler, 3.5"
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

47

MTD 631-04070A

Chute Assembly, Side Discharge
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

48

MTD 783-04414A

Deck Skirt, Center

Variations

MTD 783-04414A-4021

Center Skirt for 50" Deck, Yellow - CUB YELLOW 2 (4021)

$35.99

$

In Stock, only 2 left!

0

MTD 783-04414A-0637

Center Deck Skirt, 50" - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-0606

Center Skirt for 50" Deck, Orange - MAJESTIC ORANGE (0606)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-0716

Center Deck Skirt, 50" - CUB YELLOW-99 (0716)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-0665

SKIRT-CENTER 50" - YARDMAN GREEN (0665)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-0691

SKIRT-CENTER 50" - BLACK JACK (0691)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-4008

SKIRT-CENTER 50" - WINE RED (4008)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-4033

Center Skirt for 50" Deck, Flint - FLINT MICA (4033)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-4044

SKIRT-CENTER 50" - CRAFTSMAN RED (4044)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-4028

SKIRT-CENTER 50" - SEARS YELLOW (4028)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

49

MTD 783-04415

Deck Skirt, RH

Variations

MTD 783-04415-4021

Right Skirt for 50" Deck - CUB YELLOW 2 (4021)

$30.99

$

In Stock, only 1 left!

0

MTD 783-04415-0606

Right Skirt for 50" Deck - MAJESTIC ORANGE (0606)

$30.99

$

In Stock, Qty 5

0

MTD 783-04415-0637

Right Skirt for 50" Deck - POWDER BLACK (0637)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-0665

SKIRT-RH 50" - YARDMAN GREEN (0665)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-0691

SKIRT-RH 50" - BLACK JACK (0691)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-0716

Right Skirt for 50" Deck - CUB YELLOW-99 (0716)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-4008

SKIRT-RH 50" - WINE RED (4008)

$30.99

$

In Stock, only 1 left!

0

MTD 783-04415-4028

Right Skirt for 50" Deck - SEARS YELLOW (4028)

$30.99

$

Usually ships in 3-6 days

0

MTD 783-04415-4033

Right Skirt for 50" Deck - FLINT MICA (4033)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-4044

SKIRT-RH 50" - CRAFTSMAN RED (4044)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

50

MTD 783-05280

LH Belt Cover

Variations

MTD 783-05280-0606

COVER-BELT LH - MAJESTIC ORANGE (0606)

$76.99

$

Usually ships in 3-6 days

0

MTD 783-05280-0637

COVER-BELT LH - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

MTD 783-05280-0638

COVER-BELT LH - MTD/TROY-BILT RED (0638)

$76.99

$

Usually ships in 3-6 days

0

MTD 783-05280-0650

COVER-BELT LH - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

MTD 783-05280-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

MTD 783-05280-0691

COVER-BELT LH - BLACK JACK (0691)

$76.99

$

Usually ships in 3-6 days

0

MTD 783-05280-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

MTD 783-05280-4028

COVER-BELT LH - SEARS YELLOW (4028)

$88.99

$

Usually ships in 3-6 days

0

MTD 783-05280-4008

COVER-BELT LH - WINE RED (4008)

$

$

Not available

$71.99

$

Usually ships in 3-6 days

0

51

MTD 783-05281

RH Belt Cover

Variations

MTD 783-05281-0691

COVER BELT RH - BLACK JACK (0691)

$73.99

$

Usually ships in 3-6 days

0

MTD 783-05281-0606

COVER BELT RH - MAJESTIC ORANGE (0606)

$73.99

$

Usually ships in 3-6 days

0

MTD 783-05281-0637

COVER BELT RH - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

MTD 783-05281-0638

COVER BELT RH - MTD/TROY-BILT RED (0638)

$73.99

$

Usually ships in 3-6 days

0

MTD 783-05281-0650

COVER BELT RH - RED METALLIC (0650)

$73.99

$

Usually ships in 3-6 days

0

MTD 783-05281-0665

COVER BELT RH - YARDMAN GREEN (0665)

$63.99

$

Usually ships in 3-6 days

0

MTD 783-05281-0716

COVER BELT RH - CUB YELLOW-99 (0716)

$63.99

$

Usually ships in 3-6 days

0

MTD 783-05281-4008

COVER BELT RH - WINE RED (4008)

$73.99

$

Usually ships in 3-6 days

0

MTD 783-05281-4028

COVER BELT RH - SEARS YELLOW (4028)

$84.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

52

MTD 783-05303

Idler Bracket
(Superseded to 783-05303-0637)

Variations

MTD 783-05303-0637

Idler Bracket - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$61.99

$

In Stock, only 1 left!

0
