13AA625P004 - MTD Gold Lawn Tractor (2008) (Ace Hardware) Hood, Dash, Grille & Bumper Parts Diagram

Gold Lawn Tractor

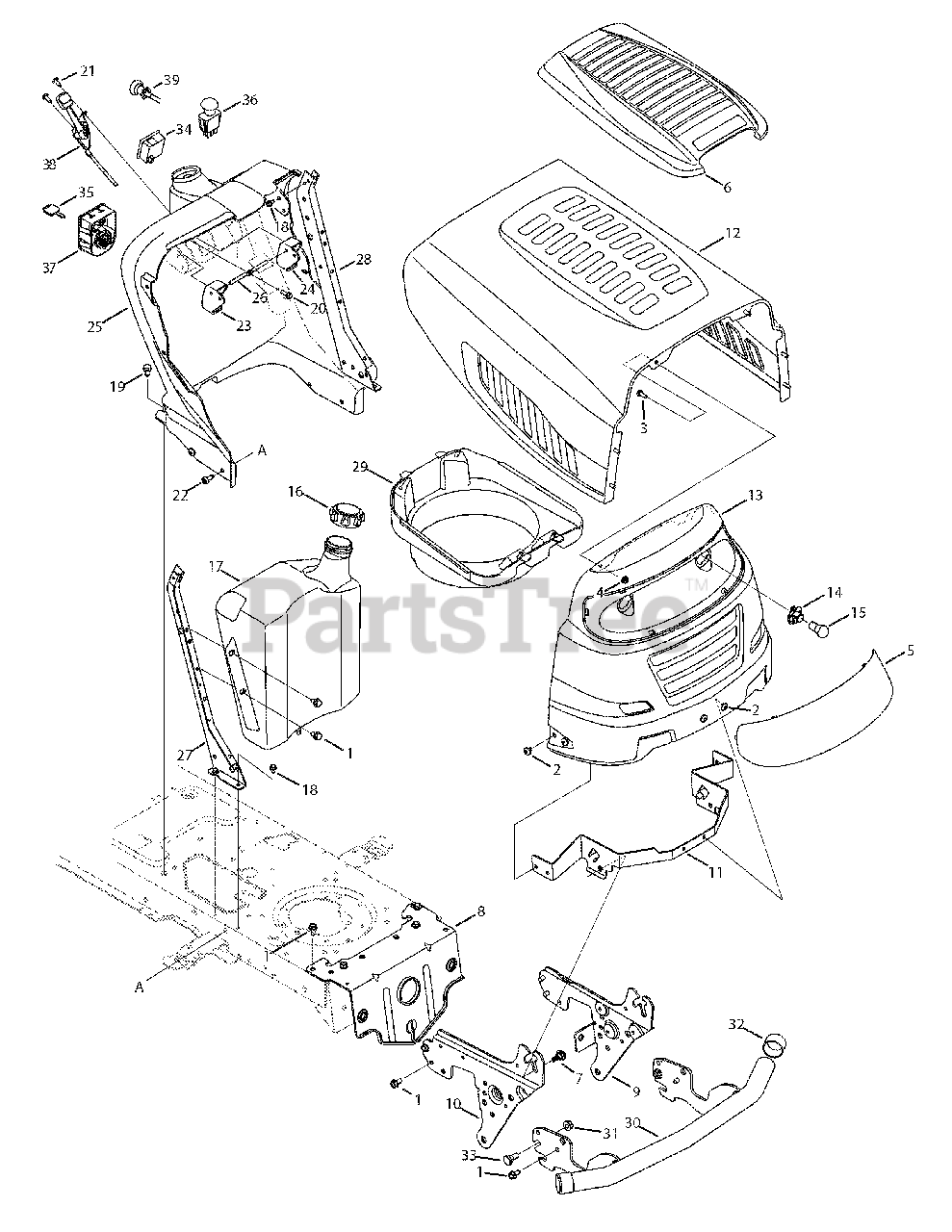

Hood, Dash, Grille & Bumper Parts Diagram

  • Title

1

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

Screw, 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

Hex Cap Screw, 1/4-20 x.62

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-04949A

Headlight Lens

$26.99

$

Usually ships in 3-6 days

0

6

MTD 731-05522A

Hood Grille, 5 Style

$49.99

$

Usually ships in 3-6 days

0

7

MTD 738-04091A

Shoulder Screw,.43 x.29

$3.99

$

In Stock, Qty 20+

0

8

MTD 783-05326

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

Variations

MTD 783-05326-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

9

MTD 783-05417

Pivot Support Bracket - LH

Variations

MTD 783-05417-0637

Hood Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 783-05418

Pivot Support Bracket - RH

Variations

MTD 783-05418-0637

Hood Pivot Bracket, RH - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 783-05454

Hood Pivot Bracket
(Superseded to 783-05454-0637)

Variations

MTD 783-05454-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

12

MTD 783-05683

Hood, 5 Style

Variations

MTD 783-05683-0629

HOOD-5 STYLE - SILVER FLAKE (0629)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0638

HOOD-5 STYLE - MTD/TROY-BILT RED (0638)

$171.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0662

HOOD-5 STYLE - OYSTER GRAY (0662)

$171.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0674

HOOD-5 STYLE - YARDMAN YELLOW (0674)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0691

HOOD-5 STYLE - BLACK JACK (0691)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0709

HOOD-5 STYLE - MASTERCRAFT GREEN (0709)

$138.99

$

Usually ships in 3-6 days

0

$138.99

$

Usually ships in 3-6 days

0

13

MTD 783-05685

Grille, 1 Style

Variations

MTD 783-05685-0662

Grille 1 Style - OYSTER GRAY (0662)

$140.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0638

Grille, 1 Style - MTD/TROY-BILT RED (0638)

$140.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0709

Grille, 1 Style - MASTERCRAFT GREEN (0709)

$130.99

$

In Stock, only 1 left!

0

MTD 783-05685-0629

GRILLE-1 STYLE LT- - SILVER FLAKE (0629)

$130.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0668

GRILLE-1 STYLE LT- - MOSS GREEN (0668)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0674

GRILLE-1 STYLE LT- - YARDMAN YELLOW (0674)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0691

GRILLE-1 STYLE LT- - BLACK JACK (0691)

$130.99

$

In Stock, only 1 left!

0

MTD 783-05685-0729

GRILLE-1 STYLE LT- - STORM GRAY (0729)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685-4015

GRILLE-1 STYLE LT- - FIRE RED (4015)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685-4043

GRILLE-1 STYLE LT- - CRAFTSMAN METALLIC GRAY (4043)

$121.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

14

MTD 725-1649

Headlight Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

16

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

17

MTD 751-0658E

Fuel Tank, Three Gallon

$115.99

$

In Stock, only 3 left!

0

18

MTD 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0607

Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

20

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, only 4 left!

0

21

MTD 710-1017

Screw, 1/4-14 x.625

$8.49

$

In Stock, Qty 9

0

22

MTD 710-1611B

Screw, 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

23

MTD 731-04215

Cruise Control Button
(Superseded to 931-04215)

$

$

Not available

24

MTD 731-04217

Parking Brake Button
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

25

MTD 731-06169

Dash Panel

$

$

Not available

26

MTD 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

27

MTD 783-04285F

RH Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

MTD 783-04285F-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 783-04323F

LH Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

MTD 783-04323F-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

29

MTD 731-05165A

Plenum

$47.99

$

Usually ships in 3-6 days

0

30

MTD 683-04219A

Bumper Assembly
(Superseded to 683-04219B-0637)

Variations

MTD 683-04219A-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

31

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

32

MTD 731-05674

Cap

$5.49

$

In Stock, Qty 20+

0

33

MTD 738-0143

Shoulder Bolt, 3/8-16

$4.49

$

In Stock, Qty 20+

0

34

MTD 725-04036C

Systems Ind. Monitor w/Hr. Mtr.
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

35

MTD 725-1745A

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

35

MTD 725-1744A

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

Note: Not Shown

$17.99

$

In Stock, Qty 20+

0

36

MTD 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

37

MTD 725-04227B

Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

38

MTD 746-04417

Throttle Control/Cable
(Superseded to 946-04417)

$54.99

$

Usually ships in 3-6 days

0

39

MTD 746-1085A

Choke Control Cable
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

MTD 629-04083A

Headlight Wire Harness
(Superseded to 929-04083B)

Note: Not Shown

$39.99

$

Usually ships in 3-6 days

0

MTD 725-04404A

Wire Harness
(Superseded to 925-04404A)

Note: Not Shown(w/ Hr. Mtr. & Elctr. PTO)

$240.99

$

Usually ships in 3-6 days

0

MTD 777X41984

Headlight Reflective Insert

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0
