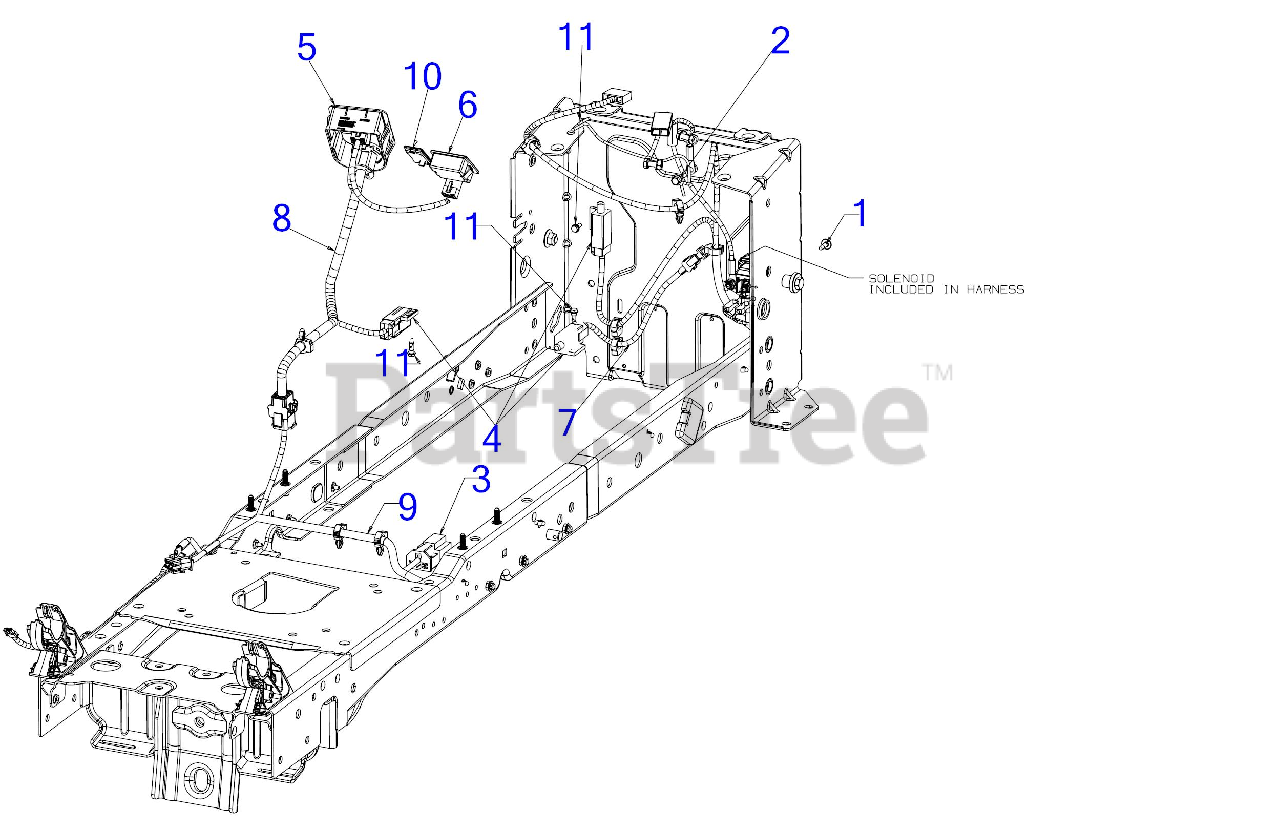

13A8A1BS066 - Troy-Bilt Super Bronco 42" Lawn Tractor, Hydro Drive (2018) Electrical Parts Diagram

Super Bronco 42" Lawn Tractor, Hydro Drive

Electrical Parts Diagram

  • Title

1

Troy-Bilt 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 13

0

2

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 725-04232

3 POLE SWITCH ( NC-NO-NO)

$49.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 925-06119B

KEY SWITCH MODULE
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 925-06170A

HOUR/SVC METER
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 925-06167

REVERSE HARNESS

$13.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 925-06261

DASH HARNESS

$47.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 925-06780

MAIN HARNESS M-PTO/RMC/HRMTR

$163.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 925-1648

RELAY
(Superseded to 925-1648A)

Note: (Not Shown)

$47.99

$

In Stock, Qty 8

0

10

Troy-Bilt 731-10634

DASH PLUG

$5.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0

Troy-Bilt 725-06153

SOLENOID
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 9

0
