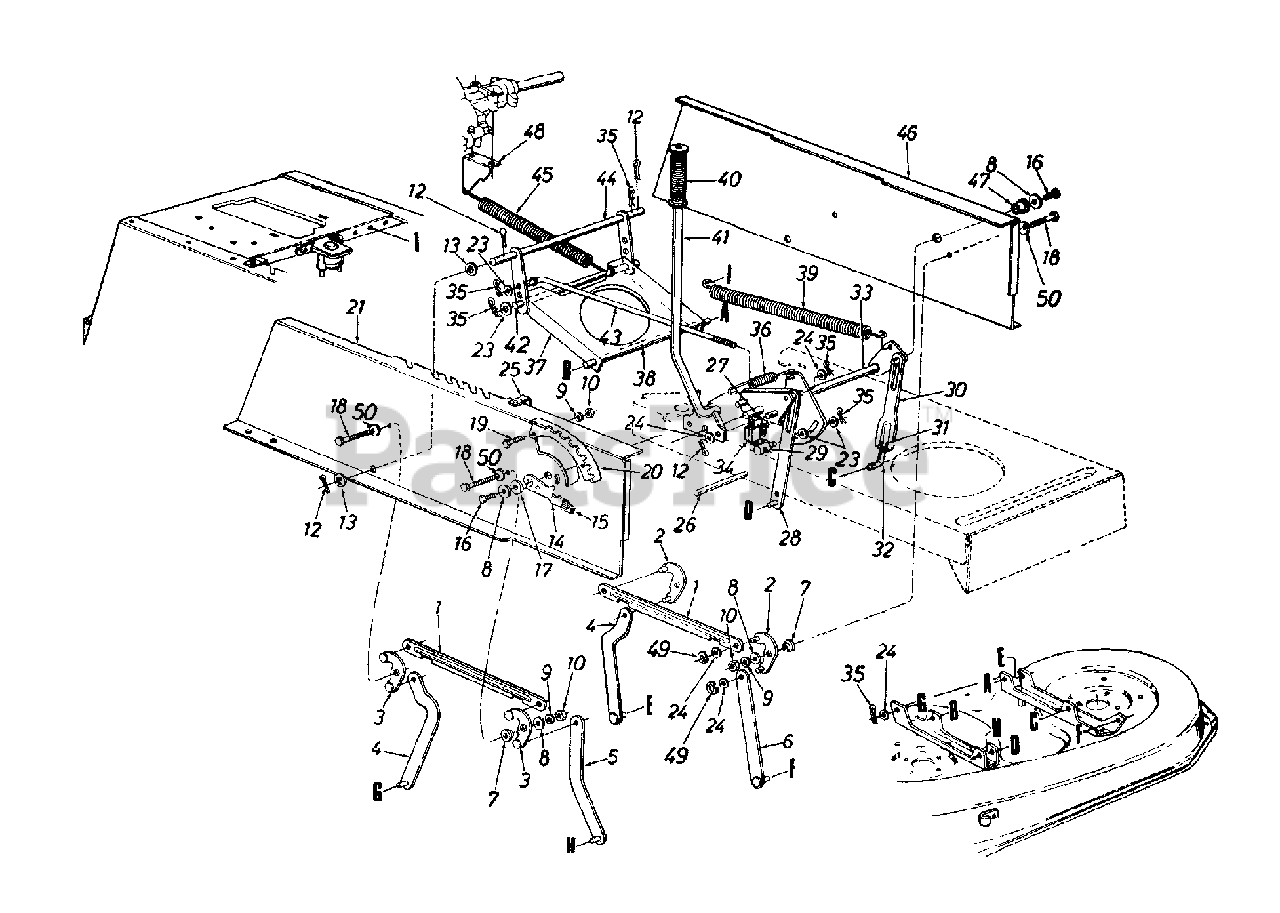

13A8679G013 - Yard Machines Lawn Tractor (2000) (Costco) Deck Lift & Hanger Assembly Parts Diagram

Lawn Tractor

Deck Lift & Hanger Assembly Parts Diagram

  • Title

1

MTD 783-0103

Connecting Rod
(Superseded to 783-0103-0637)

Variations

MTD 783-0103-0637

ROD-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 683-0029A

Pivot Link Ass'y. - L.H.
(Superseded to 983-0029A-0637)

$13.99

$

In Stock, only 3 left!

0

3

MTD 683-0028A

Pivot Link Ass'y. - R.H.

$

$

Not available

4

MTD 17710

Deck Hanger Link Ass'y.

Variations

MTD 17710-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 14800A

Deck Hanger Link Ass'y.
(Superseded to 14800A-0637)

Variations

MTD 14800A-0637

HANGER-DECK LINK - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 14804A

Deck Hanger Link Ass'y.

$

$

Not available

7

MTD 748-0331

Shld. Spacer .318" I.D.
(Superseded to 948-0331)

$

$

Not available

8

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

9

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3004A

Flange Lock Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0256

Fl-Wash. .635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

14

MTD 683-0003

Hgt Adj. Stop Lever Ass'y.
(Superseded to 983-0003)

Note: (Incl. #15); Optional

$

$

Not available

15

MTD 08540

Knob

Note: Optional

$

$

Not available

16

MTD 710-0604A

Hex Wash. TT-Tap Scr.5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

17

MTD 748-0176

Flange Brg. .63" I.D.

Note: Optional

$9.99

$

In Stock, only 1 left!

0

18

MTD 710-1238

Hex Wash. Hd. Scr. 5/16-18 x .875" Lg.
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 17730

Index Brkt.
(Superseded to 783-04113P)

$25.99

$

In Stock, only 1 left!

0

21

MTD 783-0042B

Upper Frame-R.H.
(Superseded to 783-0042D)

Variations

MTD 783-0042B-0480

FRAME-UPPER RH SID - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0042B-0483

FRAME-UPPER RH SID - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0042B-0629

FRAME-UPPER RH SID - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0042B-0637

FRAME-UPPER RH SID - POWDER BLACK (0637)

$

$

Not available

MTD 783-0042B-0638

FRAME-UPPER RH SID - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0042B-0648

FRAME-UPPER RH SID - TECH GRAY (0648)

$

$

Not available

MTD 783-0042B-0650

FRAME-UPPER RH SID - RED METALLIC (0650)

$

$

Not available

MTD 783-0042B-0665

FRAME-UPPER RH SID - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0042B-0691

No Longer Available FRAME-UPPE - BLACK JACK (0691)

$

$

Not available

$

$

23

MTD 736-0267

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

25

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

26

MTD 738-0526

Running Board Rod

$

$

Not available

27

MTD 710-3007

Hex Wash. Hd. Tap Scr.

$4.49

$

In Stock, Qty 20+

0

28

MTD 14802A

Link Deck Lift Ass'y.
(Superseded to 14802A-0637)

Variations

MTD 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 711-0723A

Adj. Ferrule 3/8-24 Thd.
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

30

MTD 17712

Adj. Deck Lift Link
(Superseded to 17712-0637)

Variations

MTD 17712-0637

Deck Adjust Link - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

31

MTD 712-3066

Hex Nut 1/2-20 Thd. (Gr. 5)
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

32

MTD 711-0841

Lift Link Adjuster
(Superseded to 911-0841)

$

$

Not available

33

MTD 17637A

Lift Shaft Ass'y.

Variations

MTD 17637A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 725-1657A

Safety Switch (Deck)
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

35

MTD 714-0145

Inter. Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

36

MTD 732-0637

Extension Spring
(Superseded to 932-0637)

$

$

Not available

37

MTD 17636C

Stabilizer Bracket
(Superseded to 17636D-0637)

Variations

MTD 17636C-0637

Stabilizer Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 738-0670A

Shaft 1/2" Dia. x 10.28" Lg.

$

$

Not available

39

MTD 732-0638

Extension Spring

$

$

Not available

40

MTD 720-0233

Grip (Lift Handle)
(Superseded to 920-0233)

$

$

Not available

41

MTD 97675A

Deck Lift Handle Ass'y.

Variations

MTD 97675A-0637

No Longer Available HANDLE-ASM - POWDER BLACK (0637)

$

$

Not available

MTD 97675A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 97675A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 97675A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 97675A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

MTD 738-0669

Shaft 3/8" Dia. x 9.34" Lg.

$

$

Not available

43

MTD 747-0598

Disengagement Rod

$13.99

$

Usually ships in 3-6 days

0

44

MTD 97624

Stabilizer Shaft Ass'y.
(Superseded to 97624-0637)

Variations

MTD 97624-0637

SHAFT ASSY-STAB - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

46

MTD 783-0043

Upper Frame-L.H.
(Superseded to 783-0043B)

Variations

MTD 783-0043-0648

FRAME-UPPER LH - TECH GRAY (0648)

$

$

Not available

MTD 783-0043-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0043-0499

FRAME-UPPER LH - CUB BEIGE (0499)

$

$

Not available

MTD 783-0043-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0043-0629

FRAME-UPPER LH - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0043-0637

FRAME-UPPER LH - POWDER BLACK (0637)

$

$

Not available

MTD 783-0043-0638

FRAME-UPPER LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0043-0650

FRAME-UPPER LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0043-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0043-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0043-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0043-0689

No Longer Available FRAME-UPPE - POLO GREEN (0689)

$

$

Not available

$

$

47

MTD 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

48

MTD 17128A

Spring Retainer Brkt.
(Superseded to 17128A-0637)

Variations

MTD 17128A-0637

Retainer Spring Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

49

MTD 716-0104

"E"-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

50

MTD 736-0425

Bell-Wash. .325" I.D.

$4.99

$

In Stock, Qty 13

0
