13A7668H352 - Yard Machines Lawn Tractor (2003) (Walmart) Hood Style 8 Parts Diagram

Lawn Tractor

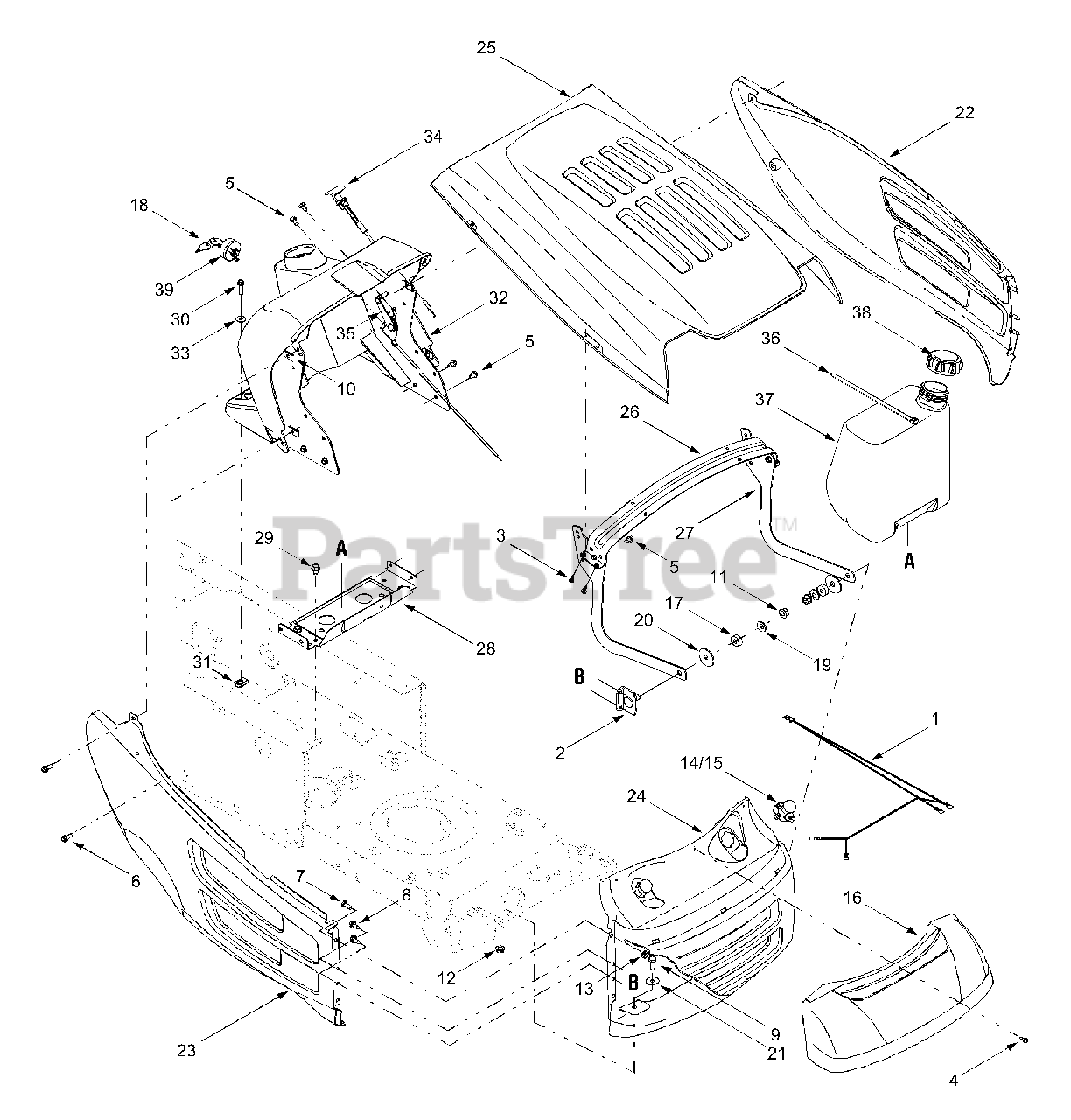

Hood Style 8 Parts Diagram

  • Title

1

MTD 629-0469B

Headlamp Harness Assembly
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

2

MTD 683-0195

Bracket Assembly
(Superseded to 683-0195-0637)

Variations

MTD 683-0195-0637

BRACKET ASM - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

3

MTD 710-0351

Screw, #10-16 x .50

$4.49

$

Usually ships in 3-6 days

0

4

MTD 710-0456

Screw, #10-16 x .50

$

$

Not available

5

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0751

Hex Cap Screw:1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0896

Hex Index Washer Screw, 1/4-14 x .0625

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0185

U-type Speed Nut, 1/4-20

$

$

Not available

11

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

14

MTD 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

15

MTD 725-1649

Headlamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

16

MTD 731-1854A

Headlight Lens (8-style)
(Superseded to 931-1854A)

$82.99

$

In Stock, Qty 5

0

17

MTD 735-0126

Rubber Washer, .87 x .33
(Superseded to 735-0126A)

$

$

Not available

18

MTD 725-0201

Keys (pair)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

19

MTD 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-3039

Flat Washer, .406 x 1.5 x 11 gauge

$5.49

$

In Stock, Qty 7

0

21

MTD 736-3078

Flat Washer, .344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

22

MTD 783-0475B

LH Side Panel
(Superseded to 783-0475C)

Variations

MTD 783-0475B-0483

PANEL-SIDE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0475B-0499

PANEL-SIDE 8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0475B-0629

PANEL-SIDE 8 STYLE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0475B-0638

PANEL-SIDE 8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0475B-0640

PANEL-SIDE 8 STYLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0475B-0662

PANEL-SIDE 8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0475B-0665

PANEL-SIDE 8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0475B-0667

PANEL-SIDE 8 STYLE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0475B-0691

PANEL-SIDE 8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0475B-0709

PANEL-SIDE 8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0475B-0724

PANEL-SIDE 8 STYLE - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0475B-0732

PANEL-SIDE 8 STYLE - SPARKLING GRAY (0732)

$

$

Not available

$

$

23

MTD 783-0476C

RH Side Panel

Variations

MTD 783-0476C-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0476C-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0476C-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0476C-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0476C-0640

No Longer Available - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0476C-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0476C-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0476C-0667

No Longer Available PANEL-SIDE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0476C-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0476C-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0476C-0724

No Longer Available PANEL-SIDE - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0476C-0732

No Longer Available - SPARKLING GRAY (0732)

$

$

Not available

$

$

24

MTD 783-0477A

Grille

Variations

MTD 783-0477A-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0477A-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0477A-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0477A-0640

No Longer Available GRILLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0477A-0662

No Longer Available GRILLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0477A-0665

No Longer Available GRILLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0477A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0477A-0691

No Longer Available GRILLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0477A-0709

No Longer Available GRILLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0477A-0724

No Longer Available GRILLE - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0477A-0732

No Longer Available GRILLE - SPARKLING GRAY (0732)

$

$

Not available

$

$

25

MTD 783-0478B

Hood
(Superseded to 983-0478B)

Variations

MTD 783-0478B-0499

HOOD-8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0478B-0629

No Longer Available HOOD-8 STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0478B-0638

HOOD-8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0478B-0640

HOOD-8 STYLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0478B-0662

HOOD-8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0478B-0665

HOOD-8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0478B-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0478B-0691

HOOD-8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0478B-0709

HOOD-8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0478B-0724

No Longer Available HOOD-8 STY - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0478B-0732

HOOD-8 STYLE - SPARKLING GRAY (0732)

$

$

Not available

$295.99

$

Usually ships in 3-6 days

0

26

MTD 783-0553A

Hood Support Bracket
(Superseded to 783-0553A-0637)

Variations

MTD 783-0553A-0637

BRACKET-HOOD SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 783-1495

Hood Side Bracket
(Superseded to 783-1495-0637)

Variations

MTD 783-1495-0637

Hood Side Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 17632D

Battery Support Bracket

Variations

MTD 17632D-0637

Battery Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 710-0607

Self-tapping Screw, 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

30

MTD 710-0788

Self-tapping Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

31

MTD 726-3054

U-type Speed Nut, 1/4-20

$4.99

$

Usually ships in 3-6 days

0

32

MTD 731-04180

Dash Panel (models w/o choke knob)
(Superseded to 931-04180A)

$

$

Not available

MTD 731-04181

Dash Panel (models w/ choke knob)

$

$

Currently unavailable

33

MTD 736-3090

Flat Washer, .260 x .720 x .060

$6.99

$

In Stock, Qty 11

0

34

MTD 746-0614A

Choke Control, 38"

$24.99

$

In Stock, only 1 left!

0

MTD 746-0616A

Choke Control, 23"
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

35

MTD 746-04020

Throttle / Choke Control, 18.5"
(Superseded to 746-04020A)

$39.99

$

In Stock, only 1 left!

0

MTD 746-04023A

Throttle Control, 35.5"
(Superseded to 946-04023B)

$43.99

$

In Stock, only 1 left!

0

MTD 746-04030

Throttle Control, 18.5"

$

$

Not available

36

MTD 726-0209

Cable Tie, 30.66
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

37

MTD 751-0555B

Fuel Tank, 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

38

MTD 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 1 left!

0

39

MTD 725-1396

Ignition Switch, 6-pin
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0
