13A7668H352 - Yard Machines Lawn Tractor (2003) (Walmart) Engine Accessories Parts Diagram

Lawn Tractor

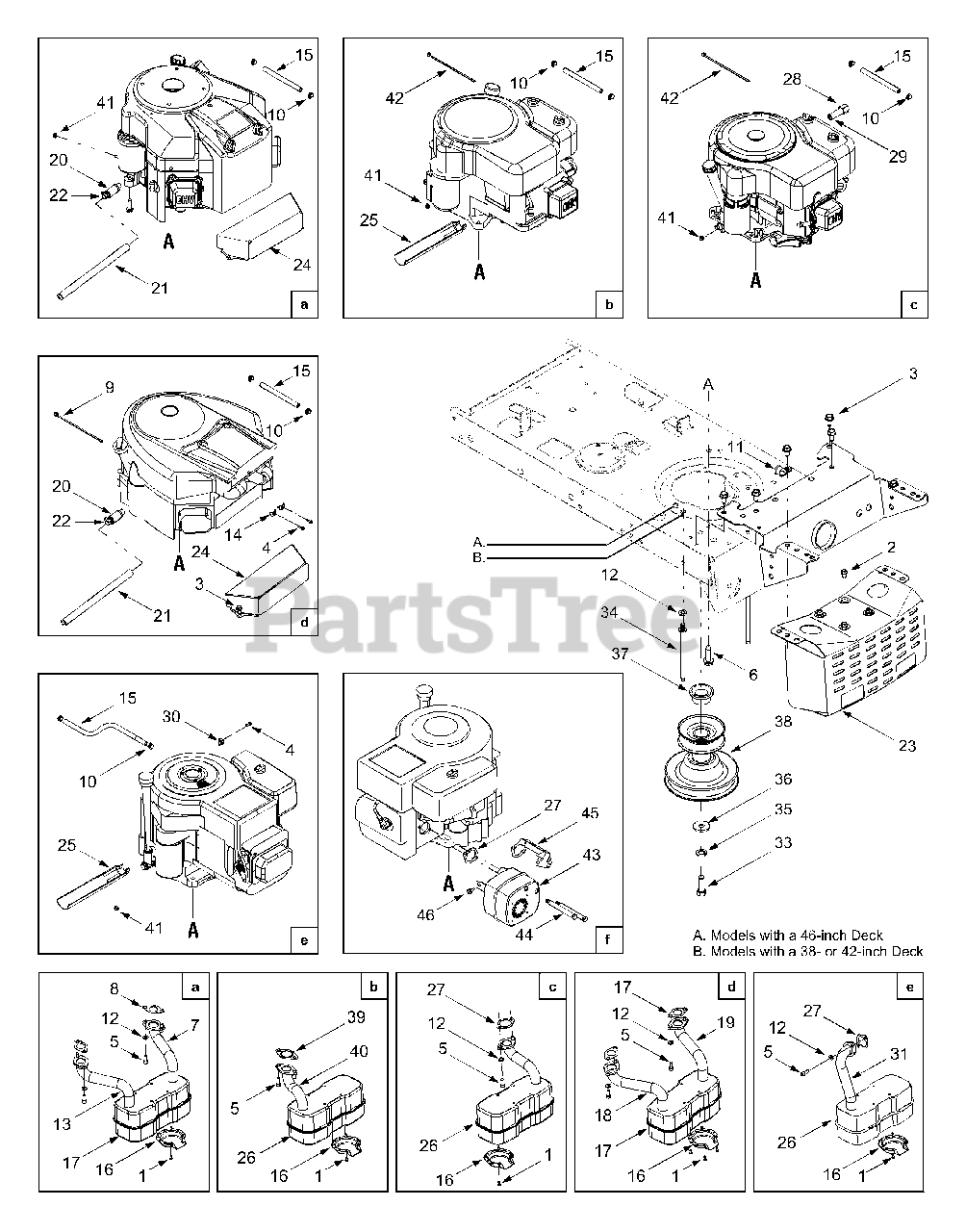

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0148

Screw, #8-32 x .375

$4.49

$

In Stock, Qty 16

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Cap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

7

MTD 751-0813

LH Exhaust Pipe
(Superseded to 751-0813A)

$

$

Not available

8

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

MTD 726-0154

Push-mount Cable Tie, 7.5
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

10

MTD 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 18

0

11

MTD 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0

12

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 751-0814

RH Exhaust Pipe
(Superseded to 751-0814A)

$

$

Not available

14

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

15

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

16

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

17

MTD 751-0616

Muffler, Twin Inlet
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

18

MTD 751-0650

RH Exhaust Pipe
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

19

MTD 751-0651

LH Exhaust Pipe
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

20

MTD 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

21

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

22

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, only 4 left!

0

23

MTD 783-0615B

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

24

MTD 783-0625C

Engine Heat Shield

$111.99

$

Usually ships in 3-6 days

0

25

MTD 731-1682A

Oil Drain Sleeve

$7.99

$

In Stock, Qty 6

0

26

MTD 751-0617

Muffer, Single Inlet
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

27

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

28

MTD 737-0143

Oil Drain Cap, 3/8-18

$

$

Not available

29

MTD 737-0199

Oil Drain Pipe, 3/8-16 x 2.0
(Superseded to 937-0199)

$

$

Not available

30

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

31

MTD 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

?32

MTD 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

33

MTD 710-3029

Hex Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 12

0

34

MTD 711-1044

Belt Keeper Pin, 5/16 x 4.75
(Superseded to 711-1044A)

$8.99

$

In Stock, Qty 10

0

35

MTD 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

36

MTD 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

37

MTD 750-0956

Spacer, 1.0 x 1.4 x .825

$19.99

$

In Stock, only 2 left!

0

38

MTD 756-04023

Engine Pulley, 3.12 x 5.56
(Superseded to 956-04023)

$120.99

$

In Stock, Qty 7

0

39

MTD 721-0348

Exhaust Gasket
(Superseded to TC-36365)

$3.49

$

In Stock, only 2 left!

0

40

MTD 751-0620

Exhaust Pipe
(Superseded to 751-0620A)

$81.99

$

In Stock, only 2 left!

0

41

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

42

MTD 725-0157

Cable Tie, 7.4"

$3.99

$

In Stock, only 2 left!

0

43

MTD 751-0880

Square Muffler

$

$

Not available

44

MTD 751-0881

Shoulder Screw, .43 x 3.57
(Superseded to BS-691416)

$11.99

$

In Stock, Qty 14

0

45

MTD 751-0882

Shield

$

$

Not available

46

MTD 751-0883

Self-tapping Screw, 1/4-20 x .63

$

$

Not available
