13A7668H352 - Yard Machines Lawn Tractor (2003) (Walmart) Axle Front, Steering Parts Diagram

Lawn Tractor

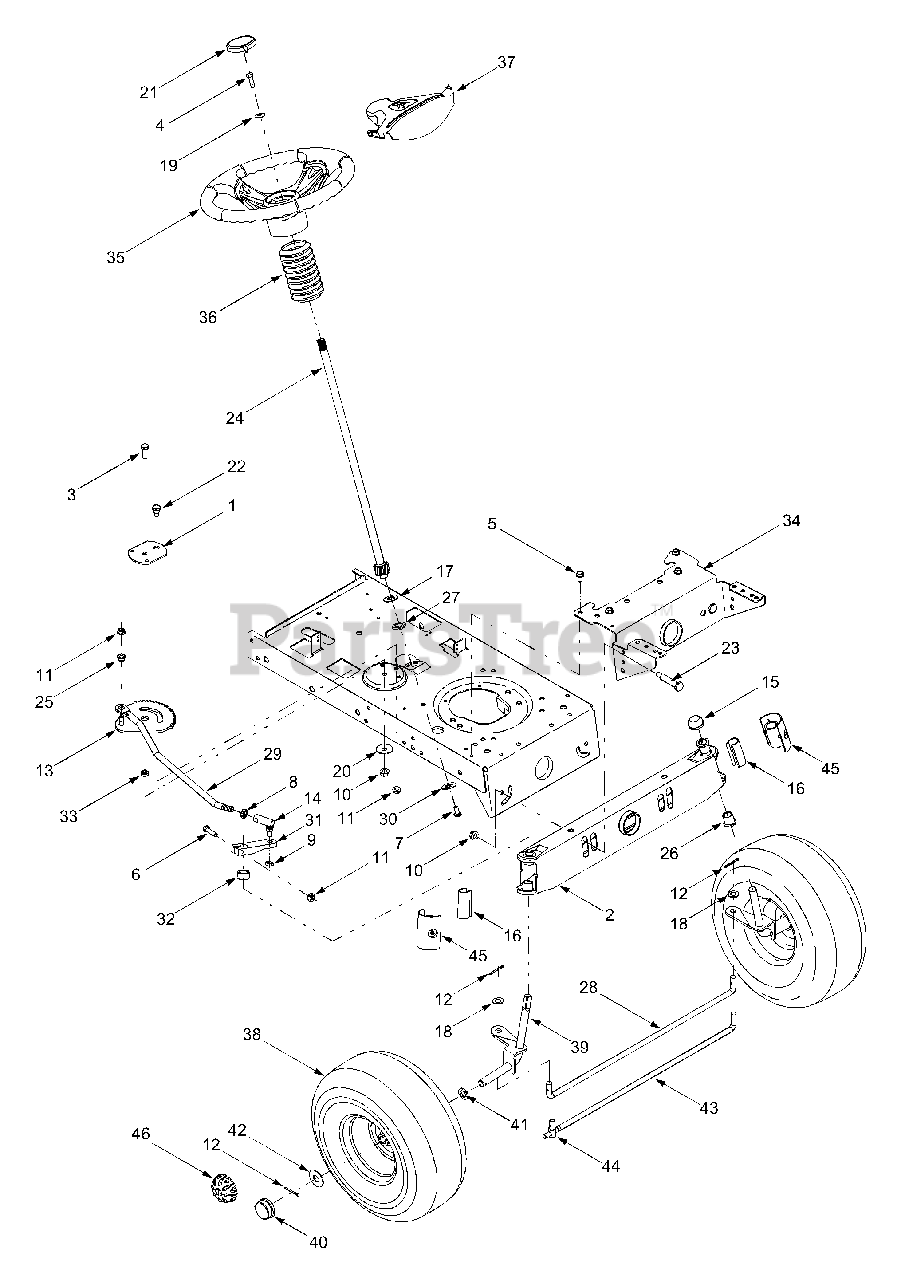

Axle Front, Steering Parts Diagram

  • Title

1

MTD 17198A

Retainer Gear Segment Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, only 3 left!

0

2

MTD 683-0002A

Pivot Bar, .625
(Superseded to 683-0002B-0637)

Variations

MTD 683-0002A-0637

Pivot Bar, Steel - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0643

Hex Cap Screw, 5/16-18 x 1.0

$6.99

$

In Stock, Qty 5

0

5

MTD 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

7

MTD 710-1309

Machine Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0262

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 12

0

10

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

13

MTD 717-1757

Stearing Segment Gear
(Superseded to 717-1757A)

$53.99

$

In Stock, only 1 left!

0

14

MTD 723-0448A

Ball Joint, 7/16 -20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

15

MTD 726-0214

Push Cap, .625

$10.99

$

Usually ships in 3-6 days

0

16

MTD 731-04057A

Axle End Cap, Standard

$5.49

$

In Stock, Qty 8

0

17

MTD 736-0187

Flat Washer, .64 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0226

Flat Washer, .474 x .879 x .064
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

19

MTD 736-0242

Bell Washer, .34 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0356

Bell Washer, .391 x .380 x .062
(Superseded to 936-0356)

$

$

Not available

21

MTD 731-04039

Steering Wheel Cap, Small

$8.49

$

In Stock, only 1 left!

0

MTD 731-04040

Steering Wheel Cap w/ Sprig, Small

$9.99

$

In Stock, only 1 left!

0

22

MTD 738-0141

Shoulder Screw, .435 x .350, 5/16-18
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

23

MTD 738-0527

Shoulder Screw, .498 x 2.045

$8.49

$

In Stock, Qty 5

0

24

MTD 738-0919

Steering Shaft, 21.86
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

25

MTD 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

26

MTD 741-0487A

Flange Buching, .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

27

MTD 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

28

MTD 747-04008

Tie Rod, Non-adjustable

$21.99

$

In Stock, only 1 left!

0

29

MTD 747-1268A

Steering Drag Link, 7/16-20
(Superseded to 747-1268B)

$

$

Not available

30

MTD 748-0389

Cap, 1.25 x .16
(Superseded to 948-0389)

$5.49

$

In Stock, Qty 20+

0

31

MTD 748-04014A

Steering Arm
(Superseded to 948-04014B)

$26.99

$

Usually ships in 3-6 days

0

32

MTD 748-04020

Spacer, 1.0 x .645 x .56
(Superseded to 948-04020)

$7.49

$

In Stock, only 1 left!

0

33

MTD 750-0535

Spacer, .380 x .625 x .21
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

34

MTD 783-0041A

Pivot Bar Bracket
(Superseded to 783-0041C)

Variations

MTD 783-0041A-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

MTD 783-0041A-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 783-0041A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0041A-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0041A-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0041A-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

35

MTD 631-04028

Steering Wheel, Three Spoke

$69.99

$

In Stock, only 1 left!

0

36

MTD 731-0954

Steering Bellow, 4.75"
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

37

MTD 731-04064

Steering Wheel Cap, Large
(Superseded to 731-04064A)

$14.99

$

Usually ships in 3-6 days

0

MTD 731-04065

Steering Wheel Cap w/ Sprig, Large

$

$

Not available

38

MTD 634-0056A

Round Shoulder Wheel Ass'y Complete
(Superseded to 634-0056B-0911)

Variations

MTD 634-0056A-0911

Tire and Wheel Assembly - Carlisle Gray (0911)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0912

Tire and Wheel Assembly - Dico Gray (0912)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0914

Tire and Wheel Assembly - Cheng Gray (0914)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0916

Tire and Wheel Assembly - Kenda Gray (0916)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0941

Tire and Wheel Assembly - Carlisle Yellow (0941)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0981

Tire and Wheel Assembly - Carlisle Green (0981)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0931

WHEEL ASM-W/TIRE - Carlisle Beige (0931)

$202.99

$

In Stock, only 1 left!

0

$249.99

$

In Stock, only 3 left!

0

MTD 634-0105A

Square Shoulder Wheel Ass'y Complete
(Superseded to 634-0105B)

Variations

MTD 634-0105A-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0912

Wheel Assembly, Gray - Dico Gray (0912)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

MTD 634-0105A-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0105A-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

MTD 634-0115

Square Shoulder Wheel Ass'y Complete

Variations

MTD 634-0115-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0115-0916

No Longer Available WHEEL ASM - Kenda Gray (0916)

$

$

Not available

MTD 634-0115-0914

No Longer Available -0911 WHE - Cheng Gray (0914)

$

$

Not available

MTD 634-0115-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

$

$

39

MTD 683-04016

RH Axle Assembly
(Superseded to 683-04016-0637)

Variations

MTD 683-04016-0637

Front Axle Assembly, RH Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

$48.99

$

In Stock, only 1 left!

0

MTD 683-04015

LH Axle Assembly

Variations

MTD 683-04015-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$107.99

$

In Stock, only 1 left!

0

$107.99

$

In Stock, only 1 left!

0

40

MTD 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

41

MTD 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 14

0

42

MTD 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 9

0

43

MTD 747-04057

Tie Rod, Adjustable

$

$

Not available

44

MTD 711-04059

Ferrule, 3/8-24 x .437 Dia
(Superseded to 911-04059)

$11.99

$

Usually ships in 3-6 days

0

45

MTD 731-04058

Axle End Cap, w/ Fitting

$4.99

$

In Stock, Qty 11

0

46

MTD 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0
