13A747GF062 - Yard Machines Lawn Tractor (1997) (Lowes) Steering & Axle Assembly & Wheels, Front Parts Diagram

Lawn Tractor

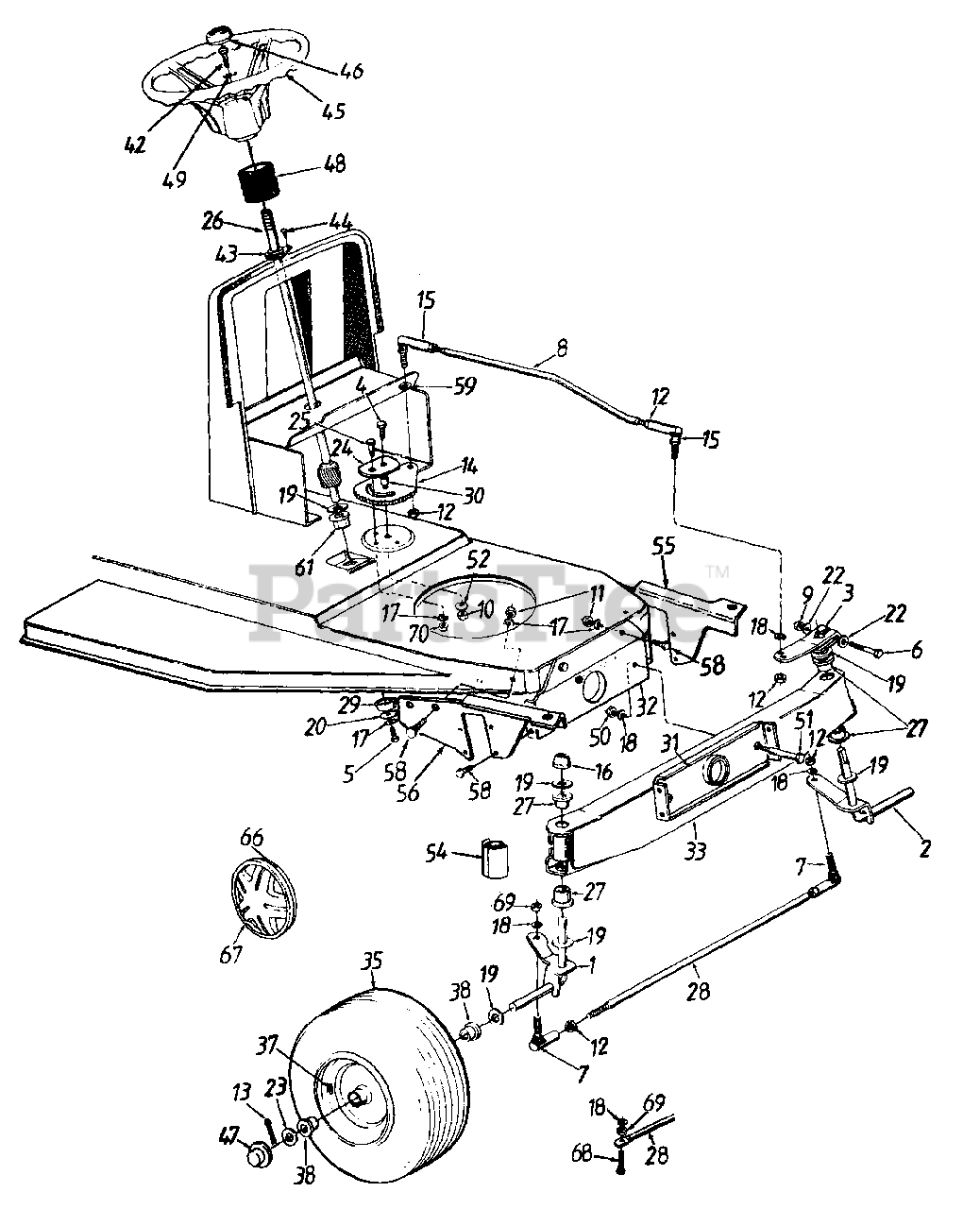

Steering & Axle Assembly & Wheels, Front Parts Diagram

  • Title

1

MTD 17584A

Front Axle Ass'y. - R.H.
(Superseded to 97584A-0637)

$76.99

$

In Stock, only 4 left!

0

2

MTD 17585A

Front Axle Ass'y. - L.H.
(Superseded to 17585)

$

$

Not available

3

MTD 683-0055

Steering Arm
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

4

MTD 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size given here.

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0538

Hex Bolt 5/16-18 x .62" (Spec.)

$4.49

$

In Stock, Qty 9

0

6

MTD 710-0772

Hex Bolt 5/16-24 x 2" Lg.

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size given here.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

MTD 723-0448

Ball Joint 7/16-20 Thd.
(Superseded to 923-0448A)

Note: (Model 450)

$24.99

$

In Stock, Qty 20+

0

8

MTD 711-1117A

Steering Drag Link

$

$

Not available

9

MTD 712-3057

Hex Lock Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

10

MTD 712-0214

Hex Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

11

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0262

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

13

MTD 714-0470

Cotter Pin 1/8 Dia.

$4.49

$

In Stock, Qty 20+

0

14

MTD 717-0622A

Steering Gear Segment
(Superseded to 717-0622C)

$53.99

$

In Stock, only 2 left!

0

15

MTD 723-0448

Drag Link Ball Joint 3/8-24 Thd.
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

16

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

17

MTD 736-0119

Lock Washer 5/16" I.D.
(Superseded to 936-0119)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size given here.

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0169

Lock Washer 3/8" I.D.

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size given here.

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0187

Fl- Washer .64" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0343

Fl-Washer .340" I.D. x 1.125"

$4.49

$

In Stock, Qty 7

0

22

MTD 736-0271

Spring Washer .32" I.D. x .62"
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

23

MTD 736-0285

Fl-Washer .635" I.D. x 1.585"

$4.49

$

In Stock, Qty 20+

0

24

MTD 17198A

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

25

MTD 738-0141

Shld. Bolt .437" Dia. x .350"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

26

MTD 738-0937

Steering Shaft

$88.99

$

In Stock, only 1 left!

0

27

MTD 741-0659

Hex Flange Brg. .632" I.D.
(Superseded to 941-0659)

$5.49

$

In Stock, Qty 5

0

28

MTD 747-0753

Tie Rod (Adjustable)

$34.99

$

In Stock, only 1 left!

0

MTD 747-0861

Tie Rod (Non-Adjustable)
(Superseded to 747-0861-0637)

Variations

MTD 747-0861-0637

Non-Adjustment Tie Rod, Black - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 5

0

$30.99

$

In Stock, Qty 5

0

29

MTD 750-0532

Spacer .985" I.D.
(Superseded to 950-0532)

$

$

Not available

30

MTD 750-0535

Spacer .380" I.D.
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

31

MTD 17548

Front Pivot Bar Support Brkt.

Variations

MTD 17548-0637

BRACKET-PIVOT SUP- - POWDER BLACK (0637)

$

$

Not available

MTD 17548-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17548-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

$

$

32

MTD 17547

Rear Pivot Bar Support Brkt.
(Superseded to 17547-0637)

Variations

MTD 17547-0637

BRACKET-PIVOT SUP- - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 683-0128

Pivot Bar Ass'y.
(Superseded to 683-0128B-0637)

Variations

MTD 683-0128-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

$97.99

$

In Stock, only 2 left!

0

35

MTD 634-0087

Front Wheel Ass'y. Comp. - 15" x 6"

Note: (W/Plastic Bearing)

Variations

MTD 634-0087-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

MTD 634-0087-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

MTD 634-0087-0915

No Longer Available WHEEL ASM - Duro Gray (0915)

$

$

Not available

MTD 634-0087-0941

No Longer Available WHEEL ASM - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0087-0981

No Longer Available - Carlisle Green (0981)

$

$

Not available

$

$

MTD 734-0864

Tire only

Variations

MTD 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0904

TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

MTD 634-0088

Rim only

Variations

MTD 634-0088-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0088-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 634-0088-0662

Rim Only - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0088-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 634-0088-0688

No Longer Available - SPRING GREEN (0688)

$

$

Not available

$

$

MTD 737-0211A

Grease Fitting

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

MTD 737-0212A

Grease Plug

$

$

Not available

35

MTD 634-0091

Front Wheel Ass'y. Comp. - 15" x 6"

Note: (W/Ball Bearing

Variations

MTD 634-0091-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0091-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

$

$

MTD 734-0864

Tire only

Variations

MTD 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0904

TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

MTD 634-0090

Rim only

Variations

MTD 634-0090-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0090-0662

Rim Only - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 737-0280

Grease Fitting

Note: (Optional)

$7.99

$

In Stock, Qty 8

0

37

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

38

MTD 741-0487A

Bearing
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

42

MTD 710-0643

Hex Lock Bolt 5/16-18 x 1" Lg. (Gr. 5)

$6.99

$

In Stock, Qty 5

0

43

MTD 741-0501

Steering Column Brg.
(Superseded to 941-0501)

$

$

Not available

44

MTD 710-0837

Cr-Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 5

0

45

MTD 731-1693

Steering Wheel
(Superseded to 931-0027A)

$97.99

$

Usually ships in 3-6 days

0

MTD 731-1687

Steering Wheel
(Superseded to 931-1687)

Note: (Uses Square Steering Wheel Cap)

$53.99

$

Usually ships in 3-6 days

0

46

MTD 731-0220

Steering Wheel Cap (Round)
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

MTD 731-1459

Steering Wheel Cap w/MTD Logo (Square)
(Superseded to 731-1459A)

$8.49

$

Usually ships in 3-6 days

0

MTD 731-1460

Steering Wheel Cap w/Private Label Logo (Square)

$

$

Not available

47

MTD 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

48

MTD 731-0954

Bellow Steering Column
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

49

MTD 736-0242

Bell-Washer .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

50

MTD 712-0431

Flanged Lock Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

51

MTD 738-0527

Shld. Bolt 1/2" Dia. x 2.04"

$8.49

$

In Stock, Qty 6

0

52

MTD 736-0356

Bell-Washer .39" x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

54

MTD 731-1649

Axle Cap

$

$

Not available

55

MTD 783-0255

Pivot Bar Side Plate - L.H.
(Superseded to 783-0255B)

Variations

MTD 783-0255-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0255-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 783-0255-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0255-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0255-0662

No Longer Available PLATE-PIVO - OYSTER GRAY (0662)

$

$

Not available

$

$

56

MTD 783-0256

Pivot Bar Side Plate - R.H.
(Superseded to 783-0256B-0637)

Variations

MTD 783-0256-0629

PLATE-PIVOT BAR RH - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0256-0637

PLATE-PIVOT BAR RH - POWDER BLACK (0637)

$

$

Not available

MTD 783-0256-0638

PLATE-PIVOT BAR RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0256-0648

PLATE-PIVOT BAR RH - TECH GRAY (0648)

$

$

Not available

MTD 783-0256-0662

PLATE-PIVOT BAR RH - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0256-0665

PLATE-PIVOT BAR RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

58

MTD 710-0604

Hex Washer Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0217

Lock Washer 3/8" I.D. (H.D.)

$4.49

$

In Stock, Qty 8

0

61

MTD 741-0225

Hex Flange Bearing .634" Dia.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

?62

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

?63

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

66

MTD 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

67

MTD 734-1612A

Hub Cap (Beige)

$

$

Not available

MTD 734-1613A

Hub Cap (Gray)

$

$

Not available

68

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

69

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

70

MTD 712-0158

Lock Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0
