13A747GF062 - Yard Machines Lawn Tractor (1997) (Lowes) Single Speed Transaxle 618-0166B Parts Diagram

Lawn Tractor

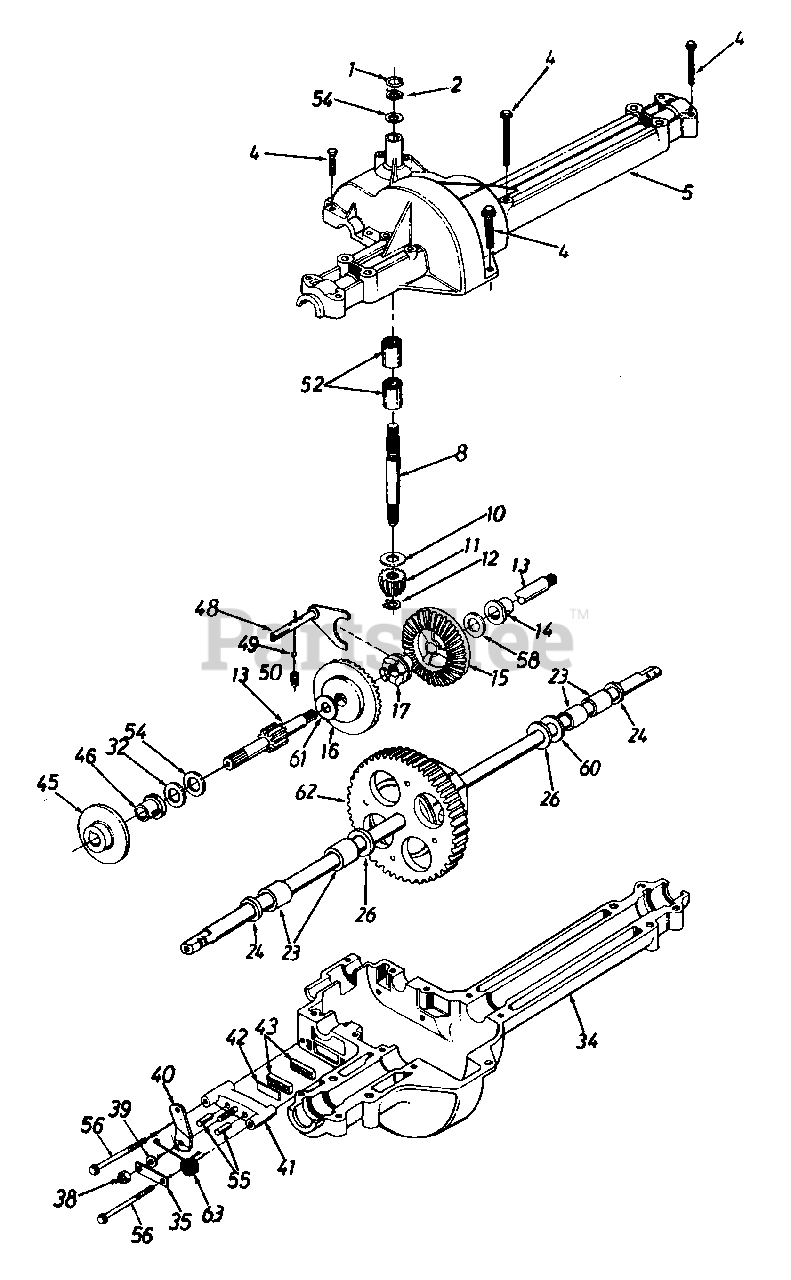

Single Speed Transaxle 618-0166B Parts Diagram

  • Title

MTD 618-0166B

Single Speed Transaxle - L.H.
(Superseded to 918-0166D)

$

$

Not available

1

MTD 732-0614

Wire Ring

$6.49

$

In Stock, only 1 left!

0

2

MTD 716-0231

Retaining Ring

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-1325

Tap Scr. 1/4-

$4.49

$

In Stock, Qty 20+

0

5

MTD 719-0367

Upper Housing

$118.99

$

Usually ships in 3-6 days

0

8

MTD 711-0861

Input Shaft

$

$

Not available

10

MTD 736-0335

Thrust Washer 5/8" I.D. x 1.25" Lg.

$6.99

$

In Stock, Qty 8

0

11

MTD 717-0633

Pinion Input 14T
(Superseded to 917-0633)

$22.99

$

In Stock, only 1 left!

0

12

MTD 716-0108

Retaining Ring

$5.49

$

Usually ships in 3-6 days

0

13

MTD 711-1016

Drive Shaft L.H. Brake
(Superseded to 911-1016)

$

$

Not available

14

MTD 741-0336

Flange Brg. 5/8" I.D. x 3/4" Lg.
(Superseded to 941-0336)

$11.99

$

In Stock, only 1 left!

0

15

MTD 717-1362

Bevel Gear 42T Small I.D.
(Superseded to 917-1362)

$51.99

$

In Stock, only 1 left!

0

16

MTD 717-1363

Bevel Gear 42T Large I.D.
(Superseded to 917-1363)

$51.99

$

In Stock, only 1 left!

0

17

MTD 718-0228

Clutch Collar

$25.99

$

In Stock, only 1 left!

0

23

MTD 741-0340

Sleeve Bearing 3/4" I.D. x 1.0"
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 8

0

24

MTD 721-0338

Oil Seal 3/4" I.D.
(Superseded to 921-0338)

$7.49

$

In Stock, Qty 20+

0

26

MTD 736-0445

Flat Washer .760" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 11

0

32

MTD 736-0495

Thrust Washer 5/8" x 1" x .025"

$4.49

$

In Stock, only 2 left!

0

MTD 736-0336

Flat Washer 5/8" x 1" x .030"
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

MTD 736-0494

Thrust Washer 5/8" x 1" x .035"

$4.99

$

In Stock, only 4 left!

0

MTD 736-0337

Flat Washer 5/8" x 1" x .040"

$4.49

$

In Stock, Qty 9

0

34

MTD 719-0313B

Lower Housing

$154.99

$

Usually ships in 3-6 days

0

35

MTD 718-0150

Anti-Rotation Brkt.

$4.99

$

Usually ships in 3-6 days

0

38

MTD 712-0273

Hex Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

39

MTD 736-0371

Flat Washer .344" I.D. x .875" O.D.

$4.49

$

In Stock, only 3 left!

0

40

MTD 717-0772A

Actuating Arm
(Superseded to 717-0772B)

$12.99

$

Usually ships in 3-6 days

0

41

MTD 761-0198

Brake Yoke
(Superseded to 961-0198B)

$25.99

$

In Stock, only 1 left!

0

42

MTD 717-0682

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

43

MTD 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, Qty 7

0

45

MTD 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

46

MTD 741-0337

Flange Bearing 5/8" I.D. x 15/16"
(Superseded to 941-0337)

$10.99

$

In Stock, only 3 left!

0

48

MTD 611-0011

Shift Fork Ass'y.
(Superseded to 911-0011)

$42.99

$

In Stock, only 3 left!

0

49

MTD 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, Qty 20+

0

50

MTD 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

52

MTD 741-0335

Needle Brg. 5/8" I.D. x 1/2" Lg.
(Superseded to 941-0335)

$18.99

$

In Stock, only 2 left!

0

54

MTD 736-0349

Flat Washer 5/8" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

55

MTD 741-0343

Actuating Pin 5/16" Dia.

$10.99

$

In Stock, Qty 7

0

56

MTD 710-1206

Hex Wash Hd. Self-Tap Scr.

$7.49

$

In Stock, Qty 6

0

?57

MTD 717-1364

Differential Gear 58T
(Superseded to 917-04292)

$

$

Not available

58

MTD 736-0349

Flat Washer 5/8" I.D. x 1" O.D. x

$4.49

$

In Stock, Qty 20+

0

?59

MTD 736-0495

Thrust Washer 5/8" I.D. x 1"

$4.49

$

In Stock, only 2 left!

0

60

MTD 736-0492

Flat Washer .76" x 1.5" x .010"
(Superseded to 936-0492)

$6.99

$

Usually ships in 3-6 days

0

MTD 736-0493

Flat Washer .76" x 1.5" x .020"
(Superseded to 936-0493)

$4.99

$

Usually ships in 3-6 days

0

MTD 736-0351

Flat Washer .76" x 1.5" x .030"

$4.49

$

In Stock, Qty 20+

0

MTD 736-0445

Flat Washer .76" x 1.5" x .040"

$4.49

$

In Stock, Qty 11

0

61

MTD 736-0519

Thrust Washer

$5.49

$

In Stock, only 2 left!

0

62

MTD 618-0233

Differential Ass'y.
(Superseded to 918-04093A)

$

$

Not available

63

MTD 732-0743

L.H. Brake Spring
(Superseded to 932-0743)

$10.99

$

Usually ships in 3-6 days

0

MTD 737-0289

Grease Shell (15 oz.)

$

$

Currently unavailable
