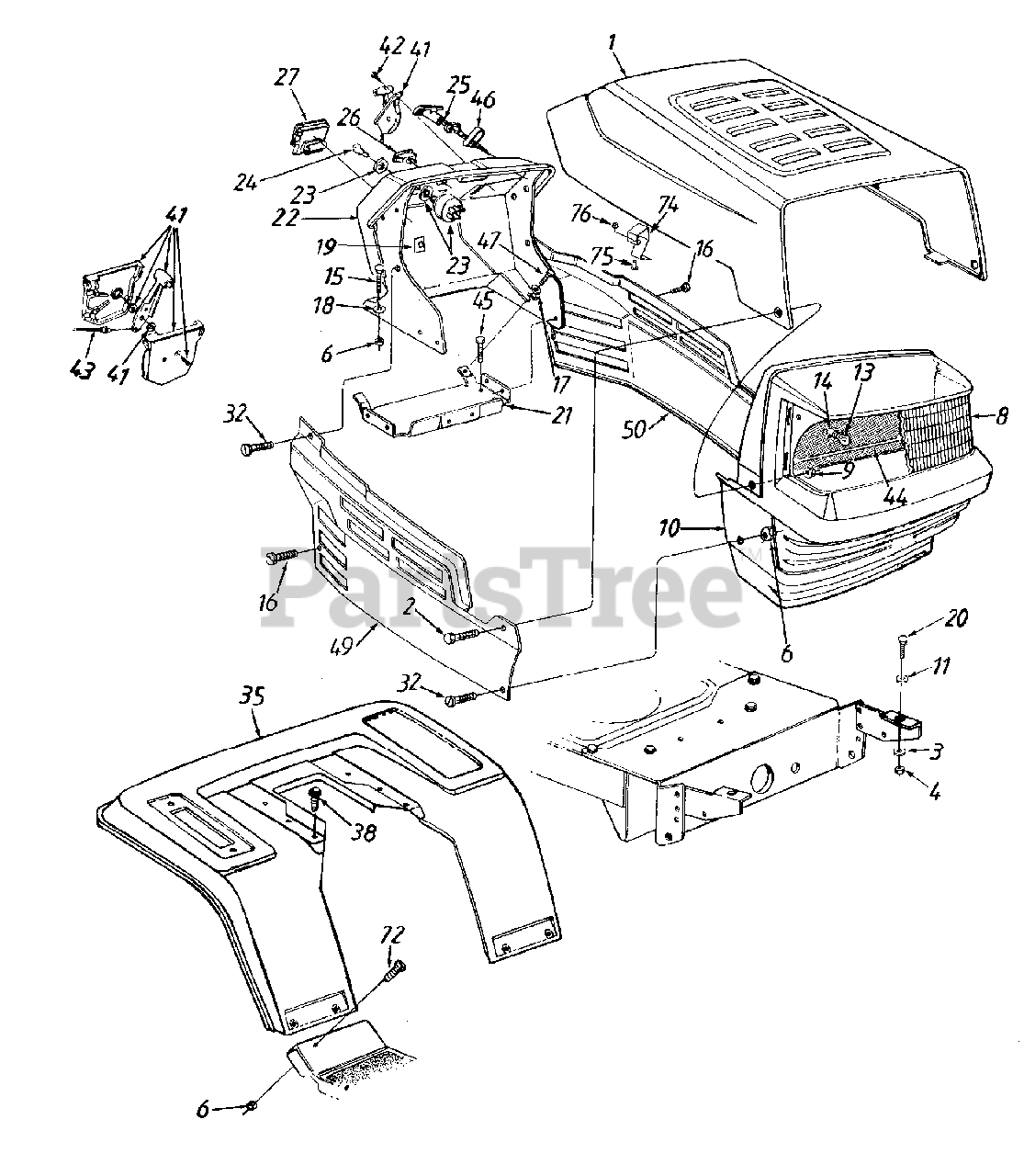

13A6695G118 - Yard Machines Lawn Tractor (1998) (Sam's Club) Hood (Style 5) Parts Diagram

Lawn Tractor

Hood (Style 5) Parts Diagram

  • Title

1

MTD 783-0250

Hood

Variations

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

2

MTD 938-0952A

Shld. Bolt .375" Dia. x .125" Lg.

$7.49

$

In Stock, Qty 10

0

3

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

4

MTD 912-3010

Hex Nut 5/16-18 Thd.
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

8

MTD 931-1099A

Headlight Lens w/o Logo

$92.99

$

In Stock, only 1 left!

0

8

MTD 931-1767

Headlight Lens w/ Logo
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

9

MTD 912-3027

Flange L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

10

MTD 931-1097G

Grille

$192.99

$

Usually ships in 3-6 days

0

11

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0

12

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 925-0963

Lamp

$7.49

$

In Stock, only 4 left!

0

14

MTD 925-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

15

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

16

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr.1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, only 4 left!

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, only 3 left!

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr.5)

$4.49

$

In Stock, Qty 20+

0

21

MTD 17632A-0637

Gas Tank Support Brkt.

$

$

Not available

22

MTD 753-04861

Dash w/Ammeter Hole

$

$

Not available

22

MTD 731-1337A

Dash w/o Ammeter Hole

$111.99

$

Usually ships in 3-6 days

0

23

MTD 925-1396A

Ignition Switch (6 PIN)

$43.99

$

In Stock, Qty 5

0

23

MTD 925-0267B

Ignition Switch (5 PIN)

$35.99

$

In Stock, Qty 8

0

24

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

25

MTD 746-0616A

Choke Control 23" Lg.
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

25

MTD 746-0614A

Choke Control 38" Lg.

$24.99

$

In Stock, only 1 left!

0

25

MTD 746-3021

Choke Control 29" Lg.

$26.99

$

Usually ships in 3-6 days

0

25

MTD 746-0720

Choke Control 20" Lg.

$

$

Not available

26

MTD 925-0634

Light Switch

$17.99

$

In Stock, Qty 5

0

27

MTD 925-0925

Ammeter

$31.99

$

In Stock, only 1 left!

0

32

MTD 710-0924

Pan Hd. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

35

MTD 17871B

Fender w/Cutout

Variations

MTD 17871B-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17871B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17871B-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17871B-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17871B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17871B-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17871B-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17871B-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 17871B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17871B-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 17871B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17871B-0667

No Longer Available FENDER-W/C - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17871B-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17871B-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17871B-0687

No Longer Available FENDER-RR - PINE GREEN (0687)

$

$

Not available

MTD 17871B-0691

No Longer Available FENDER-REA - BLACK JACK (0691)

$

$

Not available

MTD 17871B-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 17871B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

38

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr.5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr.#10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

43

MTD 746-0776

Throttle Control Wire 18.5" Lg.
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 7

0

43

MTD 946-0634

Throttle Control Wire 35" Lg.

$11.99

$

Usually ships in 3-6 days

0

43

MTD 946-0638

Throttle Control Wire 22" Lg.

$10.99

$

In Stock, Qty 7

0

44

MTD 777X40318

Grille Reflector Label

$

$

Not available

45

MTD 710-0603

Hex Wash. Hd. B-Tap Scr.5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

46

MTD 17782

Choke Retainer

$

$

Not available

47

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

49

MTD 783-0150B

Side Panel-R.H.

Variations

MTD 783-0150B-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0150B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0150B-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0150B-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0150B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 783-0150B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0150B-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0150B-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0150B-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 783-0150B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0150B-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0150B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0150B-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0150B-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0150B-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0150B-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0150B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0150B-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0150B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0150B-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

50

MTD 783-0151

Side Panel-L.H.

Variations

MTD 783-0151-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0151-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0151-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0151-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0151-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0151-0662

Side Panel - L.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0151-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0151-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0151-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0151-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0151-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0151-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0151-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0151-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

72

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

73

MTD 736-0342

Fl-Wash. .283" I.D. x .75" Lg.

$7.49

$

Usually ships in 3-6 days

0

74

MTD 732-0835

Hood Latch

$

$

Not available

75

MTD 712-0272

Hex Sems Nut 10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

76

MTD 710-0473

Truss Mach. Scr. 10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

MTD 929-0469B

Headlight Harness

Note: Not shown

$55.99

$

Usually ships in 3-6 days

0
