13A6065-000 - Yard Machines Lawn Tractor (2002) Frame, Seat, Front Axle Parts Diagram

Lawn Tractor

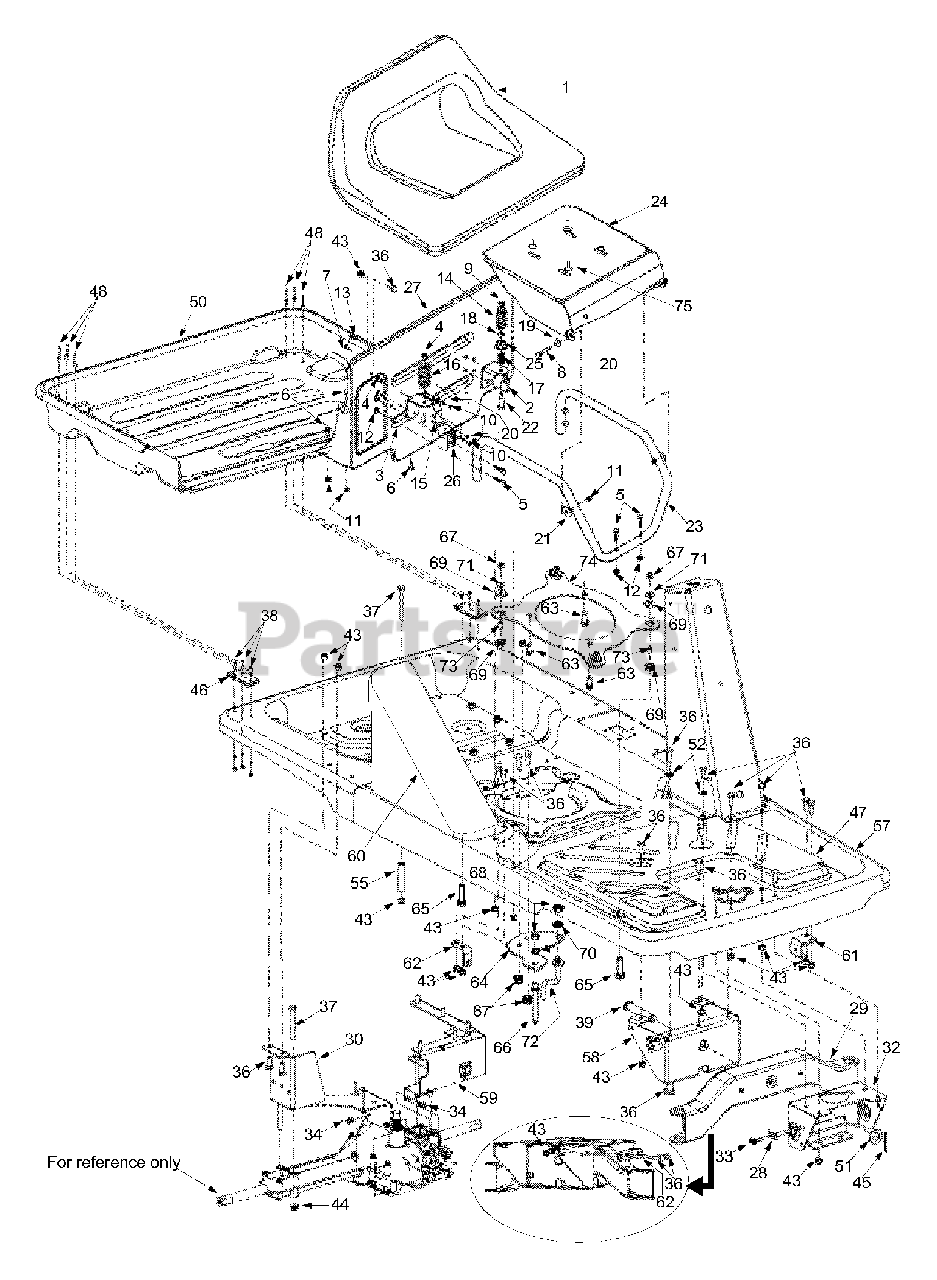

Frame, Seat, Front Axle Parts Diagram

  • Title

1

MTD 757-0378

Seat: Black, Low Back
(Superseded to 957-0378)

$

$

Not available

2

MTD 683-0575

Support Bracket Assembly LH

Variations

MTD 683-0575-0638

No Longer Available BRACKET AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0575-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

$

$

3

MTD 683-0576

Support Bracket Assembly RH

Variations

MTD 683-0576-0638

No Longer Available BRACKET AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0576-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

$

$

4

MTD 710-0604A

TT Screw 5/16-18 x 0.625"

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1250

Carriage Bolt 5/16 x 1.5"

$4.99

$

In Stock, only 3 left!

0

6

MTD 710-1681

Hex Bolt M8-1.25: 20

$5.99

$

Usually ships in 3-6 days

0

7

MTD 710-1690

Special Screw M6-1: 16

$2.99

$

Usually ships in 3-6 days

0

8

MTD 710-1703

Hex Bolt M8-1.25: 45

$

$

Not available

9

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-0689

Hex Nut M6-1

$

$

Not available

11

MTD 712-0692

Hex Lock Nut M8-1.25

$6.99

$

In Stock, only 2 left!

0

12

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 6

0

14

MTD 732-0735

Compression Spring
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

15

MTD 732-0750A

Actuator Spring
(Superseded to 932-0750A)

$21.99

$

Usually ships in 3-6 days

0

16

MTD 732-0996

Compression Spring

$

$

Not available

17

MTD 732-0997

Compression Spring

$

$

Not available

18

MTD 736-0105

Bell Washer .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0289

Shoulder Bushing
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

20

MTD 736-0648

Lock Washer

$2.99

$

In Stock, only 1 left!

0

21

MTD 736-0743

Flat Washer 8.4 x 35

$

$

Not available

22

MTD 738-1014

Shoulder Screw

$4.49

$

In Stock, only 1 left!

0

23

MTD 749-1264

Support Tube: Seat

Variations

MTD 749-1264-0638

TUBE-SUPPORT SEAT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-1264-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

$

$

24

MTD 783-04005

Seat Bracket

Variations

MTD 783-04005-0637

No Longer Available BRACKET:SE - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 783-0733

Spacer

$

$

Not available

26

MTD 783-0931

Bag Switch Bracket
(Superseded to 783-0931-0638)

Variations

MTD 783-0931-0638

BRACKET-SWITCH - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

27

MTD 783-1118B

Seat Support Bracket

$

$

Currently unavailable

28

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

29

MTD 683-0142

Pivot Bar Assembly

Variations

MTD 683-0142-0637

No Longer Available PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 683-0142-0665

No Longer Available PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

$

$

30

MTD 683-0581

Support Bracket Assembly RH

Variations

MTD 683-0581-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

MTD 683-0581-0689

No Longer Available BRACKET ASM-SUPPORT R - POLO GREEN (0689)

$

$

Not available

$

$

?31

MTD 683-0591

Bracket Assembly: Steering Column

Variations

MTD 683-0591-0638

BRACKET ASM-COLUMN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0591-0689

BRACKET ASM-COLUMN - POLO GREEN (0689)

$

$

Not available

$

$

32

MTD 683-0593

Pivot Support Bracket: Front

Variations

MTD 683-0593-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

MTD 683-0593-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

$

$

33

MTD 710-0224

Ab Screw #10-16 x 0.5"
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

34

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

?35

MTD 710-0946

Machine Screw

Note: If equipped

$3.99

$

Usually ships in 3-6 days

0

36

MTD 710-1681

Hex Screw M8-1.25: 20

$5.99

$

Usually ships in 3-6 days

0

37

MTD 710-1708

Special Screw

$

$

Not available

38

MTD 710-1752

Special Screw

$

$

Not available

39

MTD 711-1165

Clevis Pin

$13.99

$

Usually ships in 3-6 days

0

?42

MTD 712-0640

Hex Nut

$

$

Not available

43

MTD 712-0692

Hex Lock Nut

$6.99

$

In Stock, only 2 left!

0

44

MTD 712-0714

Flange Lock Nut

$3.99

$

Usually ships in 3-6 days

0

45

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

46

MTD 723-0491

Tray

$

$

Not available

47

MTD 723-0604

Foot Pad

$

$

Not available

48

MTD 728-0285

Rivet

$

$

Not available

50

MTD 731-2360

Bag Tray

$

$

Not available

51

MTD 736-0187

Flat Washer .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0700

Flat Washer 8.4 x 16

$7.49

$

Usually ships in 3-6 days

0

?53

MTD 736-0765

Lock Washer M4

$

$

Not available

55

MTD 750-1293

Spacer

$

$

Not available

57

MTD 783-1081A

Frame

Variations

MTD 783-1081A-0638

No Longer Available FRAME-MAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-1081A-0689

No Longer Available FRAME-MAIN - POLO GREEN (0689)

$

$

Not available

$

$

58

MTD 783-1097

Rear Bracket: Pivot Support

$

$

Not available

59

MTD 783-1101

Support Bracket: Transmission

Variations

MTD 783-1101-0637

BRACKET-SUPPORT LH - POWDER BLACK (0637)

$

$

Not available

MTD 783-1101-0689

BRACKET-SUPPORT LH - POLO GREEN (0689)

$

$

Not available

$

$

60

MTD 783-1148

Chute Bracket

Variations

MTD 783-1148-0638

Chute Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

61

MTD 783-1260

Stop Bracket: Pivot

$

$

Not available

62

MTD 783-1292

Cable Bracket

$

$

Not available

63

MTD 710-0654A

TT Sems Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

64

MTD 783-1294

Belt Keeper Bracket

$

$

Not available

65

MTD 710-1683

Hex Bolt M8-1.25: 30

$

$

Not available

66

MTD 711-1065

Pin: Belt Guard

$

$

Not available

67

MTD 712-0692

Lock Nut M8-1.25

$6.99

$

In Stock, only 2 left!

0

68

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

69

MTD 722-0153

Engine Mount: Gromm.

$3.49

$

In Stock, Qty 20+

0

70

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

71

MTD 736-0701

Flat Washer 8.4 x 24

$6.49

$

Usually ships in 3-6 days

0

72

MTD 747-1292

Belt Keeper Rod

$

$

Not available

73

MTD 750-0539

Spacer
(Superseded to 950-0539)

$

$

Not available

74

MTD 783-1120

Mounting Plate

Variations

MTD 783-1120-0637

No Longer Available PLATE-MOUN - POWDER BLACK (0637)

$

$

Not available

MTD 783-1120-0689

No Longer Available PLATE-MOUN - POLO GREEN (0689)

$

$

Not available

$

$

75

MTD 710-0870

Self-Tapping Screw

$6.49

$

In Stock, only 1 left!

0
