13A4660F131 - Huskee Lawn Tractor (1999) (Tractor Supply) Deck Assembly "F" Parts Diagram

Lawn Tractor

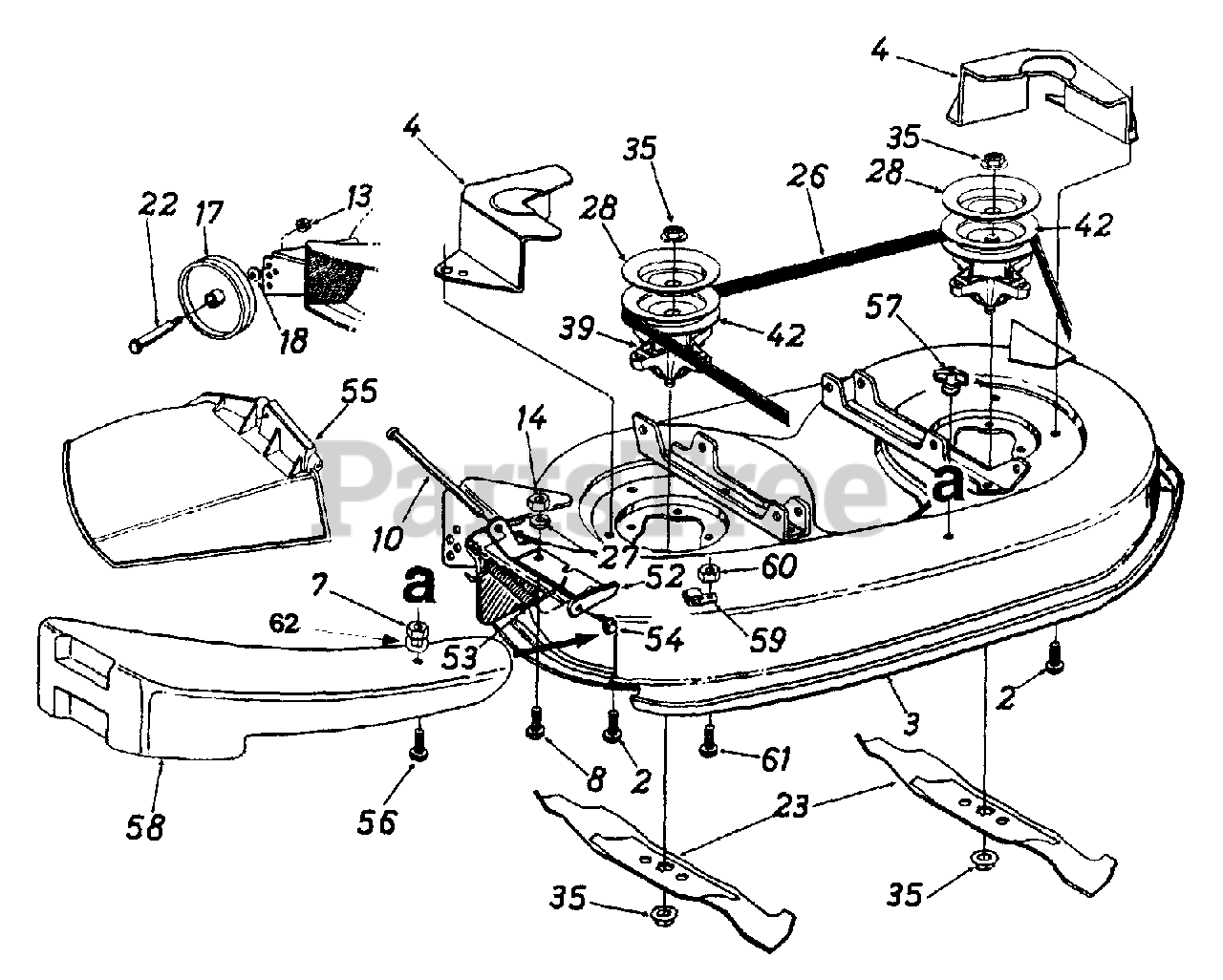

Deck Assembly "F" Parts Diagram

  • Title

2

MTD 710-1260A

Hex Wash. TT-Tap Scr. 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

3

MTD 683-0129

38" Deck Ass'y.
(Superseded to 983-0129A)

Note: (Must be ordered with 4 digit color code.)

Variations

MTD 683-0129-0483

DECK ASM-38" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 683-0129-0629

DECK ASM-38" - SILVER FLAKE (0629)

$

$

Not available

MTD 683-0129-0637

DECK ASM-38" - POWDER BLACK (0637)

$

$

Not available

MTD 683-0129-0638

DECK ASM-38" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0129-0648

USE 983-0129A-0637 DECK ASM-3 - TECH GRAY (0648)

$

$

Not available

MTD 683-0129-0665

DECK ASM-38" - YARDMAN GREEN (0665)

$

$

Not available

$628.99

$

Usually ships in 3-6 days

0

MTD 753-0694

38" Deck Ass'y. Comp.

Note: (For Service) (Must be ordered with 4 digit color code.)

Variations

MTD 753-0694-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 753-0694-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 753-0694-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 753-0694-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 753-0694-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 753-0694-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 783-0343A

Belt Guard Deck

Variations

MTD 783-0343A-0483

Deck Belt Cover, 38" Black - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0343A-0637

Deck Belt Cover, 38" Black - POWDER BLACK (0637)

$

$

Not available

MTD 783-0343A-0638

Deck Belt Cover, 38" Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0343A-0648

Deck Belt Cover, 38" Black - TECH GRAY (0648)

$

$

Not available

MTD 783-0343A-0650

Deck Belt Cover, 38" Black - RED METALLIC (0650)

$

$

Not available

MTD 783-0343A-0665

Deck Belt Cover, 38" Black - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

7

MTD 712-3006

Hex L-Nut 1/4-20 Thd.

Note: (Optional)

$4.99

$

In Stock, Qty 19

0

8

MTD 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

10

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

13

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 19

0

17

MTD 734-0973

Deck Wheel - 5"

$12.99

$

In Stock, Qty 20+

0

18

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

23

MTD 742-0610

3 in 1 Blade
(Superseded to 942-0610A)

$26.99

$

In Stock, Qty 20+

0

26

MTD 754-0329A

V-Belt
(Superseded to 954-0329A)

$52.99

$

In Stock, only 2 left!

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 783-0342

Brake Disc
(Superseded to 783-0342A)

$

$

Not available

?33

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

35

MTD 712-0417A

Hex Flange Nut 5/8-18 Thd.

$6.99

$

In Stock, Qty 20+

0

?37

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

39

MTD 618-0138

Blade Spdl Ass'y.
(Superseded to 918-0138C)

Note: (Incl. Ref. 28, 35, 42)

$140.99

$

Usually ships in 3-6 days

0

42

MTD 756-0969

5" Dia. Pulley

$35.99

$

Usually ships in 3-6 days

0

52

MTD 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

MTD 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

MTD 731-1032

Chute Ass'y.
(Superseded to 631-05229)

Note: (Incl. Ref.10, 52, 53, 54, 55)

$81.99

$

In Stock, Qty 6

0

56

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

Note: (Optional)

$3.99

$

In Stock, Qty 14

0

57

MTD 712-3087

Wing Nut 1/4-20 Thd.

Note: (Optional)

$3.99

$

In Stock, Qty 20+

0

58

MTD 731-1643A

Mulching Plug
(Superseded to OEM-190-116)

Note: (Optional)

$101.99

$

In Stock, only 2 left!

0

59

MTD 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

60

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

61

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

62

MTD 736-0173

Flat Washer .28 ID x .74 OD

$4.49

$

In Stock, Qty 20+

0
