13A4065-129 - Yard Machines Lawn Tractor (2003) (Home Depot) Wheels Rear Parts Diagram

Lawn Tractor

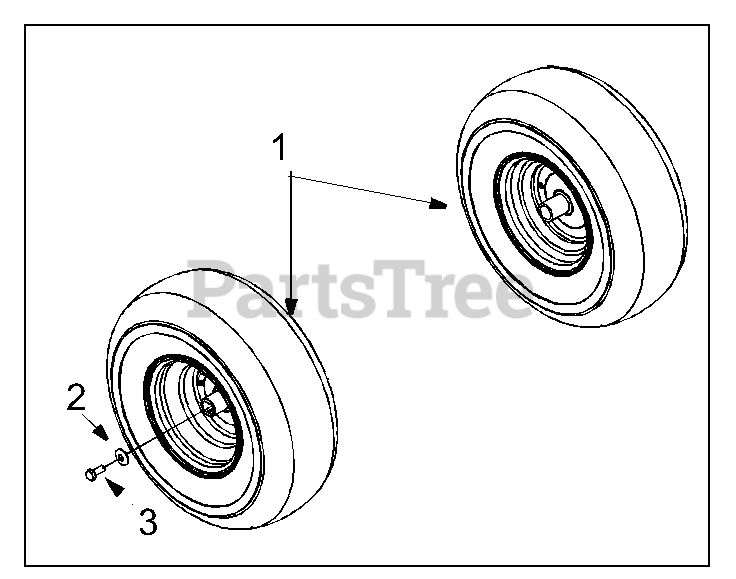

Wheels Rear Parts Diagram

  • Title

1

MTD 634-0212

Rear Wheel Assembly Complete: 13 x 5 x 6
(Superseded to 634-0148)

Variations

MTD 634-0212-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0212-0921

WHEEL ASM-COMPLETE - Carlisle White (0921)

$

$

Not available

MTD 634-0212-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

$

$

MTD 634-0211

Rim Assembly

Variations

MTD 634-0211-0662

No Longer Available RIM ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 734-0255

Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 734-0298

Tire
(Superseded to 734-0298-0901)

Variations

MTD 734-0298-0901

Tubeless Tire, 13 - Carlisle (0901)

$41.99

$

In Stock, Qty 6

0

MTD 734-0298-0902

Tubeless Tire, 13 - Dico (0902)

$41.99

$

In Stock, Qty 6

0

MTD 734-0298-0905

Tubeless Tire, 13 - Duro (0905)

$41.99

$

In Stock, Qty 6

0

$41.99

$

In Stock, Qty 6

0

2

MTD 736-0242

Bell Washer .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0627

Hex Bolt 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0
