13A4065-129 - Yard Machines Lawn Tractor (2003) (Home Depot) Transmission Parts Diagram

Lawn Tractor

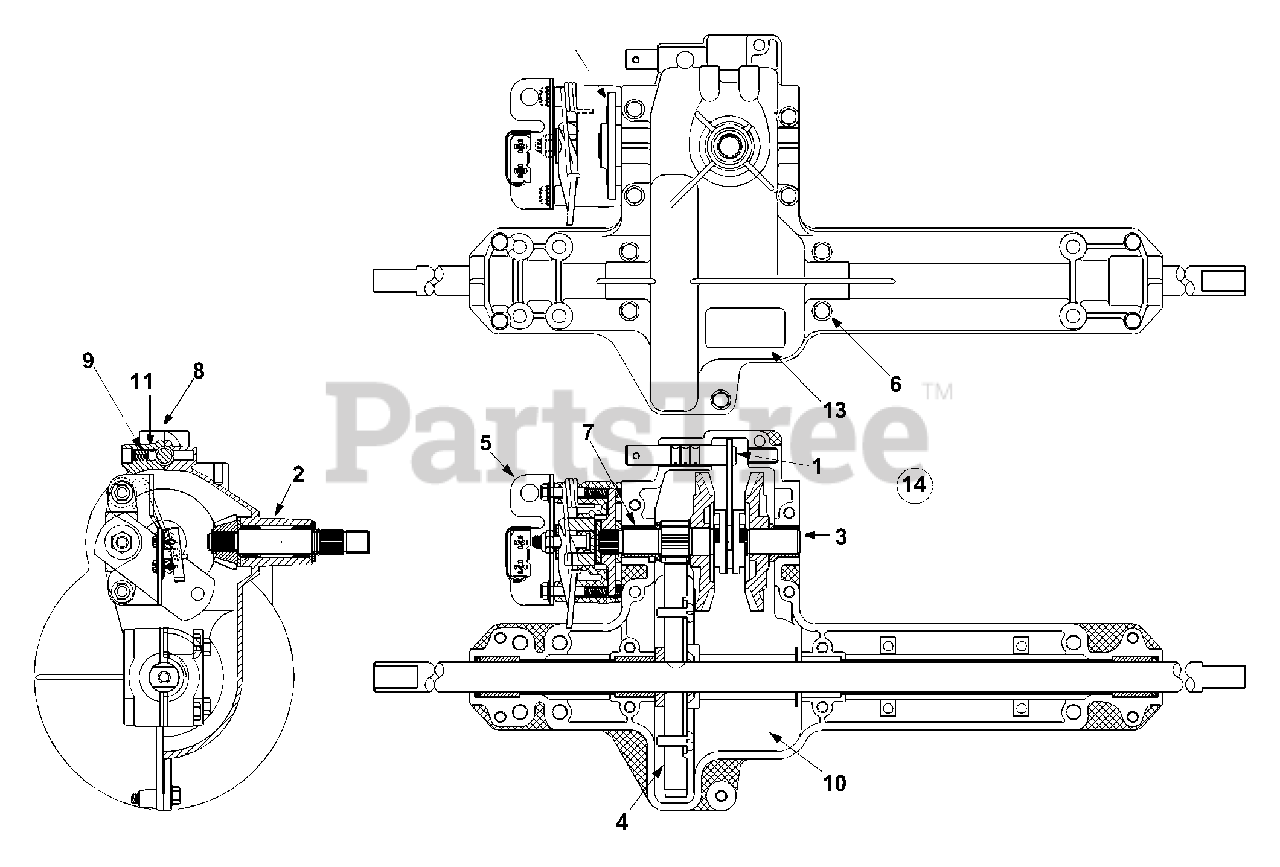

Transmission Parts Diagram

  • Title
1

MTD 611-0011

Shaft Assembly: Detent
(Superseded to 911-0011)

$42.99

$

In Stock, only 3 left!

0

2

MTD 618-0072B

Upper Housing Assembly
(Superseded to 918-0072B)

$183.99

$

Usually ships in 3-6 days

0

3

MTD 618-0135

Drive Shaft Assembly: LH Brake
(Superseded to 918-0135)

$

$

Not available

4

MTD 618-04009A

Axle Assembly

$

$

Not available

5

MTD 661-0043

Brake Assembly: Yoke LH

$

$

Not available

6

MTD 710-1325

TT Screw 1/4-20 x 1.625"

$4.49

$

Usually ships in 3-6 days

0

7

MTD 717-0678

Brake Pad
(Superseded to 917-0678)

$7.49

$

In Stock, only 1 left!

0

8

MTD 719-0313B

Lower Housing

$154.99

$

Usually ships in 3-6 days

0

9

MTD 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 1 left!

0

10

MTD 737-0148

Grease
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 19

0

11

MTD 741-0862

Ball: Detent: .250

$4.49

$

In Stock, Qty 20+

0

?12

MTD 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

13

$

$

Currently unavailable

14

MTD 618-04007A

Transmission Assembly Complete
(Superseded to 918-04007A)

$

$

Not available
