13A4065-129 - Yard Machines Lawn Tractor (2003) (Home Depot) Electrical Parts Diagram

Lawn Tractor

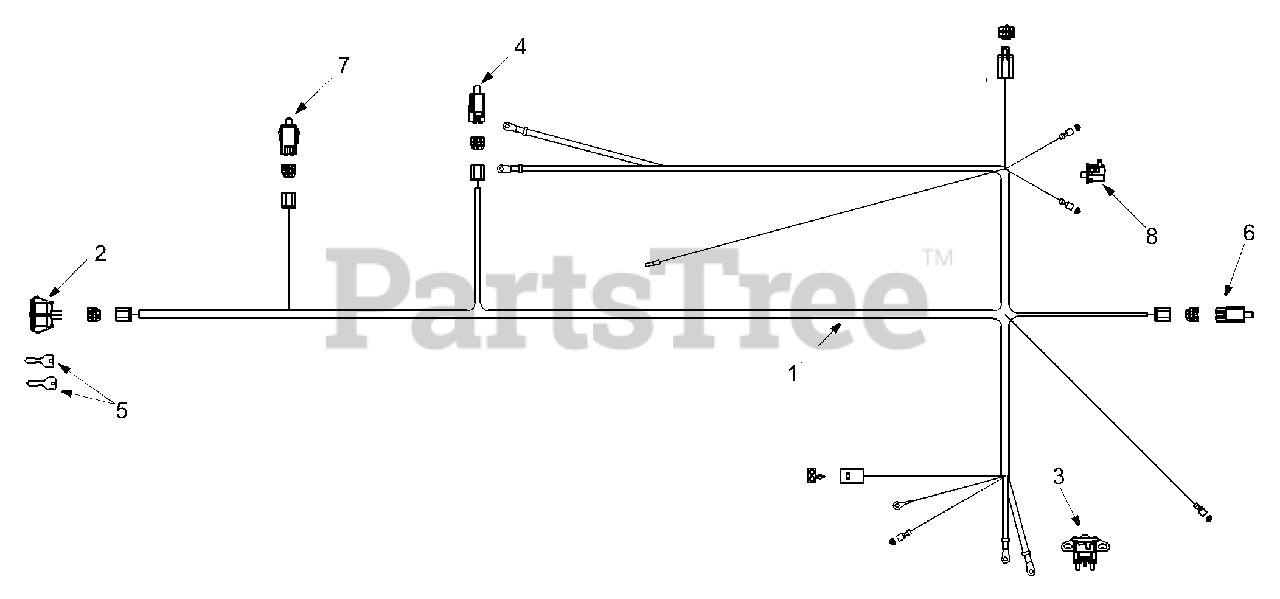

Electrical Parts Diagram

  • Title

1

MTD 629-04004

Harness Assembly
(Superseded to 929-04004)

$

$

Not available

2

MTD 725-04019

Key Switch
(Superseded to 925-04019)

$41.99

$

In Stock, only 1 left!

0

3

MTD 725-1426

Solenoid: 12 V. 100 amp.
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

4

MTD 725-1657A

Interlock Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

5

MTD 725-1744

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

6

MTD 725-1747

Switch: Plgr N.C./N.C.
(Superseded to 925-1747)

$40.99

$

Usually ships in 3-6 days

0

7

MTD 725-3164A

Switch: Plgr N.O./N.C.
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

8

MTD 725-3166

Switch: Mt. Snap N.C.
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0
