13A4065-000 - Yard Machines Lawn Tractor (2004) Frame, Seat, Front Axle Parts Diagram

Lawn Tractor

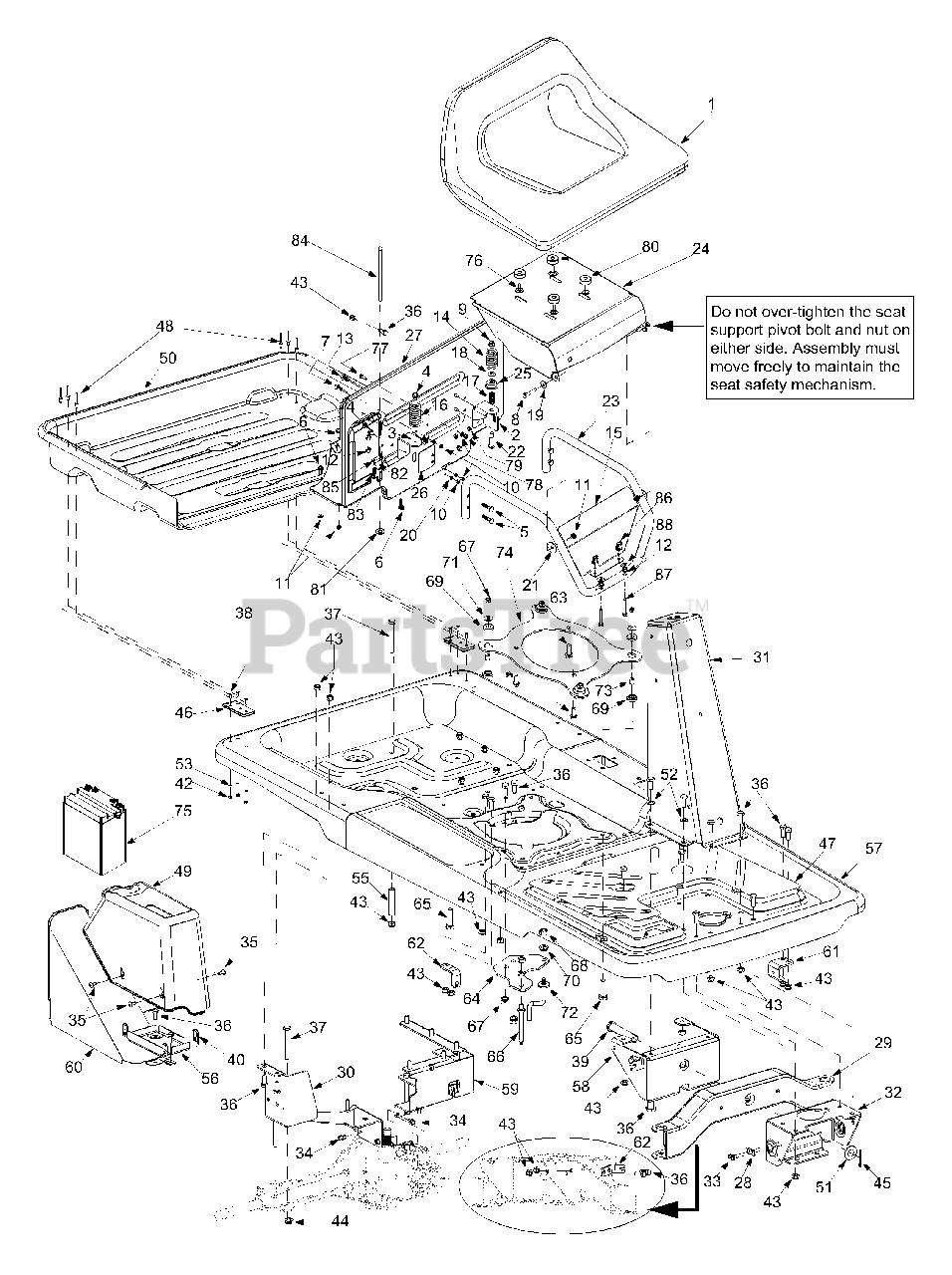

Frame, Seat, Front Axle Parts Diagram

  • Title

1

MTD 757-04001

Seat: Black, Low Back
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

2

MTD 683-0575

Support Bracket Assembly LH

Variations

MTD 683-0575-0638

No Longer Available BRACKET AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0575-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

$

$

3

MTD 683-0576

Support Bracket Assembly RH

Variations

MTD 683-0576-0638

No Longer Available BRACKET AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0576-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

$

$

4

MTD 710-0726

AB Screw 5/16-12 x 0.750"

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1250

Carriage Bolt 5/16 x 1.5"

$4.99

$

In Stock, Qty 5

0

6

MTD 710-1681

Hex Bolt M8-1.25: 20

$5.99

$

Usually ships in 3-6 days

0

7

MTD 710-1690

Special Screw M6-1: 16

$2.99

$

Usually ships in 3-6 days

0

8

MTD 710-1703

Hex Bolt M8-1.25: 45

$

$

Not available

9

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-0689

Hex Nut M6-1

$

$

Not available

11

MTD 712-0692

Hex Lock Nut M8-1.25

$6.99

$

In Stock, only 1 left!

0

12

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

14

MTD 732-0735

Compression Spring
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

15

MTD 783-04293

Heat Deflector

Variations

MTD 783-04293-0637

No Longer Available DEFLECTOR- - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 732-0996

Compression Spring

$

$

Not available

17

MTD 732-0997

Compression Spring

$

$

Not available

18

MTD 736-0105

Bell Washer .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0289

Shoulder Bushing
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

20

MTD 736-0648

Lock Washer

$2.99

$

In Stock, only 1 left!

0

21

MTD 736-0743

Flat Washer 8.4 x 35

$

$

Not available

22

MTD 738-1014

Shoulder Screw

$4.49

$

In Stock, only 1 left!

0

23

MTD 749-1264

Support Tube: Seat

Variations

MTD 749-1264-0638

TUBE-SUPPORT SEAT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-1264-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

$

$

24

MTD 783-04005

Seat Bracket

Variations

MTD 783-04005-0637

No Longer Available BRACKET:SE - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 783-0733

Spacer

$

$

Not available

26

MTD 783-04279

Bag Switch Cover

$

$

Currently unavailable

27

MTD 783-04278

Seat Support Bracket

$

$

Currently unavailable

28

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

29

MTD 683-0142

Pivot Bar Assembly

Variations

MTD 683-0142-0637

No Longer Available PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 683-0142-0665

No Longer Available PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

$

$

30

MTD 683-0581

Support Bracket Assembly RH

Variations

MTD 683-0581-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

MTD 683-0581-0689

No Longer Available BRACKET ASM-SUPPORT R - POLO GREEN (0689)

$

$

Not available

$

$

31

MTD 683-0591

Bracket Assembly: Steering Column

Variations

MTD 683-0591-0638

BRACKET ASM-COLUMN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0591-0689

BRACKET ASM-COLUMN - POLO GREEN (0689)

$

$

Not available

$

$

32

MTD 683-0593

Pivot Support Bracket: Front

Variations

MTD 683-0593-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

MTD 683-0593-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

$

$

33

MTD 710-0224

AB Screw #10-16 x 0.5"
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

34

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-0642

Machine Screw

$4.49

$

In Stock, Qty 20+

0

36

MTD 710-1681

Hex Screw M8-1.25: 20

$5.99

$

Usually ships in 3-6 days

0

37

MTD 710-1708

Special Screw

$

$

Not available

38

MTD 710-1752

Special Screw

$

$

Not available

39

MTD 711-1165

Clevis Pin

$13.99

$

Usually ships in 3-6 days

0

40

MTD 712-0185

Speed Nut 1/4-20

$

$

Not available

42

MTD 712-0640

Hex Nut

$

$

Not available

43

MTD 712-0692

Hex Lock Nut

$6.99

$

In Stock, only 1 left!

0

44

MTD 712-0714

Flange Lock Nut

Note: Torque: 19.8-26.6 n.-m. or 175-235 in.-lbs.

$3.99

$

Usually ships in 3-6 days

0

45

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

46

MTD 723-0491

Tray Hinge

$

$

Not available

47

MTD 723-0604A

Foot Pad

$

$

Not available

48

MTD 728-04000

Rivet

$6.99

$

In Stock, Qty 8

0

49

MTD 731-04013

Battery Cover

$

$

Not available

50

MTD 731-2644

Bag Tray

$

$

Not available

51

MTD 736-0187

Flat Washer .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0700

Flat Washer 8.4 x 16

$7.49

$

Usually ships in 3-6 days

0

53

MTD 736-0765

Lock Washer M4

$

$

Not available

55

MTD 750-1293

Spacer

$

$

Not available

56

MTD 783-04004

Bracket: Battery Support
(Superseded to 783-04004-0689)

Variations

MTD 783-04004-0689

BRACKET-SUPT BATTERY - POLO GREEN (0689)

$

$

Not available

$

$

57

MTD 783-1081A

Frame

Variations

MTD 783-1081A-0638

No Longer Available FRAME-MAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-1081A-0689

No Longer Available FRAME-MAIN - POLO GREEN (0689)

$

$

Not available

$

$

58

MTD 783-1097

Rear Bracket: Pivot Support

$

$

Not available

59

MTD 783-1101

Support Bracket: Transmission

Variations

MTD 783-1101-0637

BRACKET-SUPPORT LH - POWDER BLACK (0637)

$

$

Not available

MTD 783-1101-0689

BRACKET-SUPPORT LH - POLO GREEN (0689)

$

$

Not available

$

$

60

MTD 783-1148

Chute Bracket

Variations

MTD 783-1148-0638

Chute Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

61

MTD 783-1260

Stop Bracket: Pivot

$

$

Not available

62

MTD 783-1292

Cable Bracket

$

$

Not available

63

MTD 710-0654A

TT Sems Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

64

MTD 783-1294

Belt Keeper Bracket

$

$

Not available

65

MTD 710-1683

Hex Bolt M8-1.25: 30

$

$

Not available

66

MTD 711-1065

Pin: Belt Guard

$

$

Not available

67

MTD 712-0692

Lock Nut M8-1.25

$6.99

$

In Stock, only 1 left!

0

68

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

69

MTD 722-0153

Engine Mount: Gromm.

$3.49

$

In Stock, Qty 20+

0

70

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

71

MTD 736-0701

Flat Washer 8.4 x 24

$6.49

$

Usually ships in 3-6 days

0

72

MTD 747-1292

Belt Keeper Rod

$

$

Not available

73

MTD 750-0539

Spacer
(Superseded to 950-0539)

$

$

Not available

74

MTD 783-1120

Mounting Plate

Variations

MTD 783-1120-0637

No Longer Available PLATE-MOUN - POWDER BLACK (0637)

$

$

Not available

MTD 783-1120-0689

No Longer Available PLATE-MOUN - POLO GREEN (0689)

$

$

Not available

$

$

75

MTD 725-1698

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

76

MTD 710-1315

Self-Tapping Screw 3/8-16 x 1.250

$4.49

$

In Stock, only 2 left!

0

77

MTD 710-0642

Self-Tapping Screw 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

78

MTD 736-0222

Lock Washer

$5.99

$

In Stock, only 3 left!

0

79

MTD 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

80

MTD 738-04008

Spacer

$

$

Not available

81

MTD 726-0106

Speed Nut

$3.99

$

Usually ships in 3-6 days

0

82

MTD 783-04238

Bag Hinge Bracket

$

$

Currently unavailable

83

MTD 732-04094A

Torsion Spring

$

$

Currently unavailable

84

MTD 711-04133

Hinge Pin

$

$

Currently unavailable

85

MTD 683-04068

Bag Chute Door Assembly

$

$

Currently unavailable

86

MTD 712-0421

Wing Nut

$6.99

$

In Stock, Qty 20+

0

87

MTD 710-3103

Hex Bolt 5/16-12 x 2.0

$4.49

$

In Stock, Qty 20+

0

88

MTD 736-0195

Flat Washer

$

$

Not available
