13A4065-000 - Yard Machines Lawn Tractor (2004) Deck & Lift Assembly Parts Diagram

Lawn Tractor

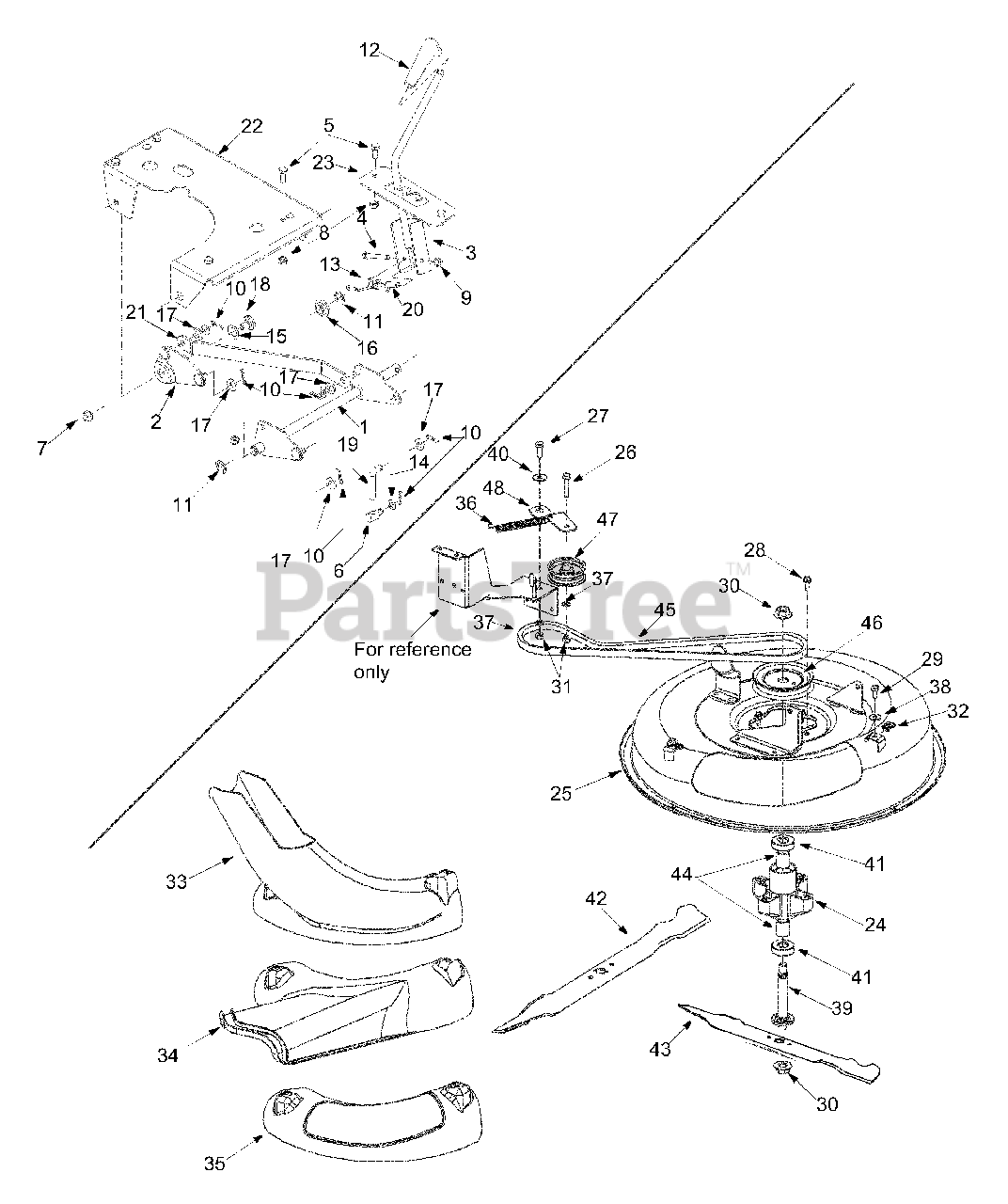

Deck & Lift Assembly Parts Diagram

  • Title

1

MTD 683-0441

Shift Assembly: Front Lift

$

$

Not available

2

MTD 683-0442

Pivot Bracket Assembly

$

$

Not available

3

MTD 683-0448

Bracket Assembly: Lift Handle

$

$

Not available

4

MTD 710-0641

Hex Bolt 1/4-20 x 2.25

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-1681

Hex Bolt M8-1.25: 20

$5.99

$

Usually ships in 3-6 days

0

6

MTD 711-0832

Ferrule
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

7

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

MTD 712-0692

Hex Lock Nut M8-1.25

$6.99

$

In Stock, only 2 left!

0

9

MTD 712-3027

Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

10

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

11

MTD 716-0106A

E-Ring

$5.49

$

In Stock, only 2 left!

0

12

MTD 731-2509

Handle Grip

$

$

Not available

13

MTD 732-1020

Torsion Spring

$

$

Not available

14

MTD 736-0314

Thrust Washer .375 x .70 x .030

$6.99

$

Usually ships in 3-6 days

0

15

MTD 736-0336

Flat Washer 5/8 x 1.0 x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

16

MTD 736-0341B

Flange Washer .633 x .883

$

$

Not available

17

MTD 736-3010

Flat Washer .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

18

MTD 738-0281

Shoulder Screw .625 x .17: 3/8-16

$10.99

$

In Stock, only 1 left!

0

19

MTD 747-1247

Lift Link

$

$

Not available

20

MTD 750-0566A

Spacer

$9.99

$

In Stock, only 1 left!

0

21

MTD 783-1136

Upper Lift Link Bracket

$

$

Not available

22

MTD 783-1138

Lift Hanger Bracket

$

$

Not available

23

MTD 783-1143

Lift Indx. Bracket

$

$

Not available

24

MTD 619-0020

Spindle Housing

$

$

Not available

25

MTD 683-0439A

Deck
(Superseded to 683-0439)

Variations

MTD 683-0439A-0637

No Longer Available DECKASM-60 - POWDER BLACK (0637)

$

$

Not available

MTD 683-0439A-0689

DECK ASM-60.5 CM - POLO GREEN (0689)

$

$

Not available

$574.99

$

Usually ships in 3-6 days

0

26

MTD 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

27

MTD 710-0514

Hex Bolt 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0650

TT Screw 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

29

MTD 710-04041

Wing Bolt M8-1.25 x 20 mm.

$19.99

$

Usually ships in 3-6 days

0

30

MTD 712-0417A

Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

31

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

32

MTD 726-0365

Speed Nut M8-1.25

$

$

Not available

33

MTD 731-2361A

Grass Catcher Chute

$

$

Not available

34

MTD 731-2477

Side-Discharge Chute

$104.99

$

Usually ships in 3-6 days

0

35

MTD 731-2505

Mulch Plug

$73.99

$

Usually ships in 3-6 days

0

36

MTD 732-0814

Extension Spring

$7.99

$

In Stock, only 4 left!

0

37

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

38

MTD 736-0701

Flat Washer 8.4 x 24

$6.49

$

Usually ships in 3-6 days

0

39

MTD 738-0933

Spindle Shaft

$41.99

$

Usually ships in 3-6 days

0

40

MTD 738-0968

Shoulder Spacer
(Superseded to 938-0968)

$5.99

$

Usually ships in 3-6 days

0

41

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

42

MTD 742-0667

Blade: Bagging
(Superseded to 942-0667)

Note: (If equipped)

$81.99

$

Usually ships in 3-6 days

0

43

MTD 742-0760

Blade: 3-in-1
(Superseded to 942-0760)

$39.99

$

In Stock, Qty 13

0

44

MTD 750-1000

Spacer

$4.49

$

In Stock, Qty 7

0

45

MTD 754-0495

Belt: V Type
(Superseded to 954-0495)

$49.99

$

Usually ships in 3-6 days

0

46

MTD 756-0969

Deck Pulley

$35.99

$

Usually ships in 3-6 days

0

47

MTD 756-0981A

Flat Idler Pulley
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

48

MTD 783-1122

Idler Bracket: Deck

$

$

Not available
