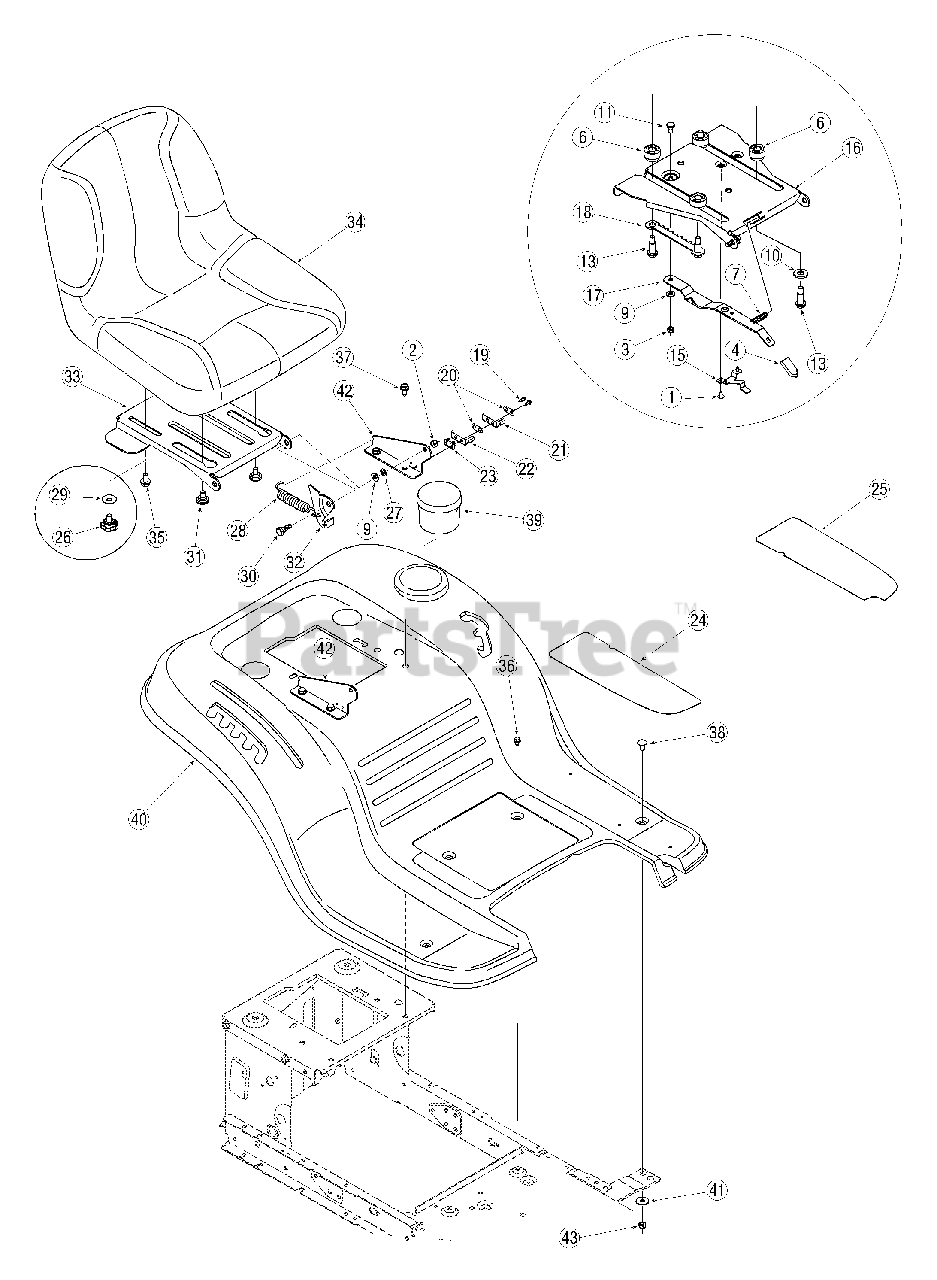

13A3771G700 - Yard Machines Lawn Tractor (2005) Fender Assembly Parts Diagram

Lawn Tractor

Fender Assembly Parts Diagram

  • Title

1

MTD 710-1268

Screw, #10-16, .375

$4.49

$

In Stock, only 2 left!

0

2

MTD 712-04063

Nut, Flange Lock, 5/16-18, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

MTD 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

5

MTD 726-0201

Nut, Speed, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

6

MTD 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

7

MTD 732-0499

Compression Spring, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

8

MTD 732-1184

Spring, Extension, .84 Dia. x 4.6

$11.99

$

In Stock, only 1 left!

0

9

MTD 736-0275

Wash, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

10

MTD 736-3019

Wash, Flat, .531x 1.062 x.134

$5.99

$

In Stock, Qty 11

0

11

MTD 738-0137A

Screw, Shoulder, .340 x .285,1/4-20

$10.99

$

In Stock, Qty 10

0

12

MTD 738-0296

Screw, Shoulder, .437 x .268, 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

MTD 738-0966

Screw, Shoulder, .50 x .925, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

14

MTD 783-0209C

Seat Bracket, Lift
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

15

MTD 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

16

MTD 783-0738B

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

MTD 783-0738B-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0738B-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0738B-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

MTD 783-0738B-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0738B-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

17

MTD 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

MTD 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

18

MTD 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

19

MTD 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 15

0

20

MTD 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

21

MTD 725-1303

Spring Switch, Inner
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

22

MTD 725-1439

Spring Switch, Outer

$8.49

$

In Stock, Qty 8

0

23

MTD 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

24

MTD 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

25

MTD 723-04026

Foot Pad, Abrasive, LH

$33.99

$

In Stock, only 1 left!

0

26

MTD 720-04009

Knob, 3/8-16, .625
(Superseded to 720-04009A)

$16.99

$

In Stock, only 2 left!

0

27

MTD 726-0201

Nut, Speed, .3125 Id

$6.99

$

Usually ships in 3-6 days

0

28

MTD 732-1184

Spring, Extension, .84 Dia x 4.6 Lg.

$11.99

$

In Stock, only 1 left!

0

29

MTD 736-0101

Washer, Flat, .406 x 1.00 x .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

30

MTD 738-0296

Screw, Shoulder, .437 x .268, 5/16-18

$4.49

$

In Stock, Qty 20+

0

31

MTD 738-04012

Screw, Shoulder, .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

32

MTD 783-0209C

Lift Bracket, Seat
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

33

MTD 783-04081A

Pivot Bracket, Seat

Variations

MTD 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

MTD 783-04081A-4008

Seat Pivot Bracket - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

34

MTD 757-04021A

Seat, Low Back
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

MTD 757-04020A

Seat, Medium Back
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

35

MTD 710-0870

Screw, 3/8-16, .625

$6.49

$

In Stock, only 1 left!

0

36

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-0134

Screw, Carriage, 1/4-20, .62 Gr2

$4.49

$

In Stock, Qty 20+

0

39

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

40

MTD 783-04587

Fender
(Superseded to 783-04587D)

Variations

MTD 783-04587-0638

FENDER-TRANS LT-5 - MTD/TROY-BILT RED (0638)

$421.99

$

Usually ships in 3-6 days

0

MTD 783-04587-0606

FENDER- SINGLE SPEED - MAJESTIC ORANGE (0606)

$421.99

$

Usually ships in 3-6 days

0

MTD 783-04587-0650

FENDER-TRANS LT-5 - RED METALLIC (0650)

$421.99

$

Usually ships in 3-6 days

0

MTD 783-04587-0665

FENDER-TRANS LT-5 - YARDMAN GREEN (0665)

$366.99

$

Usually ships in 3-6 days

0

MTD 783-04587-0691

FENDER-TRANS LT-5 - BLACK JACK (0691)

$421.99

$

Usually ships in 3-6 days

0

MTD 783-04587-0709

FENDER- SINGLE SPEED - MASTERCRAFT GREEN (0709)

$341.99

$

Usually ships in 3-6 days

0

MTD 783-04587-0716

FENDER-TRANS LT-5 - CUB YELLOW-99 (0716)

$385.99

$

Usually ships in 3-6 days

0

$334.99

$

Usually ships in 3-6 days

0

41

MTD 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

42

MTD 783-1489A

Mounting Bracket, Seat
(Superseded to 783-1489C)

Variations

MTD 783-1489A-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489A-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

43

MTD 712-04064

Nut, Flange Lock, 1/4-20, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0
