13A3762F700 - Yard Machines Lawn Tractor (2006) Fender Assembly Parts Diagram

Lawn Tractor

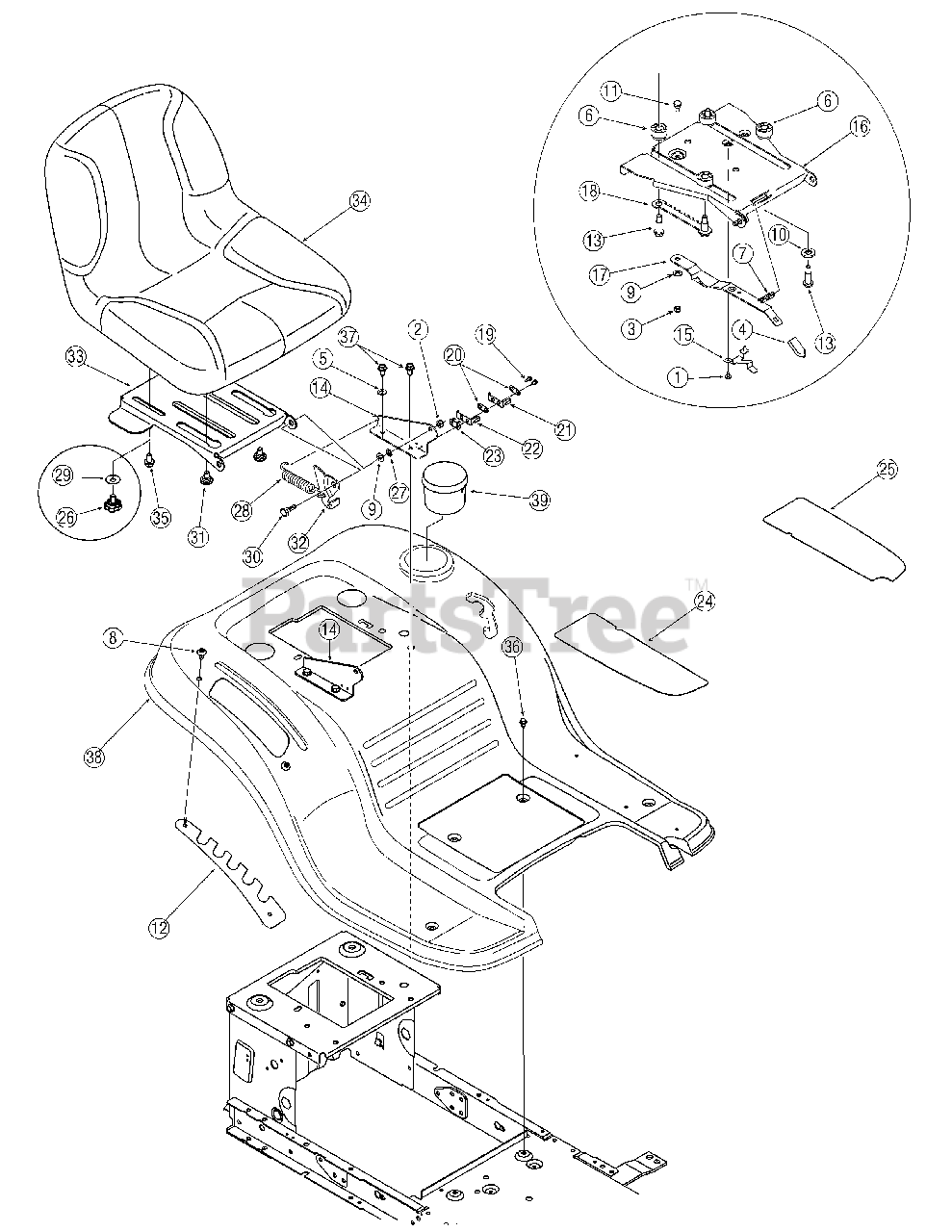

Fender Assembly Parts Diagram

  • Title

1

MTD 710-1268

Screw, #10-16, .375

$4.49

$

In Stock, only 2 left!

0

2

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

MTD 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

5

MTD 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

6

MTD 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

7

MTD 732-0499

Compression Spring, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

8

MTD 710-04483

Screw, 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

9

MTD 736-0275

Wash, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

10

MTD 736-3019

Wash, Flat, .531x 1.062 x. .134

$5.99

$

In Stock, Qty 11

0

11

MTD 738-0137A

Screw, Shlder, .340 x .285,1/4-20

$10.99

$

In Stock, Qty 10

0

12

MTD 783-04843

Lift Adjustment Bracket

Variations

MTD 783-04843-0637

Lift Adjust Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04843-0606

BRACKET:LIFT:ADJ - MAJESTIC ORANGE (0606)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-04843-0638

BRACKET:LIFT:ADJ - MTD/TROY-BILT RED (0638)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04843-0691

BRACKET:LIFT:ADJ - BLACK JACK (0691)

$32.99

$

Usually ships in 3-6 days

0

MTD 783-04843-0709

BRACKET:LIFT:ADJ - MASTERCRAFT GREEN (0709)

$29.99

$

Usually ships in 3-6 days

0

MTD 783-04843-4044

BRACKET:LIFT:ADJ - CRAFTSMAN RED (4044)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04843-4062

BRACKET:LIFT:ADJ - COOL GRAY (4062)

$34.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

13

MTD 738-0966

Screw, Shlder, .50 x .925, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

14

MTD 783-1489A

Mounting Bracket, Seat
(Superseded to 783-1489C)

Variations

MTD 783-1489A-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489A-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

15

MTD 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

16

MTD 783-0738B

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

MTD 783-0738B-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0738B-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0738B-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

MTD 783-0738B-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0738B-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

17

MTD 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

MTD 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

18

MTD 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

19

MTD 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 15

0

20

MTD 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

21

MTD 725-1303

Spring Switch, Outer
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

22

MTD 725-1439

Spring Switch, Inner

$8.49

$

In Stock, Qty 8

0

23

MTD 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

24

MTD 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

25

MTD 723-04026

Foot Pad, Abrasive, LH

$33.99

$

In Stock, only 1 left!

0

26

MTD 720-04009

Knob, 3/8-16, .625
(Superseded to 720-04009A)

$16.99

$

In Stock, only 2 left!

0

27

MTD 726-0201

Nut, Speed, .3125 Id

$6.99

$

Usually ships in 3-6 days

0

28

MTD 732-1184

Spring, Exten., .84 Dia x 4.6 Lg

$11.99

$

In Stock, only 1 left!

0

29

MTD 736-0101

Washer, Flat, .406 x 1.00 x .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

30

MTD 738-0296

Scr., Shlder, .437 x .268, 5/16-18

$4.49

$

In Stock, Qty 20+

0

31

MTD 738-04012A

Screw, Shlder, .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

32

MTD 783-0209D

Lift Bracket, Seat

$16.99

$

In Stock, only 1 left!

0

33

MTD 783-04081A

Pivot Bracket, Seat

Variations

MTD 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

MTD 783-04081A-4008

Seat Pivot Bracket - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

34

MTD 757-04021A

Seat, Low Back
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

34

MTD 757-04020A

Seat, Medium Back
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

35

MTD 710-04482

Screw, 3/8-16, .875

$4.49

$

In Stock, Qty 16

0

36

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

38

MTD 783-04587A

Fender
(Superseded to 783-04587D)

Variations

MTD 783-04587A-0638

FENDER-TRANS LT-5 - MTD/TROY-BILT RED (0638)

$421.99

$

Usually ships in 3-6 days

0

MTD 783-04587A-0606

FENDER- SINGLE SPEED - MAJESTIC ORANGE (0606)

$421.99

$

Usually ships in 3-6 days

0

MTD 783-04587A-0650

FENDER - RED METALLIC (0650)

$421.99

$

Usually ships in 3-6 days

0

MTD 783-04587A-0665

FENDER-TRANS LT-5 - YARDMAN GREEN (0665)

$366.99

$

Usually ships in 3-6 days

0

MTD 783-04587A-0691

FENDER-TRANS LT-5 - BLACK JACK (0691)

$421.99

$

Usually ships in 3-6 days

0

MTD 783-04587A-0709

FENDER-TRANS LT-5 - MASTERCRAFT GREEN (0709)

$341.99

$

Usually ships in 3-6 days

0

MTD 783-04587A-0716

FENDER-TRANS LT-5 - CUB YELLOW-99 (0716)

$385.99

$

Usually ships in 3-6 days

0

MTD 783-04587A-0729

FENDER-TRANS LT-5 - STORM GRAY (0729)

$

$

Not available

$334.99

$

Usually ships in 3-6 days

0

39

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0
