13A326JC700 - Yard Machines Lawn Tractor (2017) Electrical Parts Diagram
Lawn Tractor

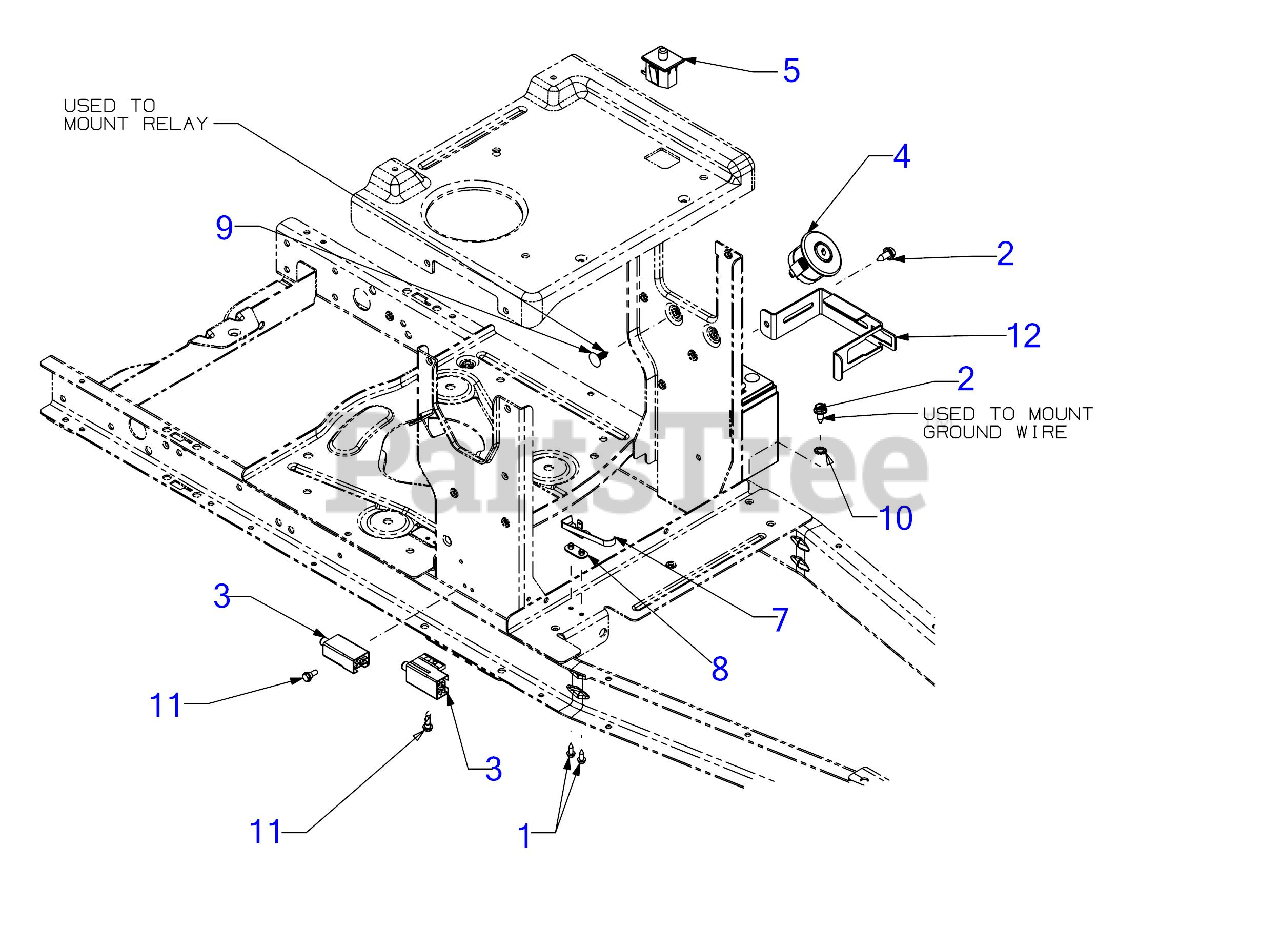

Electrical Parts Diagram
MTD 710-0227
HEX SCREW WASHER HD #8-18 x 0.500
$4.49
$
In Stock, Qty 20+
MTD 710-1652
SCREW 1/4-20X.625
$4.49
$
In Stock, Qty 20+
MTD 725-04363
INTERLOCK SWITCH (NO/NC)
$15.99
$
In Stock, Qty 10
MTD 925-04659
3 POSITION KEY SWITCH
$44.99
$
In Stock, Qty 20+
MTD 925-05013
SEAT SWITCH
$31.99
$
In Stock, only 4 left!
MTD 725-1643
SPRING SWITCH
$10.99
$
In Stock, only 1 left!
MTD 926-0320
INSULATOR PLATE
$6.99
$
In Stock, Qty 11
MTD 726-3046
RATCHET CLIP .250
$3.99
$
In Stock, Qty 6
$
$
Not available
MTD 738-04237A
SHOULDER SCREW
$6.49
$
In Stock, Qty 7
MTD 783-08015A-0637
BATTERY TRAY
$13.99
$
Usually ships in 3-6 days
MTD 925-06044B
HARNESS (6SPD/ELEC)
$110.99
$
Usually ships in 3-6 days
