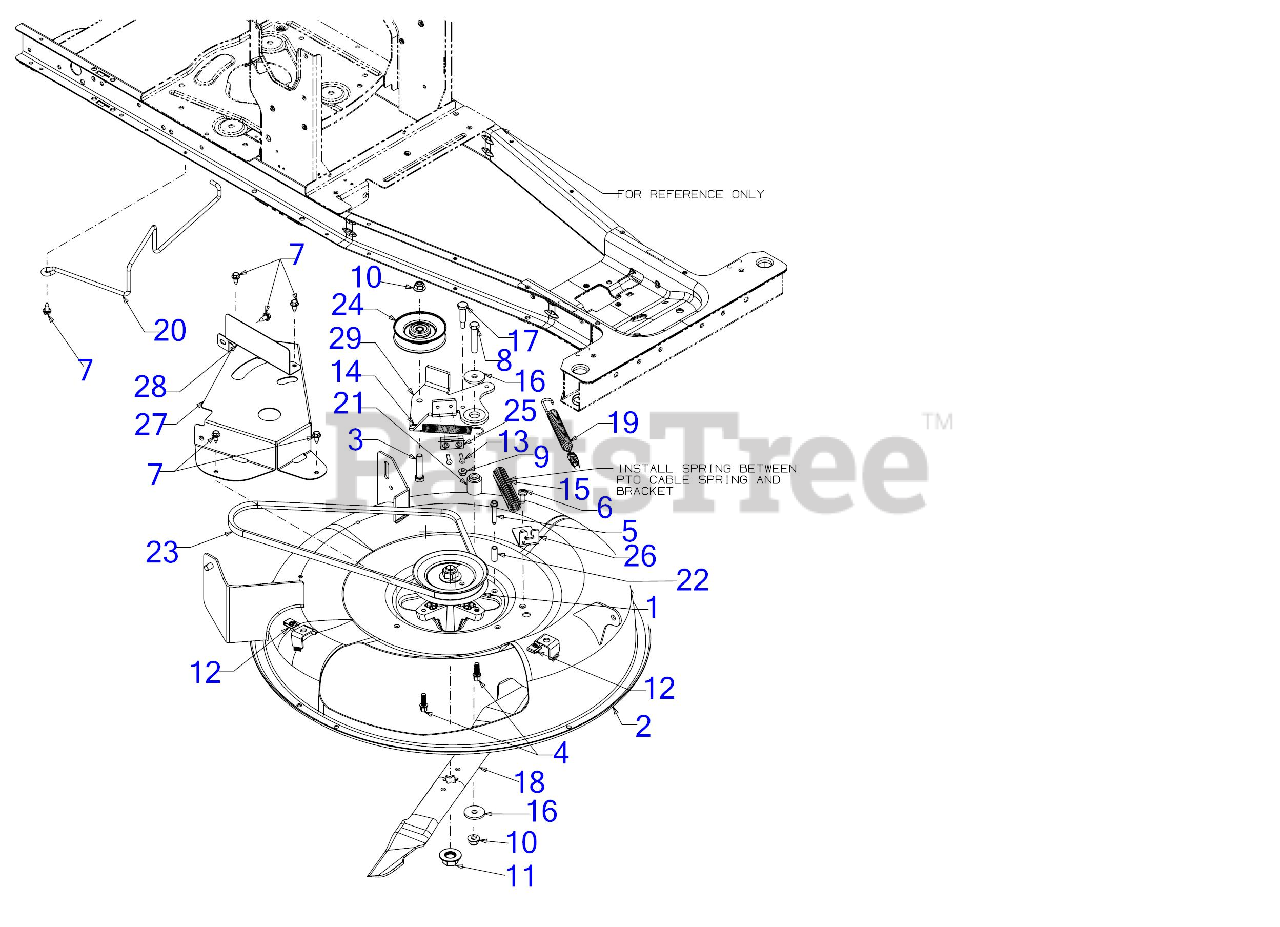

13A326JC700 - Yard Machines Lawn Tractor (2017) Deck Parts Diagram

Lawn Tractor

Deck Parts Diagram

  • Title

1

MTD 918-06032

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$88.99

$

Usually ships in 3-6 days

0

2

MTD 683-05008A

24" MOWER DECK
(Superseded to 983-05008B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-05008A-0637

DECK ASM-24" - POWDER BLACK (0637)

$209.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

3

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

4

MTD 710-06322

SCREW 5/16-18 X .875

$5.49

$

In Stock, Qty 5

0

5

MTD 710-0778

SCREW 1/4-20 x 1.50"

$4.49

$

In Stock, only 3 left!

0

6

MTD 710-1611B

SCREW 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

7

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 7

0

9

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

12

MTD 926-0211

U-NUT
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

13

MTD 928-0173

POP RIVET

$4.49

$

In Stock, only 4 left!

0

14

MTD 932-0470A

EXTENSION SPRING

$9.99

$

In Stock, Qty 7

0

15

MTD 732-0583

SPRING

$12.99

$

In Stock, only 1 left!

0

16

MTD 736-0320

WASHER

$6.99

$

In Stock, Qty 7

0

17

MTD 938-0572

SHOULDER SCREW
(Superseded to 738-0572)

$

$

Not available

18

MTD 942-0760

24" BLADE (3N1)
(Superseded to 742-0760A-0637)

$39.99

$

In Stock, Qty 13

0

19

MTD 946-05009

PTO CABLE

$42.99

$

In Stock, only 3 left!

0

20

MTD 747-06421

DECK BELT KEEPER

$16.99

$

Usually ships in 3-6 days

0

21

MTD 750-04859C

SHOULDER SPACER 18MM x 5.2MM

$6.49

$

Usually ships in 3-6 days

0

22

MTD 750-0566A

SPACER

$9.99

$

In Stock, only 1 left!

0

23

MTD 954-05001

V-BELT A x 43.5

$45.99

$

In Stock, Qty 20+

0

24

MTD 756-05004

PULLEY-3.54" DIA

$43.99

$

Usually ships in 3-6 days

0

25

MTD 761-04017

SPINDLE BRAKE PAD

$15.99

$

In Stock, Qty 16

0

26

MTD 783-06243

ENGAGEMENT CABLE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-06243-0637

Cable Engage Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 2 left!

0

MTD 783-06243-0638

Cable Engage Bracket - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, only 2 left!

0

MTD 783-06243-0606

Cable Engage Bracket - MAJESTIC ORANGE (0606)

$10.99

$

Usually ships in 3-6 days

0

MTD 783-06243-0691

Cable Engage Bracket - BLACK JACK (0691)

$10.99

$

Usually ships in 3-6 days

0

MTD 783-06243-0709

BRACKET-ENGAGE CABLE - MASTERCRAFT GREEN (0709)

$10.99

$

In Stock, only 2 left!

0

$9.99

$

Usually ships in 3-6 days

0

27

MTD 783-08136B-0637

SPINDLE COVER 24"

$39.99

$

Usually ships in 3-6 days

0

28

MTD 783-08151-0637

DECK SHIELD (LH)

$7.99

$

Usually ships in 3-6 days

0

29

MTD 783-08756

IDLER BRACKET DECK

$42.99

$

Usually ships in 3-6 days

0
