13A326JC700 - Yard Machines Lawn Tractor (2016) Fender Parts Diagram

Lawn Tractor

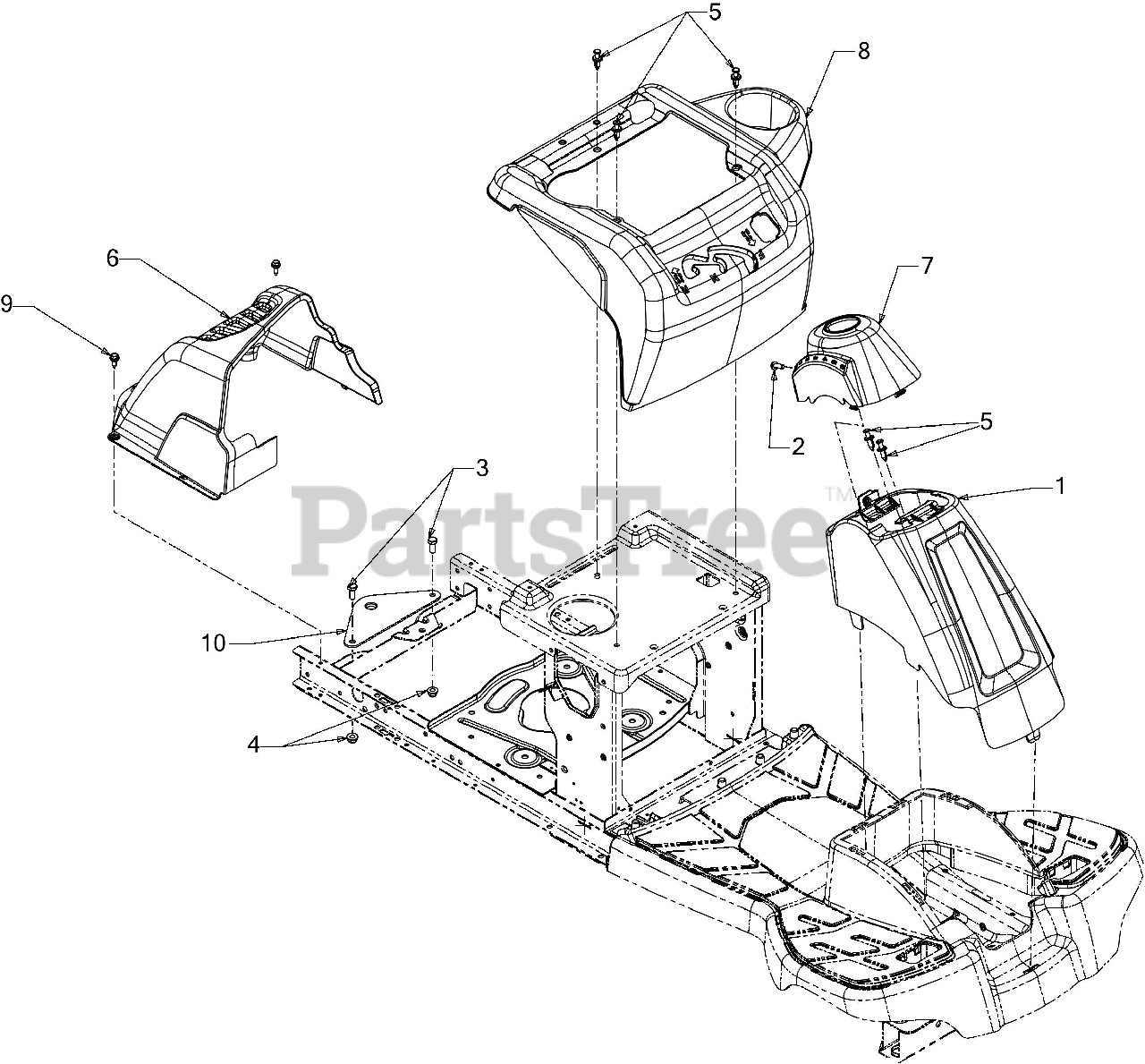

Fender Parts Diagram

  • Title
1

MTD 631-05038

COLUMN COVER ASSEMBLY (MTD RED)

$33.99

$

Usually ships in 3-6 days

0

1

MTD 712-04092

U NUT

Note: Not Shown

$5.99

$

In Stock, only 2 left!

0

2

MTD 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 20+

0

6

MTD 731-09318

DRIVE COVER

$38.99

$

In Stock, only 1 left!

0

7

MTD 731-09382

COLUMN STEERING CAP

$14.99

$

Usually ships in 3-6 days

0

8

MTD 931-09396

FENDER
(Superseded to 931-09396B)

$48.99

$

Usually ships in 3-6 days

0

9

MTD 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 11

0

10

MTD 783-07208-0637

HITCH PLATE
(Superseded to 783-07208A-0637)

$8.49

$

Usually ships in 3-6 days

0
