13A326JC700 - Yard Machines Lawn Tractor (2015) Deck Lift Parts Diagram

Lawn Tractor

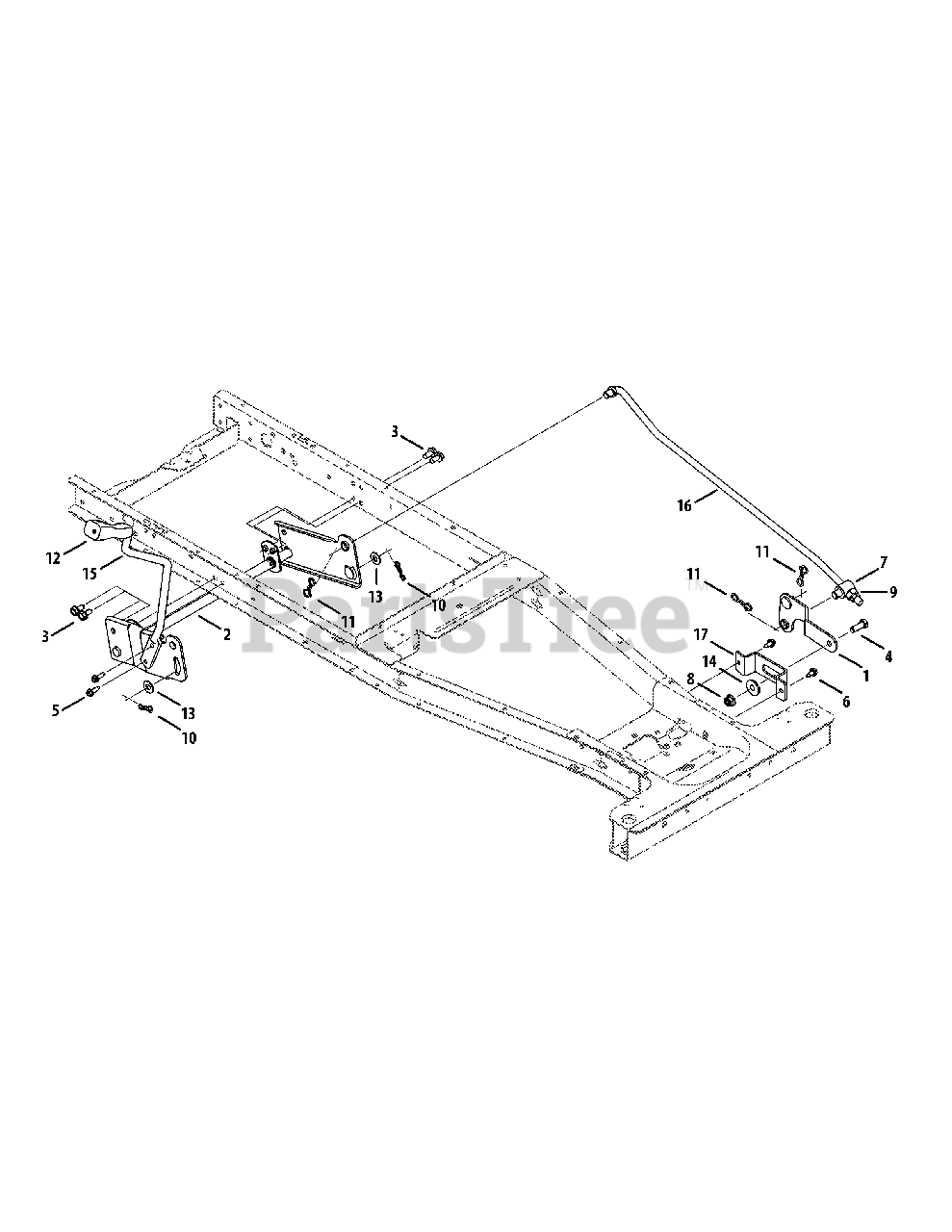

Deck Lift Parts Diagram

  • Title

1

MTD 683-05011-0637

Front Hanger Bracket Assembly

$19.99

$

Usually ships in 3-6 days

0

2

MTD 683-05018-0637

Lift Assembly Shaft

$42.99

$

Usually ships in 3-6 days

0

3

MTD 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0514

Hex Head Screw, 3/8-16, 1.00

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0642

Tap Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1652

Tap Screw, 1/4-20 X .625

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-05690C

Ferrule, .50 X .50

$11.99

$

Usually ships in 3-6 days

0

8

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04243

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

11

MTD 714-04043

Bow-Tie Cotter Pin, 91

$4.99

$

In Stock, Qty 18

0

12

MTD 720-0311

Grip Handle, 1/2

$15.99

$

In Stock, only 1 left!

0

13

MTD 936-0300

Flat Washer, .406 X .875 X .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

14

MTD 938-0347

Shoulder Spacer, .625 ID X .169

$10.99

$

Usually ships in 3-6 days

0

15

MTD 747-05576-0637

Deck Lift Rod

$29.99

$

In Stock, only 4 left!

0

16

MTD 747-06009

Lift Link Rod

$36.99

$

Usually ships in 3-6 days

0

17

MTD 783-08073B-0637

Front Deck Mounting Bracket

$12.99

$

Usually ships in 3-6 days

0
