13A326JC058 - Murray Mini-Rider Lawn Tractor (2013) Drive System Parts Diagram

Mini-Rider Lawn Tractor

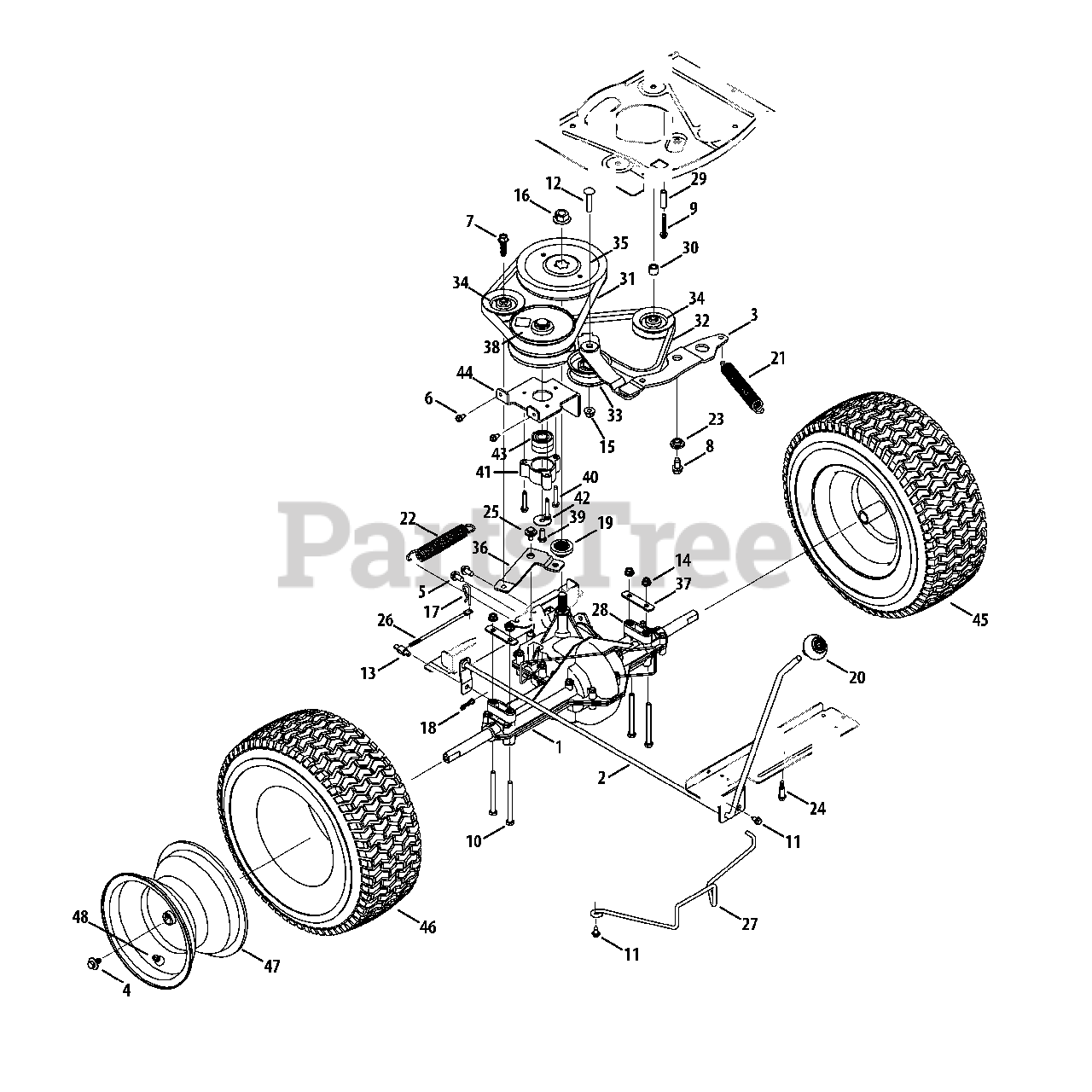

Drive System Parts Diagram

  • Title

1

MTD 918-05056A

Transmission Assembly
(Superseded to 918-05056C)

$636.99

$

In Stock, only 1 left!

0

2

MTD 647-05031

Shift Handle Assembly
(Superseded to 647-05114)

$48.99

$

In Stock, only 1 left!

0

3

MTD 683-04768A-0637

Drive Assembly Idler

$19.99

$

In Stock, only 1 left!

0

4

MTD 710-05339

Screw, 5/16-24 x .750
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0599

Tap Scew, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-06016

Screw, 3/8-16 x 1.375

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-0623

Tap Screw, 3/8-16, 0.750

$4.49

$

In Stock, only 2 left!

0

9

MTD 710-1026

Screw, 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

10

MTD 710-1266

Hex Cap Screw, 5/16-18 x 3.5, Gr5

$9.99

$

Usually ships in 3-6 days

0

11

MTD 710-1652

Tap Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0560

Screw, Carriage: 3/8-16 x 1.75"

$6.99

$

In Stock, Qty 11

0

13

MTD 711-06141

Adjustable Ferrule, 1/4-20 X 1.00

$42.99

$

Usually ships in 3-6 days

0

14

MTD 712-04063

Flange Locknut, 5/16-18

$3.99

$

In Stock, Qty 5

0

15

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 1 left!

0

17

MTD 914-0209

Internal Cotter Pin, .125 Dia.

$3.99

$

In Stock, only 2 left!

0

18

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

19

MTD 718-04407

Pulley Hub, 5/8 Spline

$12.99

$

In Stock, Qty 20+

0

20

MTD 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

21

MTD 732-0459C

Extension Spring, .94 Dia. X 6.74 Lg.

$18.99

$

In Stock, only 3 left!

0

22

MTD 732-04934

Extension Spring, .97 OD X 6.18

$7.99

$

In Stock, only 1 left!

0

23

MTD 738-0372B

Shoulder Spacer, 1.00 X .38 X .38

$9.49

$

In Stock, Qty 20+

0

24

MTD 738-05016

Shoulder Screw, .368 x .75, 1/4-20
(Superseded to 738-05016A)

$3.99

$

In Stock, only 1 left!

0

25

MTD 738-05019

Shoulder Screw, .560 x .165, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

26

MTD 747-05593

Shift Rod

$5.99

$

In Stock, only 4 left!

0

27

MTD 747-06126

Deck Belt Keeper, 30"
(Superseded to 747-06126A)

$17.99

$

Usually ships in 3-6 days

0

28

MTD 948-0334

Spacer

$10.99

$

In Stock, only 1 left!

0

29

MTD 750-04456

Spacer, .260 X .372 X 1.420

$7.49

$

In Stock, only 3 left!

0

30

MTD 750-05563

Spacer, .385 x .625 x .500

$7.49

$

Usually ships in 3-6 days

0

31

MTD 954-0241A

V-Belt, 5L:35.25
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 6

0

32

MTD 954-04331

V-Belt, 5L:35.28

$45.99

$

In Stock, only 3 left!

0

33

MTD 756-04224

Flat Idler Pulley, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

34

MTD 756-04325

V-Type Idler Pulley, 3.06

$24.99

$

In Stock, Qty 20+

0

35

MTD 756-04464

V-Type Pulley, 6.56

$20.99

$

Usually ships in 3-6 days

0

36

MTD 783-07248A

Rear Idler Arm Bracket

$8.49

$

In Stock, only 1 left!

0

37

MTD 783-08131-0637

Transaxle Mounting Bracket

$4.49

$

Usually ships in 3-6 days

0

38

MTD 956-04015A

Variable Speed Pulley Assembly
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

39

MTD 710-0627

Hex Head Lock Screw, 5/16-24:.750

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0778

Tap Screw, 1/4-20:1.500

$4.49

$

In Stock, only 1 left!

0

41

MTD 718-04261

Bearing Cup

$20.99

$

In Stock, only 1 left!

0

42

MTD 736-0362

Flat Washer, .330x1.250x.060

$4.49

$

In Stock, Qty 7

0

43

MTD 941-0600

Ball Bearing, 17 X 40 X 12

$25.99

$

In Stock, Qty 20+

0

44

MTD 783-08210

Variable Bracket
(Superseded to 783-08210A)

Variations

MTD 783-08210-0637

Bracket, Vari Cr12 - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

45

MTD 634-0139-0911

Complete Wheel Assembly

$319.99

$

Usually ships in 3-6 days

0

46

MTD 734-04641

Tire, 16 x 6.5 x 8 Sq. Shldr.
(Superseded to 734-1727)

$56.99

$

Usually ships in 3-6 days

0

47

MTD 934-04319-0662

Rim Assembly, 8.0 x 5.38

$49.99

$

Usually ships in 3-6 days

0

48

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0
