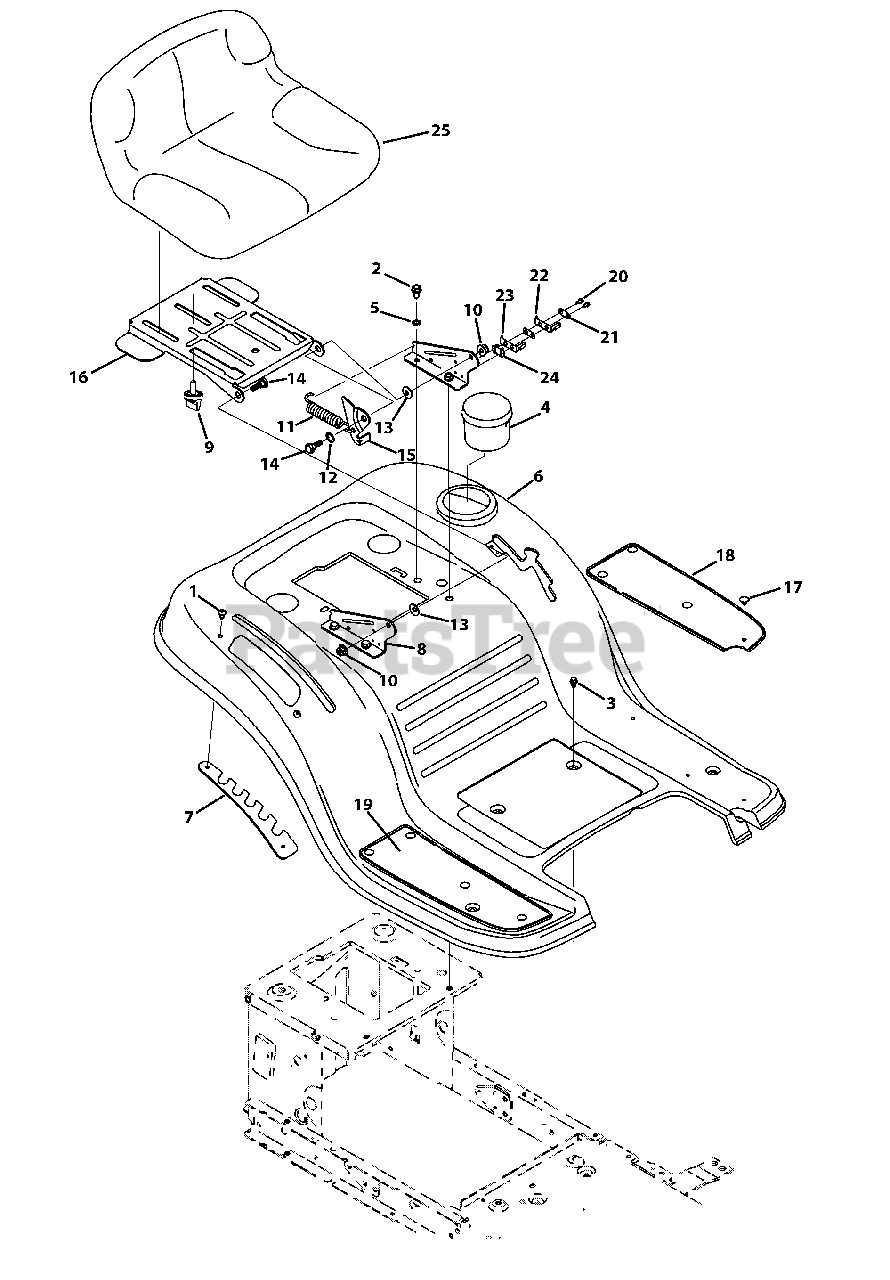

13A279KS066 - Troy-Bilt Super Bronco Lawn Tractor (2013) Seat & Fender Parts Diagram

Super Bronco Lawn Tractor

Seat & Fender Parts Diagram

  • Title

1

Troy-Bilt 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

2

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 736-0607

Loack Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 783-04593E

Fender
(Superseded to 783-04593F)

Variations

Troy-Bilt 783-04593E-0606

FENDER-HYDRO LT-5 - MAJESTIC ORANGE (0606)

$325.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04593E-0638

FENDER-HYDRO LT-5 - MTD/TROY-BILT RED (0638)

$402.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04593E-0650

FENDER-HYDRO LT-5 - RED METALLIC (0650)

$325.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04593E-0665

FENDER-HYDRO LT-5 - YARDMAN GREEN (0665)

$325.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04593E-0691

FENDER-HYDRO LT-5 - BLACK JACK (0691)

$402.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04593E-0709

FENDER-HYDRO LT-5 - MASTERCRAFT GREEN (0709)

$325.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04593E-4033

FENDER-HYDRO LT-5 - FLINT MICA (4033)

$402.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04593E-4043

FENDER-HYDRO LT-5 - CRAFTSMAN METALLIC GRAY (4043)

$325.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04593E-4044

FENDER-HYDRO LT-5 - CRAFTSMAN RED (4044)

$374.99

$

Usually ships in 3-6 days

0

$325.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 783-04843-0637

Lift Adjuster Bracket

$37.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 783-1489D-0637

Seat Mount Bracket

$23.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 720-04061

Knob

$5.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 732-1184

Extension Spring

$11.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 936-0108

Flat Washer, .510x .750 x .033

$6.99

$

In Stock, only 4 left!

0

13

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 783-0209D

Lift Seat Bracket

$16.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 783-04081D-0637

Pivot Seat Manual Adjust Bracket

$41.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 726-3046

Ratchet Clip, .250 x .500

$3.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 735-04047

Foot Pad, LH

$18.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 735-04048

Foot Pad, RH

$19.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

22

Troy-Bilt 925-1303

Outer Seat SPring

$6.49

$

In Stock, Qty 7

0

23

Troy-Bilt 725-1439

Inner Seat Spring

$8.49

$

In Stock, Qty 10

0

24

Troy-Bilt 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

25

Troy-Bilt 757-04083A

Med. Back Seat, Black
(Superseded to 757-05229)

$231.99

$

Usually ships in 3-6 days

0
