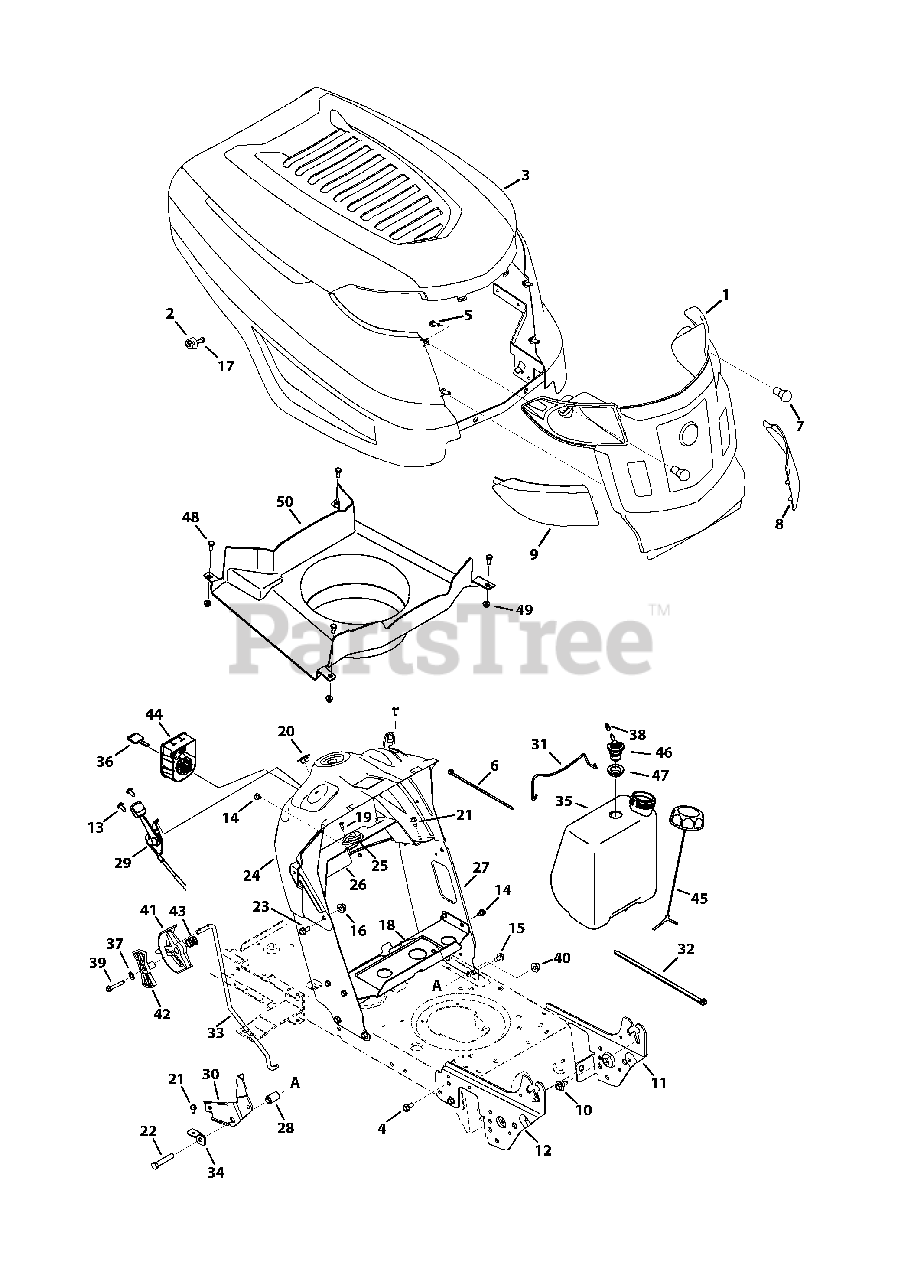

13A279KS066 - Troy-Bilt Super Bronco Lawn Tractor (2013) Hood Parts Diagram

Super Bronco Lawn Tractor

Hood Parts Diagram

  • Title

1

Troy-Bilt 631-04272

Grill Assembly, Troy-Bilt

$70.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 731-06404

K-Style Bumper

$9.49

$

In Stock, only 1 left!

0

3

Troy-Bilt 683-04441A-0638

Hood Assembly

$356.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 925-0963

Lamp

$7.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 731-06095

Left Lens

$12.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 731-06096

Right Lens

$12.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 738-04091A

Shoulder Screw, 5/16-18 x .43 x .29

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 783-05327B-0637

Left Support Pivot Bracket

$40.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-05328A-0637

Right Support Pivot Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-04483

Screw, 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

15

Troy-Bilt 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

17

Troy-Bilt 710-05281

Screw, #12-16 x 1.25

$3.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 783-07083-0637

Gas Tank Support Bracket
(Superseded to 783-07083A-0637)

$28.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 910-0224

Screw, #10-16 x .500

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-1652

Tap Screw, 1/4-20, 0.625

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-3144

Hex Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

24

Troy-Bilt 931-08054

Dash, Upper
(Superseded to 931-08054A)

$51.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 741-0587

Bearing, .628 ID x 1.36

$4.49

$

In Stock, Qty 10

0

26

Troy-Bilt 783-06785A-0637

Bracket, Steering Support
(Superseded to 783-06785C-0637)

$9.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 783-06811-0637

Dash, Lower
(Superseded to 783-06811F-0637)

$53.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 750-04465B

Flange Spacer, .390 x .671 x 1.095

$4.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 746-04367

Throttle/Choke Cable
(Superseded to 946-04367A)

$40.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 783-06991-0637

Speed Latch - No RMC

$9.49

$

In Stock, only 1 left!

0

31

Troy-Bilt 683-04448-0637

Battery Assembly Rod

$10.99

$

In Stock, Qty 14

0

32

Troy-Bilt 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 747-05398

Speed Control Rod

$11.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 783-06823

Speed Latch Tab

$17.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 951-04304

1.36 Gallon Fuel Tank
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 625-05002

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 736-3006

Lock Washer, 1/4

$6.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 751-12089-28

Hose Vent, 3/16 EPA

$8.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 710-0778

Hex Washer Screw, 1/4-20 x 1.50

$4.49

$

In Stock, only 1 left!

0

40

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 731-07885B

Shift Lever

$11.99

$

In Stock, only 3 left!

0

42

Troy-Bilt 731-07966A

Index Control

$6.49

$

In Stock, only 1 left!

0

43

Troy-Bilt 732-04877

Compr. Spring, .72 OD x .78

$4.49

$

In Stock, only 2 left!

0

44

Troy-Bilt 925-04659

3 Position Key Switch

$44.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 951-12179A

Fuel Cap, 2.25"
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 735-04081

Rubber Grommet, 23 x 3.55

$4.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 931-09328

Plenum

$

$

Not available

Troy-Bilt 925-04567G

Harness, NRMC, Dual
(Superseded to 925-04567K)

Note: (No RMC® (Reverse Mowing Control) (not shown)

$133.99

$

In Stock, only 2 left!

0
