13A2775S000 - Yard Machines Lawn Tractor (2013) Seat & Fender Parts Diagram

Lawn Tractor

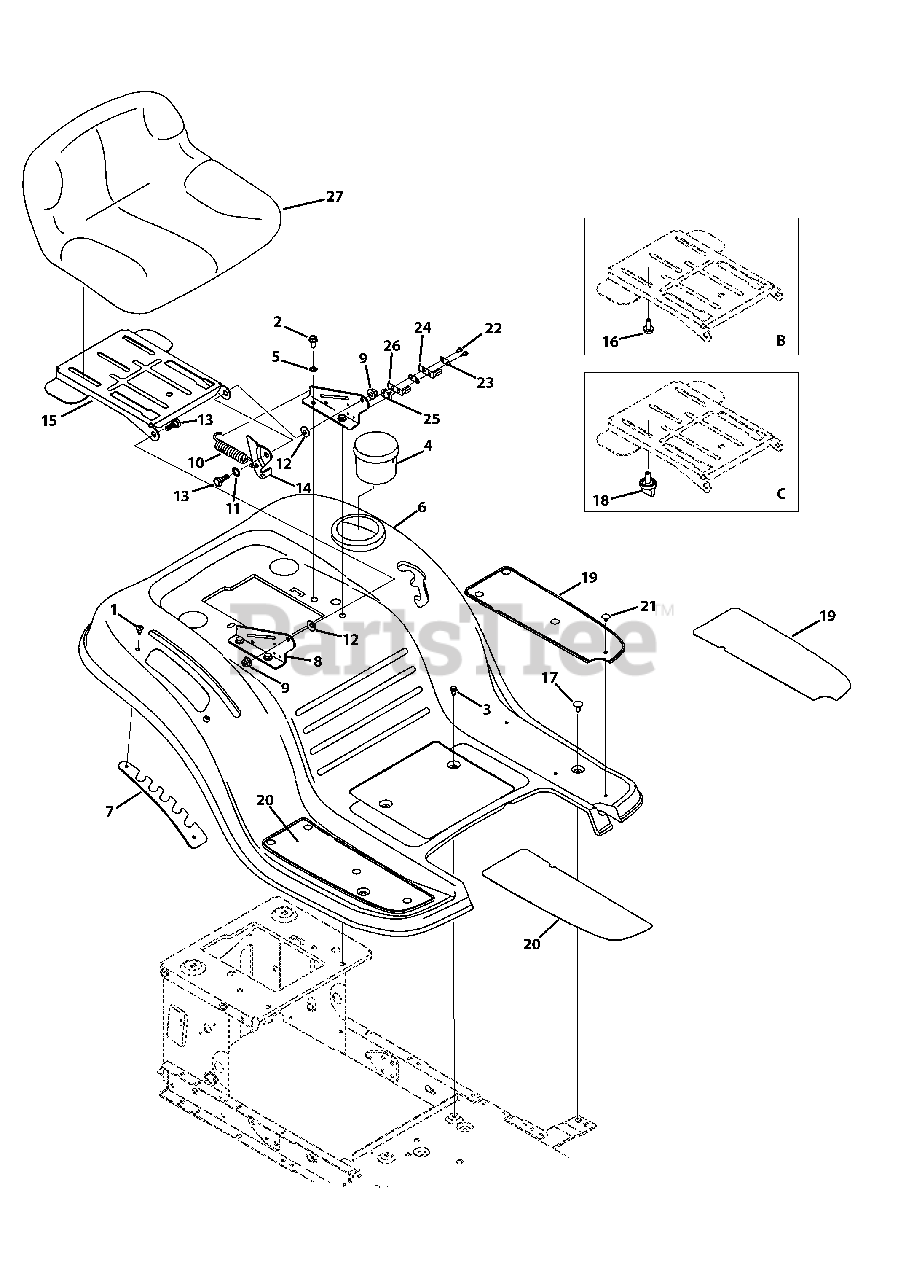

Seat & Fender Parts Diagram

  • Title

1

MTD 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

2

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

5

MTD 736-0607

Loack Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

6

MTD 783-04587D-0638

Fender
(Superseded to 783-04587E-0638)

$421.99

$

Usually ships in 3-6 days

0

7

MTD 783-04843-0637

Lift Adjuster Bracket

$37.99

$

Usually ships in 3-6 days

0

8

MTD 783-1489D-0638

Seat Mount Bracket
(Superseded to 783-1489D-0637)

$23.99

$

In Stock, only 1 left!

0

9

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 732-1184

Extension Spring

$11.99

$

In Stock, only 1 left!

0

11

MTD 936-0108

Flat Washer, .510x .750 x .033

$6.99

$

In Stock, only 4 left!

0

12

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

13

MTD 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

14

MTD 783-0209D

Lift Seat Bracket

$16.99

$

In Stock, only 1 left!

0

15

MTD 783-04081D-0638

Pivot Seat Manual Adjust Bracket
(Superseded to 783-04081D-0637)

$41.99

$

In Stock, only 1 left!

0

16

MTD 710-04482

Hex Head Flange, 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0134

Screw Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

18

MTD 720-04061

Knob, 3/8-16 x .875

$5.49

$

In Stock, Qty 20+

0

19

MTD 735-04047

Foot Pad, LH

$18.99

$

In Stock, only 1 left!

0

19

MTD 723-04026

Foot Pad, Abrasive, LH

$33.99

$

Usually ships in 3-6 days

0

20

MTD 735-04048

Foot Pad, RH

$19.99

$

In Stock, only 3 left!

0

20

MTD 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

21

MTD 726-3046

Ratchet Clip, .250 x .500

$3.99

$

In Stock, only 4 left!

0

22

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

23

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

24

MTD 925-1303

Outer Seat SPring

$6.49

$

In Stock, Qty 7

0

25

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

26

MTD 725-1439

Inner Seat Spring

$8.49

$

In Stock, Qty 10

0

27

MTD 757-04083A

Medium Back Seat, Black, Set-up B
(Superseded to 757-05229)

$231.99

$

Usually ships in 3-6 days
