13A2695G062 - Yard Machines Lawn Tractor (1997) (Lowes) Drive/Frame/Pedal Assembly/Wheels, Rear Parts Diagram

Lawn Tractor

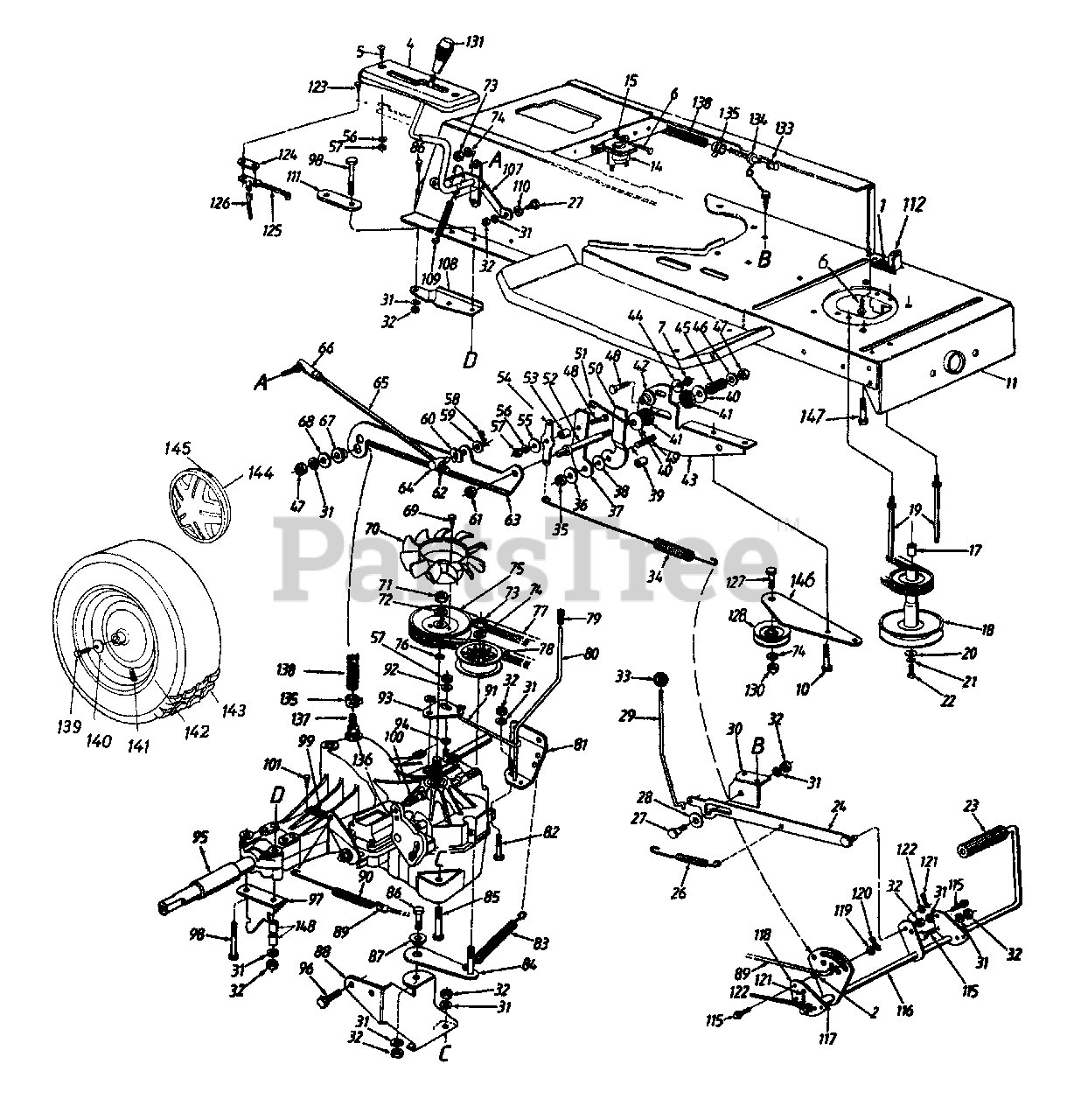

Drive/Frame/Pedal Assembly/Wheels, Rear Parts Diagram

  • Title

1

MTD 732-0750A

Spring Switch
(Superseded to 932-0750A)

Note: New Part

$21.99

$

Usually ships in 3-6 days

0

2

MTD 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

4

MTD 731-1734

Index Bracket
(Superseded to 931-1734)

Note: New Part

$

$

Not available

5

MTD 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

?8

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

MTD 710-0195

Hex . Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

11

MTD 783-0310C

Lower Frame Ass'y.
(Superseded to 783-0310F-0637)

Note: New Part

Variations

MTD 783-0310C-0637

FRAME-LOWER 600 - POWDER BLACK (0637)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-0310C-0665

FRAME-LOWER 600 - YARDMAN GREEN (0665)

$148.99

$

Usually ships in 3-6 days

0

MTD 783-0310C-0483

FRAME-LOWER 600 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0310C-0638

FRAME-LOWER 600 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0310C-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

$159.99

$

Usually ships in 3-6 days

0

14

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

15

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

17

MTD 750-0956

Spacer

$19.99

$

In Stock, only 2 left!

0

18

MTD 756-0983

Engine Pulley
(Superseded to 756-0983B)

$83.99

$

Usually ships in 3-6 days

0

19

MTD 711-1044

Belt Guard Stud 4.75" Lg.
(Superseded to 711-1044A)

$8.99

$

In Stock, Qty 10

0

20

MTD 736-0322

Fl-Wash. 7/16" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 8

0

21

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

22

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

23

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

24

MTD 683-0049

Brake Lockout Brkt. Ass'y.
(Superseded to 683-0049-0637)

Variations

MTD 683-0049-0637

Brake Lock Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 732-0728

Foot Pedal Return Spring

$11.99

$

Usually ships in 3-6 days

0

27

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0406

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

29

MTD 747-0608A

Lock-up Rod

Note: New Part

$

$

Not available

30

MTD 17755A

Bracket

$

$

Not available

31

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 720-0166

Ball Knob

$

$

Not available

34

MTD 732-0727

Neutral Return Spring
(Superseded to 932-0727)

$10.99

$

In Stock, only 1 left!

0

35

MTD 712-0273

Hex Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

36

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, only 3 left!

0

37

MTD 783-0092

Scissor-Flat

$

$

Not available

38

MTD 736-0362

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 8

0

39

MTD 750-0808

Spacer

$

$

Not available

40

MTD 736-0219

Bell-Wash, .4" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

41

MTD 761-0196

Friction Washer
(Superseded to 961-0196)

$9.49

$

Usually ships in 3-6 days

0

42

MTD 750-0918

Centering Gauge Spacer

$

$

Not available

43

MTD 783-0095

Neutral Return Mtg. Brkt.

$

$

Not available

44

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

45

MTD 732-0718

Comp. Spring 1,19" Lg.

$

$

Not available

46

MTD 736-3092

Fl-Wash. .26" I.D. x .72" O.D.

$3.99

$

In Stock, Qty 9

0

47

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

48

MTD 710-0299

Hex Bolt 1/4-28 x 1" Lg. (Gr. 5)

$4.49

$

Usually ships in 3-6 days

0

49

MTD 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

50

MTD 783-0093

Scissor-Offset

$

$

Not available

51

MTD 747-0887

Neutral Return Rod

$

$

Not available

52

MTD 738-0879

Friction Disc Stud
(Superseded to 938-0879)

$15.99

$

Usually ships in 3-6 days

0

53

MTD 748-0368

Shld. Spacer

$

$

Not available

54

MTD 783-0096

Neutral Return Lever

$

$

Not available

55

MTD 736-3092

Fl-Wash. .265" I.D. x 1" O.D.

$3.99

$

In Stock, Qty 9

0

56

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

57

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

58

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0262

Fl-Wash. .375" I.D. x .87" O.D.

$3.99

$

Usually ships in 3-6 days

0

60

MTD 736-0413

Spring Wash. .39" I.D.

$6.99

$

In Stock, only 2 left!

0

61

MTD 712-0116

Hex L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

62

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

63

MTD 783-0090A

Neutral Return Brkt.

$

$

Not available

64

MTD 711-0832

Ferrule 3/8-24 Thd.
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

65

MTD 747-0365

Control Rod
(Superseded to 747-0365A)

$

$

Not available

66

MTD 723-0351

Ball Joint 3/8-24 Thd.
(Superseded to 923-0351)

$44.99

$

Usually ships in 3-6 days

0

67

MTD 748-0234

Shld. Spacer.5" Dia. x .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

68

MTD 736-0159

R-Wash. .349" I.D. x .879" O.D.

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-3007

Hex Tap Scr. #12 x 3/8" Lg.

$4.49

$

In Stock, Qty 20+

0

70

MTD 731-1449

Fan
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 9

0

71

MTD 712-0333

Hex Nut 1/2-20 Thd.
(Superseded to 912-0333)

$

$

Not available

72

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

73

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

74

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

75

MTD 756-0975

Transmission Pulley

$77.99

$

Usually ships in 3-6 days

0

76

MTD 732-0729

Wire Ring

$4.99

$

In Stock, Qty 5

0

77

MTD 754-0441

V-Belt
(Superseded to 954-0441)

$53.99

$

In Stock, only 1 left!

0

78

MTD 756-0981

Fl-Idler Pulley 2.75" O.D.
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

79

MTD 720-0238

Rod End Grip

$3.99

$

In Stock, only 1 left!

0

80

MTD 747-0894

Bypass Control Lever

$

$

Not available

81

MTD 783-0085

Transaxle Support Brkt.--L.H.

Variations

MTD 783-0085-0637

Transaxle Support Brkt. - L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

83

MTD 732-0384

Ext. Spring 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

84

MTD 683-0051

Idler Brkt. Ass'y.
(Superseded to 983-0051)

Variations

MTD 683-0051-0637

Idler Bracket Assembly - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

85

MTD 710-0116

Hex Bolt 5/16-18 x 2.5" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

86

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

87

MTD 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

88

MTD 783-0086A

Transaxle Support Brkt.--R.H.

Variations

MTD 783-0086A-0637

Transaxle Support Brkt. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

89

MTD 747-0886

Brake Rod 24.94" Lg.

$

$

Not available

90

MTD 732-0716

Ext. Spring
(Superseded to 732-0716D)

$13.99

$

In Stock, only 2 left!

0

91

MTD 747-0893

Bypass Actuator Rod

$

$

Not available

92

MTD 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, only 4 left!

0

93

MTD 783-0098

Bypass Adjustment Brkt.

$

$

Not available

94

MTD 736-0222

External L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

95

MTD 731-1086A

Sleeve .758" I.D. x 1" O.D.

$10.99

$

In Stock, only 1 left!

0

96

MTD 710-0604

Hex . TT-Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

97

MTD 17994

Retainer Brkt.-Transaxle
(Superseded to 17994-0637)

Variations

MTD 17994-0637

BRACKET-TRANS RETA - POWDER BLACK (0637)

$

$

Not available

$

$

98

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

MTD 710-3195

Hex Bolt 5/16-18 x 4.5" Lg.

Note: (Used w/46" Deck)

$7.49

$

Usually ships in 3-6 days

0

99

MTD 732-0250

Tension Spring
(Superseded to HG-50384)

$

$

Not available

100

MTD 710-0888

Hex Bolt 5/16-24 x 1" Lg.

$4.49

$

In Stock, Qty 5

0

101

MTD 710-0224

Hex Wash. Hd. AB-Tap Scr.
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

107

MTD 647-0008A

Speed Control Lever Ass'y.

$

$

Not available

108

MTD 17668

Axle Support Brkt.-R.H.
(Superseded to 17668A-0637)

Variations

MTD 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17669

Axle Support Brkt.-L.H.
(Superseded to 17669A-0637)

Variations

MTD 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

109

MTD 732-0433

Ext. Spring 2.75" Lg.

$

$

Not available

110

MTD 736-0141

Spr-Wash. .445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

111

MTD 17840

Transaxle Mtg. Brkt.
(Superseded to 17840-0637)

Variations

MTD 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

112

MTD 725-1657A

Safety Switch (Clutch)
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

115

MTD 710-0650

Hex TT-Tap Scr. 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

116

MTD 683-0123

Clutch/Brake Pedal Ass'y.

Note: New Part

Variations

MTD 683-0123-0483

PEDAL-ASSY BRAKE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 683-0123-0637

PEDAL-ASSY BRAKE - POWDER BLACK (0637)

$

$

Not available

MTD 683-0123-0638

PEDAL-ASSY BRAKE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0123-0650

PEDAL-ASSY BRAKE - RED METALLIC (0650)

$

$

Not available

MTD 683-0123-0662

PEDAL-ASSY BRAKE - OYSTER GRAY (0662)

$

$

Not available

MTD 683-0123-0665

PEDAL-ASSY BRAKE - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0123-0691

PEDAL-ASSY BRAKE - BLACK JACK (0691)

$

$

Not available

$

$

117

MTD 750-0802

Spacer .63" I.D.

$6.99

$

Usually ships in 3-6 days

0

118

MTD 17860

Pedal Bracket
(Superseded to 17860-0637)

Variations

MTD 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

119

MTD 736-3008

Fl-Wash. .344" I.D. x .75" O.D.
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

120

MTD 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

121

MTD 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

122

MTD 736-0140

R-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

123

MTD 710-0227

Hex AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 15

0

124

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

125

MTD 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

126

MTD 725-1399

Extension Wire

$

$

Not available

127

MTD 710-0520

Hex Bolt 3/8-16 x 1.5" Lg.

$4.49

$

In Stock, Qty 6

0

128

MTD 756-0116

Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

?129

MTD 736-0280

Fl-Wash. .39" I.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

130

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

131

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

133

MTD 731-1481

Vent Cap

$10.99

$

Usually ships in 3-6 days

0

134

MTD 731-1480

Plastic Vent

$15.99

$

Usually ships in 3-6 days

0

135

MTD 726-0324

Clamp
(Superseded to 926-0324)

$7.49

$

Usually ships in 3-6 days

0

136

MTD 721-0330

O-Ring

$3.49

$

Usually ships in 3-6 days

0

137

MTD 731-1485

Hose Fitting

$

$

Not available

138

MTD 751-0588-18

Fuel Line 18" Lg.

$31.99

$

Usually ships in 3-6 days

0

139

MTD 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

140

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

?141

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

142

MTD 634-0070

Rim Only 20" x 8" (Round and Square Shoulder)
(Superseded to 634-04369)

Variations

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

143

MTD 734-1675

Wheel Ass'y. Comp. (Round Shoulder)

Variations

MTD 734-1675-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

Usually ships in 3-6 days

0

MTD 734-1675-0911

WHEEL ASSY 20 X 8 - Carlisle Gray (0911)

$447.99

$

Usually ships in 3-6 days

0

MTD 734-1675-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 734-1675-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-1675-0914

WHEEL ASSY 20 X 8 - Cheng Gray (0914)

$

$

Not available

MTD 734-1675-0931

WHEEL ASSY 20 X 8 - Carlisle Beige (0931)

$

$

Not available

MTD 734-1675-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

MTD 734-1675-0944

No Longer Available WHEEL ASM - Cheng Yellow (0944)

$

$

Not available

MTD 734-1675-0981

WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

MTD 734-1675-0985

No Longer Available WHEEL ASSY 20X8X8 - Duro Green (0985)

$

$

Not available

$420.99

$

Usually ships in 3-6 days

0

MTD 734-1696

Tire Only (Round Shoulder)
(Superseded to 734-1861)

$70.99

$

Usually ships in 3-6 days

0

143

MTD 634-0104

Wheel Ass'y. Comp. (Square Shoulder)

Variations

MTD 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0912

WHEEL ASSY 20X8 - Dico Gray (0912)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0914

WHEEL ASSY 20X8 - Cheng Gray (0914)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0942

WHEEL ASSY 20X12 - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4009

WHEEL ASSY 20X14 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

MTD 734-1730

Tire Only (Square Shoulder)

Variations

MTD 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

144

MTD 734-1615A

Hub Cap (Gray)

Note: (Optional)

$32.99

$

Usually ships in 3-6 days

0

MTD 734-1614A

Hub Cap (Beige)

Note: (Optional)

$

$

Not available

MTD 734-1788A

Hub Cap (Yellow)
(Superseded to 934-1788A)

Note: (Optional)

$34.99

$

Usually ships in 3-6 days

0

145

MTD 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

146

MTD 783-0099

Idler Bracket

Variations

MTD 783-0099-0637

Idler Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

147

MTD 710-1315

Hex TT-Tap Scr. 3/8-16 x 1.25"

$4.49

$

In Stock, only 3 left!

0

148

MTD 750-0258

Spacer .32" I.D. x .75" O.D.

Note: (Used w/46" Deck)

$11.99

$

In Stock, only 1 left!

0
