13A226JD000 - Yard Machines Lawn Tractor (2012) Seat, Fuel Tank & Electrical Parts Diagram

Lawn Tractor

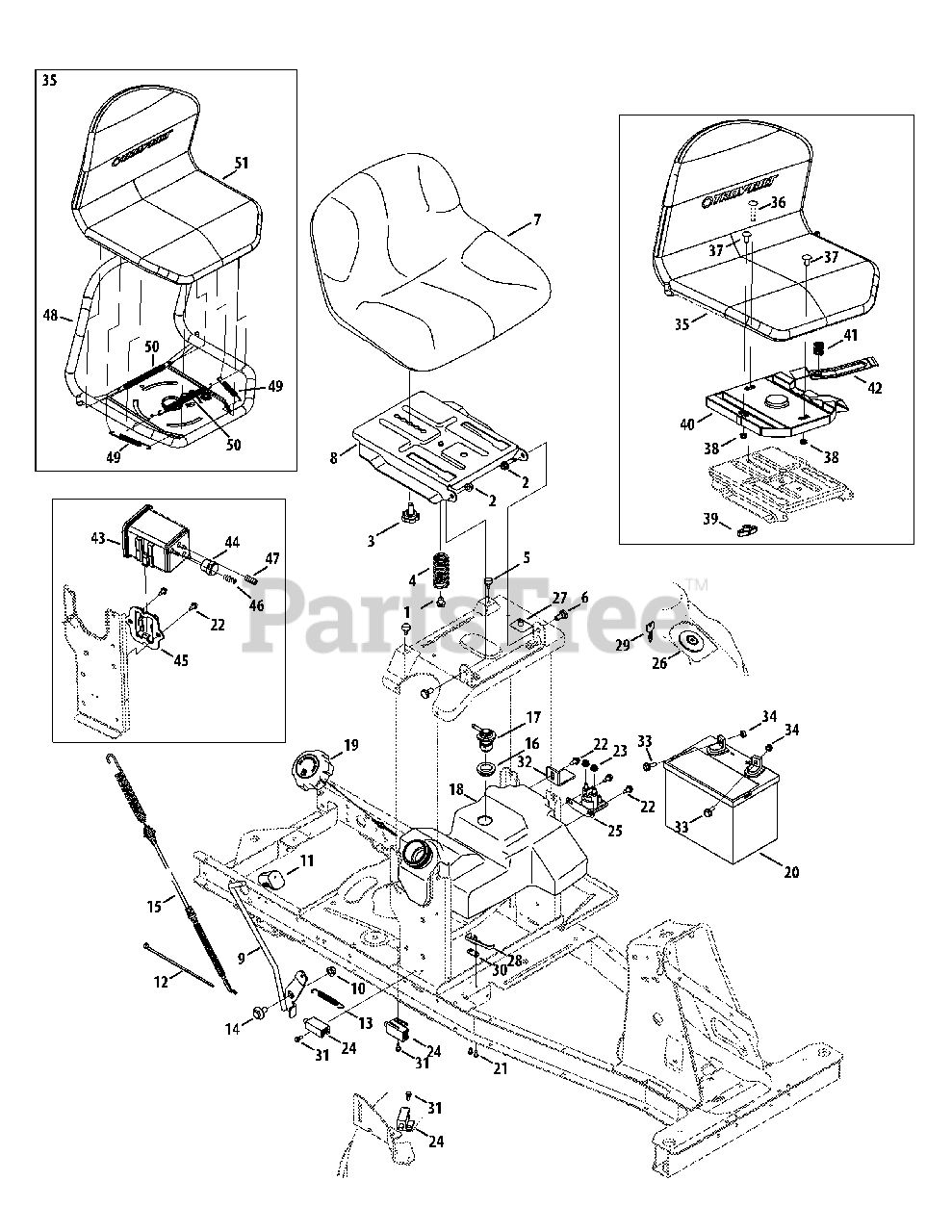

Seat, Fuel Tank & Electrical Parts Diagram

  • Title

1

MTD 710-0607

Tap Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

2

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-04009A

Knob, 3/8-16, .875

$16.99

$

In Stock, only 2 left!

0

4

MTD 732-04905

Seat Spring

$3.99

$

In Stock, only 2 left!

0

5

MTD 735-0271A

Bumper, .62 DIA X .3

$8.99

$

In Stock, only 4 left!

0

6

MTD 938-0140

Shldr Spacer, .435 X .178-5/16 X .56
(Superseded to 738-0140)

$

$

Not available

7

MTD 757-04083A

Seat
(Superseded to 757-05229)

$231.99

$

Usually ships in 3-6 days

0

8

MTD 783-07213-0637

Seat Pivot Bracket
(Superseded to 783-07213A-0637)

$33.99

$

In Stock, only 2 left!

0

9

MTD 683-04754-0637

PTO Handle Assembly

$13.99

$

Usually ships in 3-6 days

0

10

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

MTD 720-04049A

Handle Grip, 3/8

$16.99

$

Usually ships in 3-6 days

0

12

MTD 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, only 2 left!

0

13

MTD 732-04956

Extension Spring, .50 OD X 4.646 LG

$

$

Not available

14

MTD 738-04554

Shoulder Bolt, .500 X .270:3/8-16

$3.99

$

Usually ships in 3-6 days

0

15

MTD 946-04802

PTO Cable
(Superseded to 946-04802A)

$38.99

$

In Stock, only 1 left!

0

16

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

17

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 1 left!

0

18

MTD 951-04366

Fuel Tank, 1-3 Gal.
(Superseded to 951-04366C)

$89.99

$

Usually ships in 3-6 days

0

19

MTD 951-12179A

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

20

MTD 925-1707D

Battery, 155 CCA

$

$

Not available

21

MTD 710-0227

Screw, #8

$4.49

$

In Stock, Qty 15

0

22

MTD 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

25

MTD 725-04439

Solienoid, 12v
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

26

MTD 925-04659

Three-Way Key Switch

$44.99

$

In Stock, Qty 20+

0

27

MTD 925-05013

Seat Switch

$31.99

$

In Stock, only 2 left!

0

28

MTD 725-1643

Switch Spring

$10.99

$

In Stock, only 1 left!

0

29

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

30

MTD 926-0320

Insulator Plate

$6.99

$

In Stock, Qty 9

0

31

MTD 738-04237A

Shoulder Screw, #10-32, .500

$6.49

$

In Stock, Qty 7

0

32

MTD 783-07384-0637

Battery Hold-Down Bracket

$

$

Not available

33

MTD 738-1132

Screw, Shoulder, .250 x .150

$5.49

$

In Stock, only 2 left!

0

34

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

35

Seat

Note: (not used in this application)

$

$

Not available

36

Carriage Bolt, 3/8-16 x 1.75

Note: (not used in this application)

$

$

Not available

37

Carriage Bolt, 3/8-16 x .75

Note: (not used in this application)

$

$

Not available

38

Nut, Jam, 3/8-16

Note: (not used in this application)

$

$

Not available

39

Wing Knob, 3/8-16

Note: (not used in this application)

$

$

Not available

40

Seat Pan Support

Note: (not used in this application)

$

$

Not available

41

Compression Spring, .845 OD x 1.00

Note: (not used in this application)

$

$

Not available

42

Seat Bracket

Note: (not used in this application)

$

$

Not available

43

MTD 951-10589

5 GallonCarbon Canister

Note: (If equipped)

$72.99

$

Usually ships in 3-6 days

0

44

MTD 951-10590

Vent Filter Canister

$15.99

$

Usually ships in 3-6 days

0

45

MTD 951-10610

Canister Adapter Bracket

$23.99

$

Usually ships in 3-6 days

0

46

MTD 751-10749-30

Fuel Hose, White

$36.99

$

Usually ships in 3-6 days

0

47

MTD 751-10750-48

Fuel Hose, Yellow

$57.99

$

Usually ships in 3-6 days

0

48

Seat Frame Assembly

Note: (not used in this application)

$

$

Not available

49

Extension Spring, .48 OD x 5.00 LG

Note: (not used in this application)

$

$

Not available

50

Extension Spring, 7.91 LG

Note: (not used in this application)

$

$

Not available

51

Seat Cover

Note: (not used in this application)

$

$

Not available

MTD 925-05359

Wiring Harness
(Superseded to 725-06041)

Note: (not shown)

$127.99

$

Usually ships in 3-6 days

0

MTD 725-04009

Fuse, 15 amp ATC

Note: (not shown)

$3.49

$

Usually ships in 3-6 days

0
