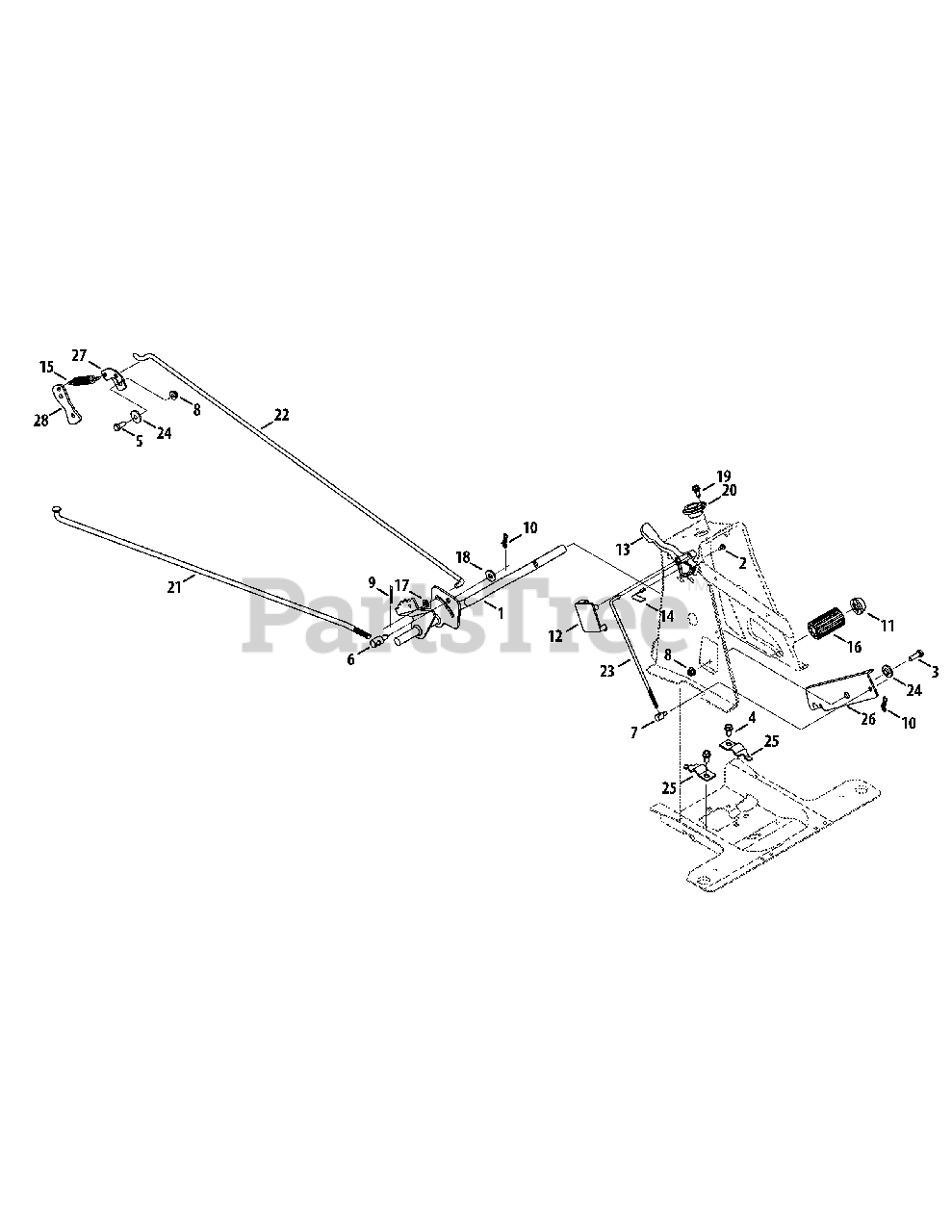

13A226JD000 - Yard Machines Lawn Tractor (2012) Pedal Controls Parts Diagram

Lawn Tractor

Pedal Controls Parts Diagram

  • Title
1

MTD 683-04699-0637

Brake Pedal Assembly

$

$

Not available

2

MTD 910-0224

Screw, #10-16:0.500

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0376

Hex Head Scerw, 5/16-18:1.00

$3.99

$

In Stock, Qty 5

0

4

MTD 710-04484

Tap Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-3008

Hex Head Screw, 5/16-18:.75

$4.49

$

In Stock, Qty 20+

0

6

MTD 911-04075A

Ferrule 3/8-24 X .375 Dia.

$11.99

$

In Stock, only 3 left!

0

7

MTD 711-0736

Adjustable Ferrule, 1/4-20 X 1.00

$13.99

$

In Stock, only 2 left!

0

8

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 914-0111

Cotter Pin, 3/32X1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

10

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

11

MTD 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 3 left!

0

12

MTD 731-08656

Speed Control Cover
(Superseded to 731-08656B)

$4.49

$

In Stock, Qty 12

0

13

MTD 731-08743

Speed Lever, 6-SPEED
(Superseded to 731-08743B)

$7.49

$

In Stock, only 1 left!

0

14

MTD 732-04937

Shift Spring

$3.99

$

In Stock, only 1 left!

0

15

MTD 732-0716D

Extension Spring, .59 OD X 4.00 LG

$13.99

$

In Stock, only 1 left!

0

16

MTD 735-04279

Foot Pad, 2.5" LG.

$8.99

$

Usually ships in 3-6 days

0

17

MTD 936-0264

Flat Washer, .330x.630x.064

$6.99

$

In Stock, only 3 left!

0

18

MTD 736-3072

Flat Washer, .380X.930X.110

$4.49

$

In Stock, Qty 20+

0

19

MTD 738-04184A

Shoulder Screw, .368 X.113, 1/4-20

$6.99

$

In Stock, Qty 15

0

20

MTD 741-0356A

Steering Col. Bearing, .880 ID X 1.36

$7.49

$

In Stock, only 3 left!

0

21

MTD 747-05506

Variable Speed Control Rod

$22.99

$

Usually ships in 3-6 days

0

22

MTD 747-05508

Brake Rod

$

$

Not available

23

MTD 747-05616

Speed Selector Control Rod

$

$

Not available

24

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

25

MTD 783-05940

Pedal Strap Support Bracket, 5/8

$7.49

$

Usually ships in 3-6 days

0

26

MTD 783-07050-0637

Speed Latch Bracket
(Superseded to 753-08452A)

$22.99

$

Usually ships in 3-6 days

0

27

MTD 783-07287A

Brake Cam Bracket

$2.99

$

Usually ships in 3-6 days

0

28

MTD 717-0772B

Brake lever Bracket

$12.99

$

Usually ships in 3-6 days

0
