13A226JD000 - Yard Machines Lawn Tractor (2012) Mower Deck 30-Inch Parts Diagram

Lawn Tractor

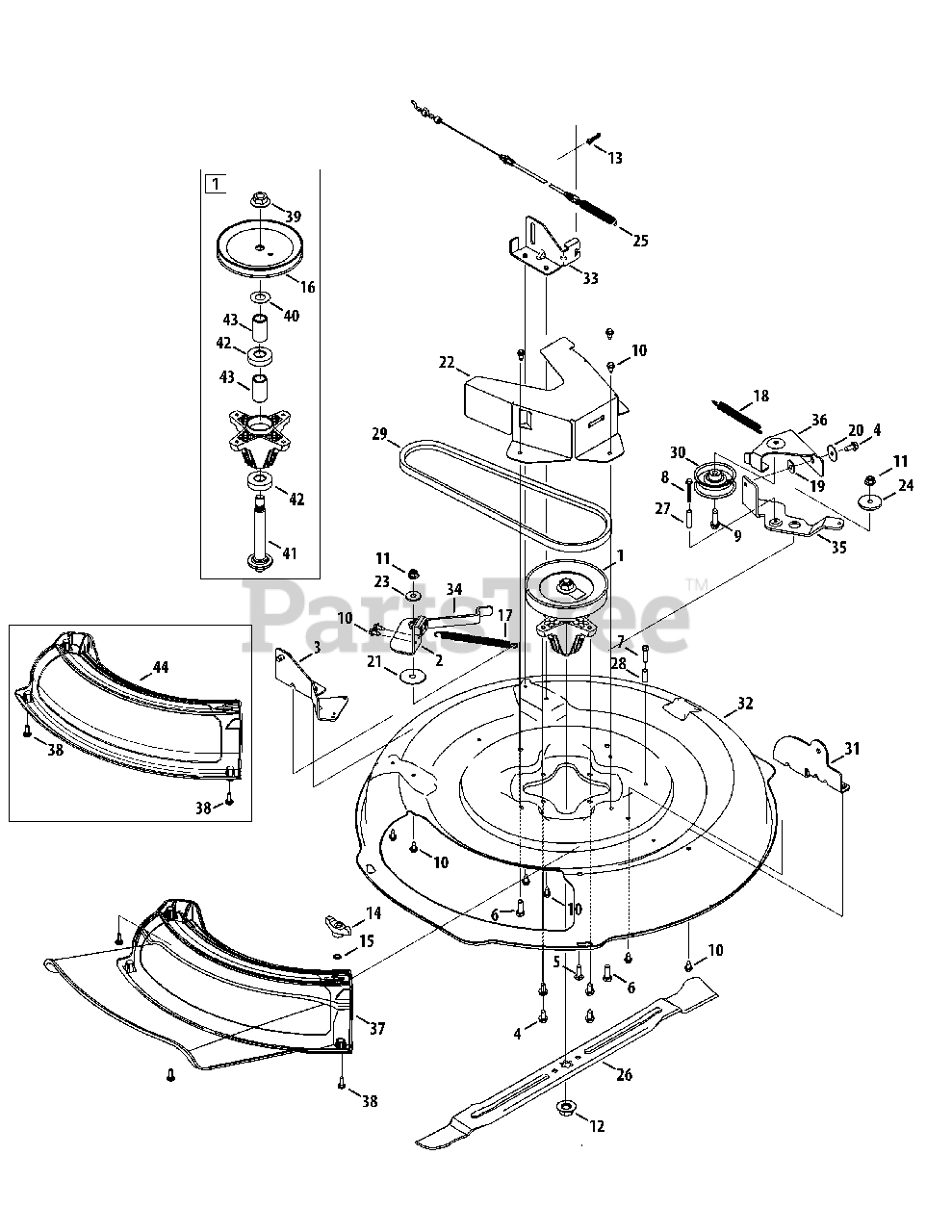

Mower Deck 30-Inch Parts Diagram

  • Title

1

MTD 918-04822A

Spindle Pulley Assembly, 6.3 DIA
(Superseded to 918-04822B)

$121.99

$

In Stock, only 3 left!

0

2

MTD 683-04734

PTO Brake Assembly Bracket
(Superseded to 983-04734)

$

$

Not available

3

MTD 683-04782-0637

Rear Deck Assembly Bracket
(Superseded to 683-04782A-0637)

$

$

Not available

4

MTD 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-04998

Carriage Screw, 5/16-18, 1.00

$5.99

$

Usually ships in 3-6 days

0

6

MTD 710-0514

Hex Head Screw, 3/8-16, 1.00

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0778

Tap Screw, 1/4-20, 1.500

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1026

Tap Screw, 1/4-20, 1.750

$6.99

$

In Stock, Qty 11

0

9

MTD 710-1315

Tap Screw, 3/8-16, 1.250

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1652

Tap Screw, 1/4-20 X .625

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

13

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

14

MTD 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

15

MTD 726-0201

Speed Nut, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

16

MTD 956-1227

Deck Pulley, 6.3 DIA

$26.99

$

In Stock, only 4 left!

0

17

MTD 732-04948A

Ext. Spring, .708 X 7.357 X .094

$

$

Not available

18

MTD 732-04967

Ext. Spring, .565 OD X 5.00 LG

$4.49

$

In Stock, only 3 left!

0

19

MTD 936-0289

Shoulder Bushing, .320 ID X .135

$6.99

$

In Stock, only 1 left!

0

20

MTD 736-0362

Flat Washer, .330x1.250x.060

$4.49

$

In Stock, only 4 left!

0

21

MTD 736-0518

Thrust Washer, .445X.1.920X.060

$10.99

$

Usually ships in 3-6 days

0

22

MTD 783-07342-0637

Deck Belt Cover

$101.99

$

Usually ships in 3-6 days

0

23

MTD 938-0347

Shoulder Spacer, .625 ID X .169

$10.99

$

Usually ships in 3-6 days

0

24

MTD 738-04162A

Shoulder Spacer, .8840 X .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

25

MTD 946-04802

PTO Cable
(Superseded to 946-04802A)

$38.99

$

Usually ships in 3-6 days

0

26

MTD 942-04385

Cutting Blade, 30.00" 3-IN-1

$37.99

$

In Stock, Qty 7

0

27

MTD 750-04456

Spacer, .260 X .372 X 1.420 LG

$7.49

$

In Stock, only 2 left!

0

28

MTD 750-0566A

Spacer, .260 x .375 x 1.030 LG

$9.99

$

In Stock, only 1 left!

0

29

MTD 954-04318

V-Type Belt, 5L, 45.15 LG

$33.99

$

In Stock, Qty 20+

0

30

MTD 756-04224

Flat Idler Pulley, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

31

MTD 783-07004

Front Deck Bracket

$12.99

$

Usually ships in 3-6 days

0

32

MTD 783-07265-0637

Deck, 30" w/out Nozzle
(Superseded to 753-08161)

$532.99

$

Usually ships in 3-6 days

0

33

MTD 783-07184-0637

RR Deck Bracket, LH

$35.99

$

Usually ships in 3-6 days

0

34

MTD 783-07204-0637

Release Brake Bracket

$16.99

$

In Stock, only 1 left!

0

35

MTD 783-07304

Lower Floating Idler Bracket

$

$

Not available

36

MTD 783-07306

Upper Floating Idler Bracket

$46.99

$

In Stock, only 1 left!

0

37

MTD 931-04633

Chute Deflector
(Superseded to 731-10267)

$32.99

$

In Stock, only 1 left!

0

38

MTD 738-04519

Shoulder Screw, 1/4-15 x .750

$3.99

$

In Stock, only 3 left!

0

39

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

40

MTD 936-0351

Shim Washer, .760X1.500X.030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

41

MTD 738-1186A

Spindle Shaft, 6.11 LG.

$49.99

$

In Stock, Qty 14

0

42

MTD 941-0919A

Ball Bearing, .787ID X 1.85 ODX.551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

43

MTD 750-04936

Spacer, .792 X 1.060 X 1.860 LG

$6.99

$

In Stock, Qty 20+

0

44

MTD 931-04632

Mulch Plug
(Superseded to 931-05069)

Note: If equipped

$

$

Not available
