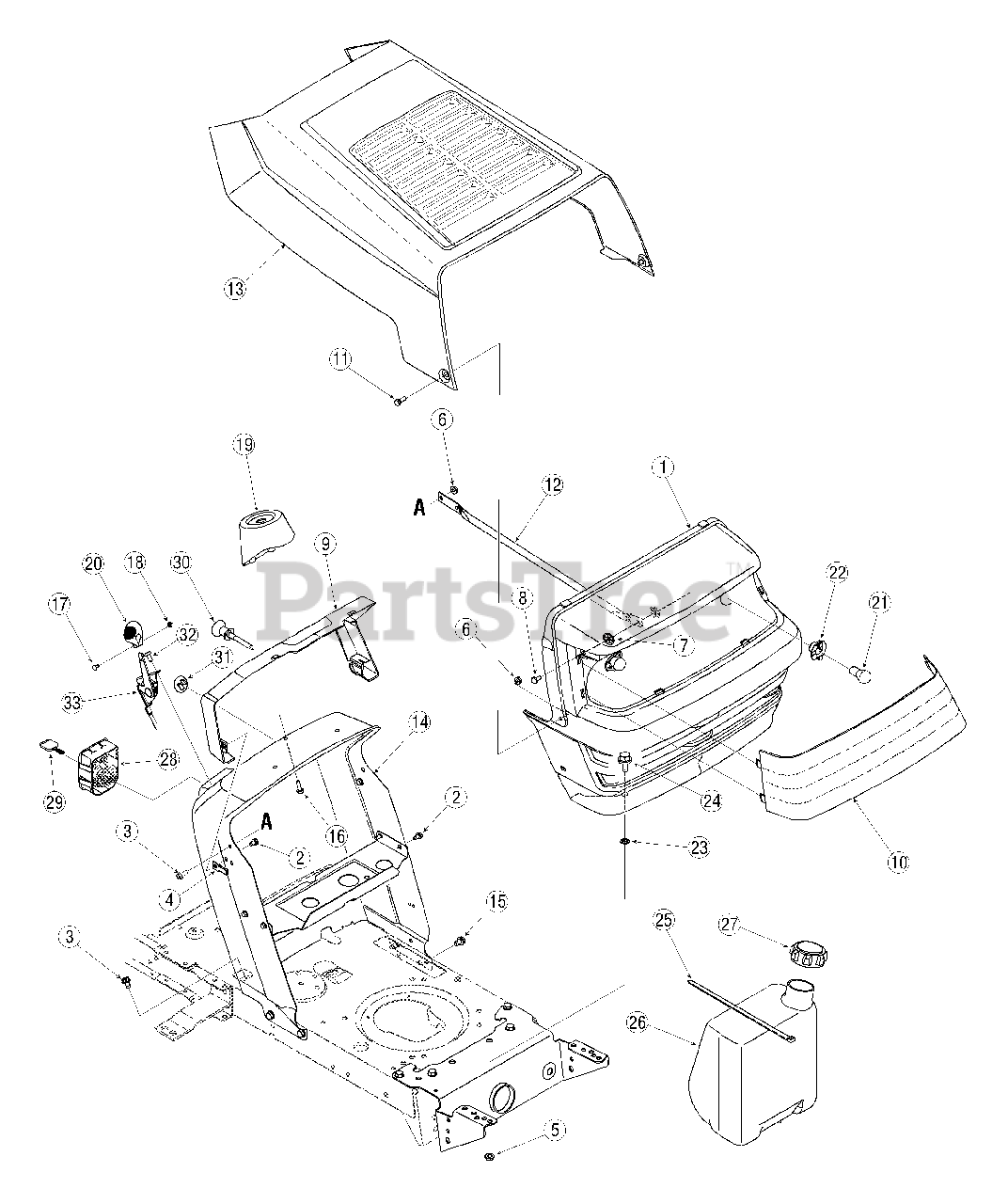

13A1760F700 - Yard Machines Lawn Tractor (2005) Hood Style 0 Parts Diagram

Lawn Tractor

Hood Style 0 Parts Diagram

  • Title

1

MTD 731-1097F

Grille
(Superseded to 931-1097G)

$192.99

$

Usually ships in 3-6 days

0

2

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-0185

Nut, 1/4-20, Speed U-type

$

$

Not available

5

MTD 712-04063

Nut, Flange Lock, 5/16-18, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04064

Nut, Flange Lock, 1/4-20, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

7

MTD 726-04012

Nut, Push-on, .25 Dia

$7.49

$

In Stock, Qty 9

0

8

MTD 728-0162

Rivet, Flat Head 1/4"

$4.99

$

Usually ships in 3-6 days

0

9

MTD 731-05012

Collar, Dash, 0-Style
(Superseded to 731-05012B)

$17.99

$

Usually ships in 3-6 days

0

10

MTD 731-1099A

Lens
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

11

MTD 738-0952A

Screw, Shoulder, .375 x .125, 1/4-20
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

12

MTD 749-0722C

Support Rod, Grill
(Superseded to 749-0722C-0637)

Variations

MTD 749-0722C-0637

Support Grille Rod - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

$21.99

$

In Stock, only 1 left!

0

13

MTD 783-04608

Hood

Variations

MTD 783-04608-0638

HOOD- 0 STYLE - MTD/TROY-BILT RED (0638)

$274.99

$

Usually ships in 3-6 days

0

MTD 783-04608-0662

HOOD- 0 STYLE - OYSTER GRAY (0662)

$255.99

$

Usually ships in 3-6 days

0

MTD 783-04608-0674

HOOD- 0 STYLE - YARDMAN YELLOW (0674)

$255.99

$

Usually ships in 3-6 days

0

MTD 783-04608-0691

HOOD- 0 STYLE - BLACK JACK (0691)

$255.99

$

Usually ships in 3-6 days

0

MTD 783-04608-0709

HOOD- 0 STYLE - MASTERCRAFT GREEN (0709)

$255.99

$

Usually ships in 3-6 days

0

MTD 783-04608-4062

HOOD- 0 STYLE - COOL GRAY (4062)

$221.99

$

Usually ships in 3-6 days

0

$221.99

$

Usually ships in 3-6 days

0

14

MTD 683-04189

Dash Assembly
(Superseded to 753-05614)

Variations

MTD 683-04189-0637

Replacement Dash Kit - POWDER BLACK (0637)

$

$

Not available

MTD 683-04189-0650

Replacement Dash Kit - RED METALLIC (0650)

$

$

Not available

MTD 683-04189-0665

Replacement Dash Kit - YARDMAN GREEN (0665)

$

$

Not available

$

$

MTD 783-04584

Bracket Support, Gas Tank
(Superseded to 783-04584B-0637)

Variations

MTD 783-04584-0637

Support Bracket, Black - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

15

MTD 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

16

MTD 710-0895

Screw, 1/4-15, 0.750

$6.49

$

In Stock, Qty 5

0

17

MTD 710-3217

Screw, Machine, #8-32, 0.375

$6.99

$

In Stock, Qty 7

0

18

MTD 712-0142

Nut, Hex, #8-32, Gr A

$4.49

$

In Stock, Qty 9

0

19

MTD 731-04945

Support, Steering

$18.99

$

In Stock, only 1 left!

0

20

MTD 731-1857

Knob, Control

$14.99

$

In Stock, only 4 left!

0

21

MTD 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

22

MTD 725-1649

Headlamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

23

MTD 726-0201

Speed Nut, .3125

$6.99

$

Usually ships in 3-6 days

0

24

MTD 738-04015

Shoulder Screw, 5/16-18 x .625
(Superseded to 938-04015)

$6.49

$

Usually ships in 3-6 days

0

25

MTD 726-0230

Cable Tie, 34.75

$27.99

$

In Stock, only 1 left!

0

26

MTD 751-0555B

Fuel Tank, 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

27

MTD 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

28

MTD 725-04227

Module, Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

29

MTD 725-1744

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

30

MTD 746-1085A

Choke Control, 37.5"
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

31

MTD 731-1999

Plug

$10.99

$

Usually ships in 3-6 days

0

32

MTD 710-1017

Screw, 1/4-14, .625

$8.49

$

In Stock, Qty 9

0

33

MTD 746-1084

Throttle/Choke Control, 25" (Single Cylinder Engine)
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

MTD 746-1086

Throttle Control, 39" (Twin Cylinder Engine)
(Superseded to 946-1086)

$33.99

$

In Stock, only 1 left!

0
