13A132-0021-F1 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

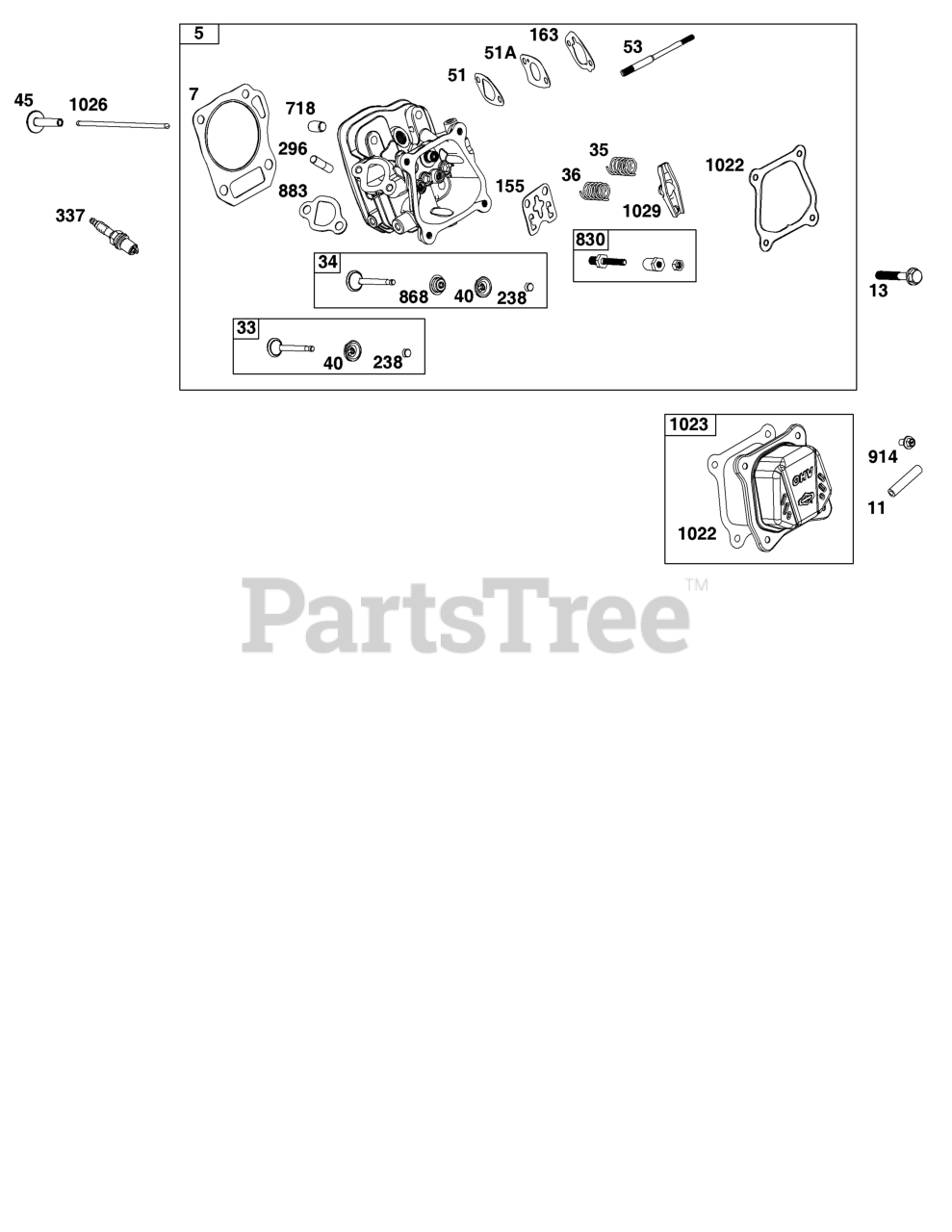

Cylinder Head Group Parts Diagram

  • Title
5

Briggs & Stratton 591454

HEAD, Cylinder
(Superseded to 84002435)

$166.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 591445

GASKET, Cylinder Head

$13.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 695745

TUBE, Breather

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 590639

SCREW

Note: (Cylinder Head)

$3.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 591448

VALVE, Exhaust

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 591447

VALVE, Intake

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 590650

SPRING, Valve

Note: (Intake)

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 590650

SPRING, Valve

Note: (Exhaust)

$5.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 590654

RETAINER, Valve

$6.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 591449

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 590612

GASKET, Intake

$4.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 590613

GASKET, Intake

$4.49

$

In Stock, only 3 left!

0

53

STUD

Note: (Part information located in Carburetor Group.)

$

$

Not available

155

Briggs & Stratton 592874

PLATE, Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

238

$9.49

$

In Stock, only 1 left!

0

296

STUD

Note: (Part information located in Exhaust Group.)

$

$

Not available

337

$6.49

$

In Stock, Qty 20+

0

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

830

Briggs & Stratton 590653

STUD, Rocker Arm

$6.99

$

Usually ships in 2-12 days

0

868

$12.99

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

914

Briggs & Stratton 590850

SCREW

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 7

0

1022

Briggs & Stratton 797194

GASKET, Rocker Cover

$9.49

$

In Stock, only 3 left!

0

1023

Briggs & Stratton 592903

COVER, Rocker

$25.99

$

Usually ships in 2-12 days

0

1026

$11.99

$

In Stock, only 1 left!

0

1029

$10.99

$

Usually ships in 2-12 days

0
