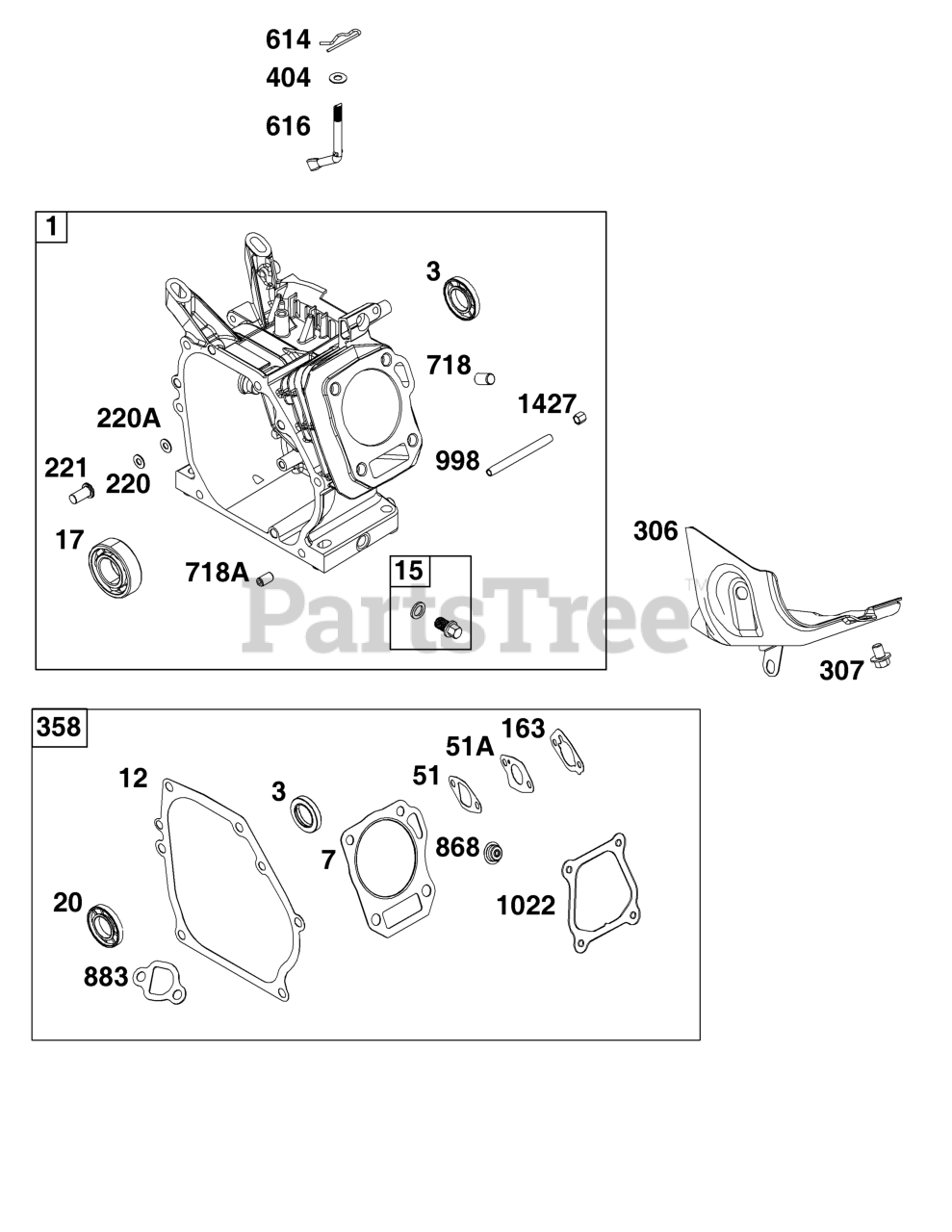

13A132-0021-F1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 591446

CYLINDER ASSEMBLY

$217.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 590712

SEAL, Oil

Note: (Magneto Side)

$12.99

$

In Stock, only 2 left!

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

15

Briggs & Stratton 590678

PLUG, Oil Drain

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 590715

BEARING, Ball

Note: (Cylinder)

$13.99

$

In Stock, only 1 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

220

Briggs & Stratton 590677

WASHER

Note: (Governor Gear)

$3.49

$

Usually ships in 2-12 days

0

220A

Briggs & Stratton 590675

WASHER

$3.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 590676

CUP, Governor

$8.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 590636

SHIELD, Cylinder

$21.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 590683

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 594951

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$63.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 590669

WASHER

Note: (Governor Crank)

$3.49

$

In Stock, only 3 left!

0

614

Briggs & Stratton 590670

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 590668

CRANK, Governor

$13.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 590637

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 590713

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

998

Briggs & Stratton 591446

CYLINDER ASSEMBLY

$217.99

$

Usually ships in 2-12 days

0

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1427

Briggs & Stratton 695757

PLUG, Oil Drain

$6.99

$

Usually ships in 2-12 days

0
