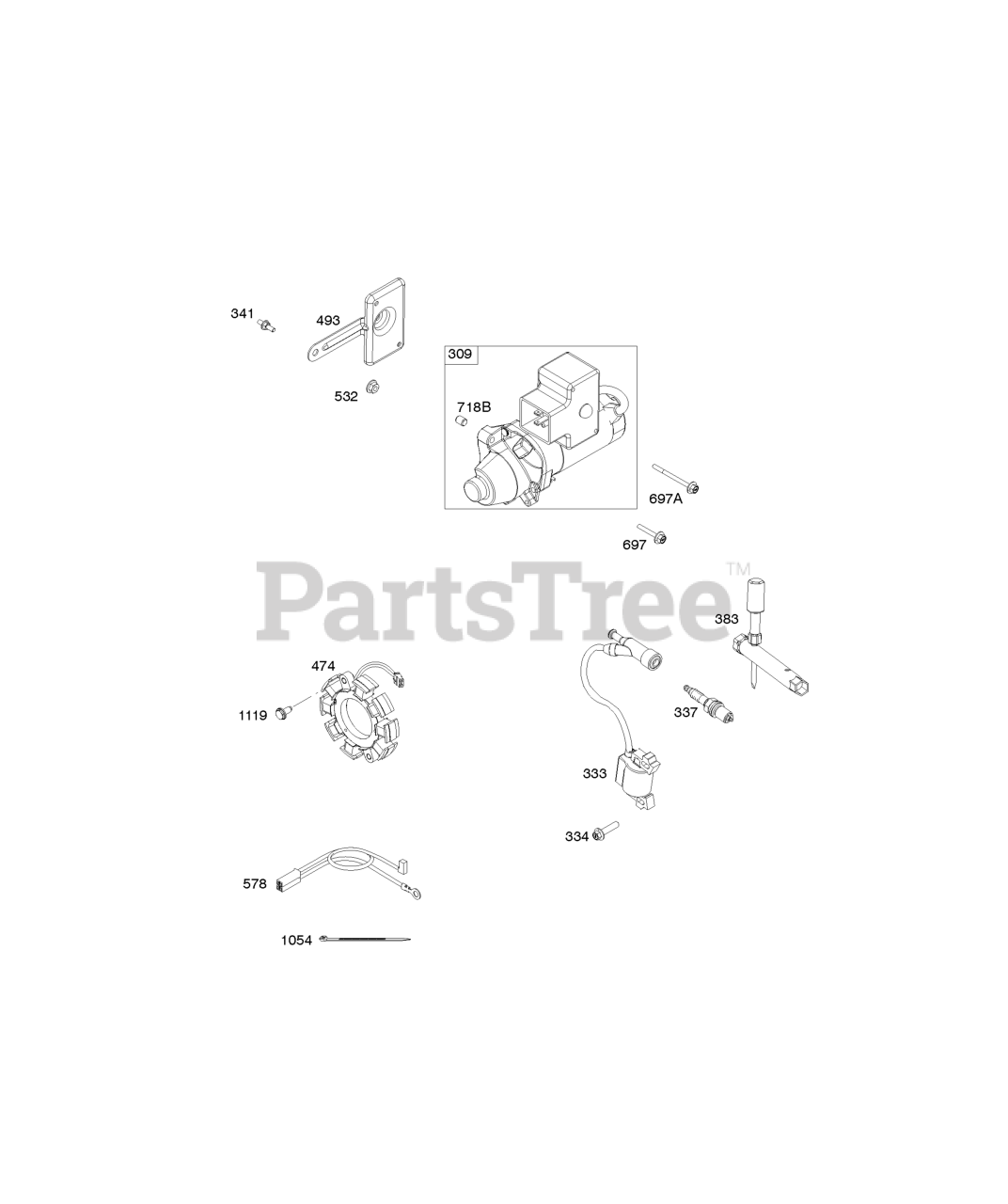

13A132-0003-F1 - Briggs & Stratton Horizontal Engine Alternator, Electric Starter, Ignition Parts Diagram

Horizontal Engine

Alternator, Electric Starter, Ignition Parts Diagram

  • Title

333

Briggs & Stratton 590603

ARMATURE, Magneto

$57.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 590644

SCREW

Note: (Magneto Armature)

$3.99

$

In Stock, only 2 left!

0

337

Briggs & Stratton 691043

PLUG, Spark

Note: (EMS)

$6.49

$

In Stock, Qty 20+

0

341

Briggs & Stratton 591509

Stud

Note: (Mounting Bracket) (Fuel Tank)

$4.49

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 590721

WRENCH, Spark Plug

$6.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 595569

Alternator

$70.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 591521

Bracket-Mounting

Note: (Starter Motor)

$8.49

$

Usually ships in 2-12 days

0

532

Briggs & Stratton 590641

NUT

Note: (Mounting Bracket) (Starter Motor)

$3.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 591523

Wire Assembly

$21.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 591476

SCREW

Note: (Starter Motor) (Drive Cap)

$3.99

$

Usually ships in 2-12 days

0

697A

Briggs & Stratton 591522

Screw

Note: (Starter Motor) (Drive Cap)

$3.99

$

Usually ships in 2-12 days

0

718B

Briggs & Stratton 591466

PIN, Locating

Note: (Starter Motor)

$5.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 590644

SCREW

Note: (Alternator)

$3.99

$

In Stock, only 2 left!

0
