13A0663F352 - Yard Machines Lawn Tractor (2000) (Walmart) Engine Accessories, Muffler Parts Diagram

Lawn Tractor

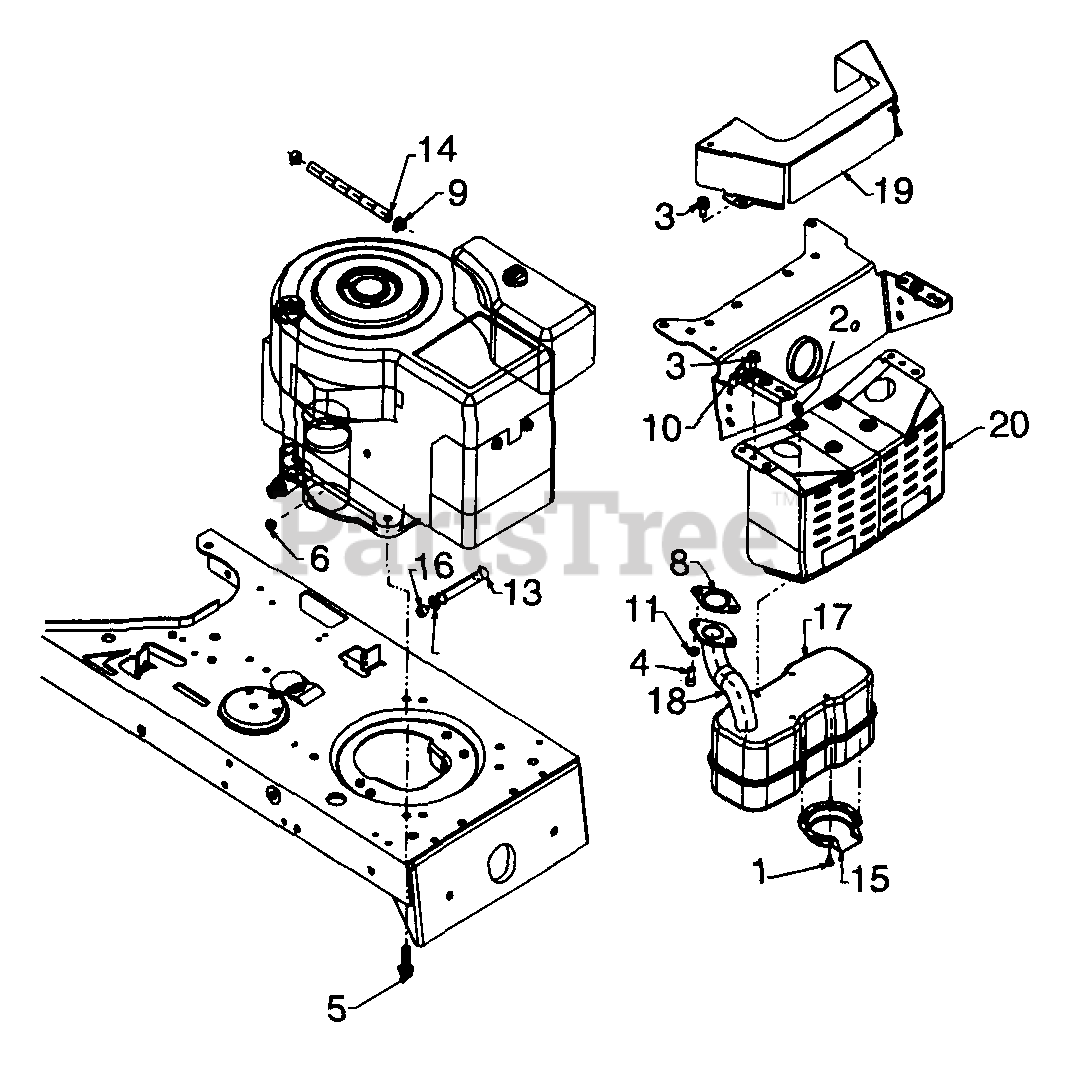

Engine Accessories, Muffler Parts Diagram

  • Title
1

MTD 710-0148

Hex Bolt #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

2

MTD 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604

Hex Wash. Hd. TT-Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1314

Socket Hd. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1315

Hex Wash. Hd. TT-Scr. 3/8-16 x 1.25"

$4.49

$

In Stock, only 3 left!

0

6

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

8

MTD 721-0348

Exhaust Gasket
(Superseded to TC-36365)

$3.49

$

In Stock, only 2 left!

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

10

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 737-0286

Pipe 3/8 NPT x 3.8" Lg. (16/17 HP)

$

$

Not available

MTD 737-0199

Pipe 3/8 NPT x 2" Lg. (12/13 HP)
(Superseded to 937-0199)

$

$

Not available

14

MTD 751-0535-12

Fuel Line
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

15

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

16

MTD 751-0572

Hex Pipe Plug (16/17 HP)

$

$

Not available

MTD 737-0143

Oil Drain Cap (12/13 HP)

$

$

Not available

17

MTD 751-0617

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

18

MTD 751-0620

Exhaust Pipe (16/17 HP)
(Superseded to 751-0620A)

$81.99

$

In Stock, only 2 left!

0

MTD 751-0622

Exhaust Pipe (12/13 HP)
(Superseded to 751-0622A)

$82.99

$

Usually ships in 3-6 days

0

19

MTD 783-0378A

Heat Shield (16/17 HP)

Variations

MTD 783-0378A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 783-0615

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0
