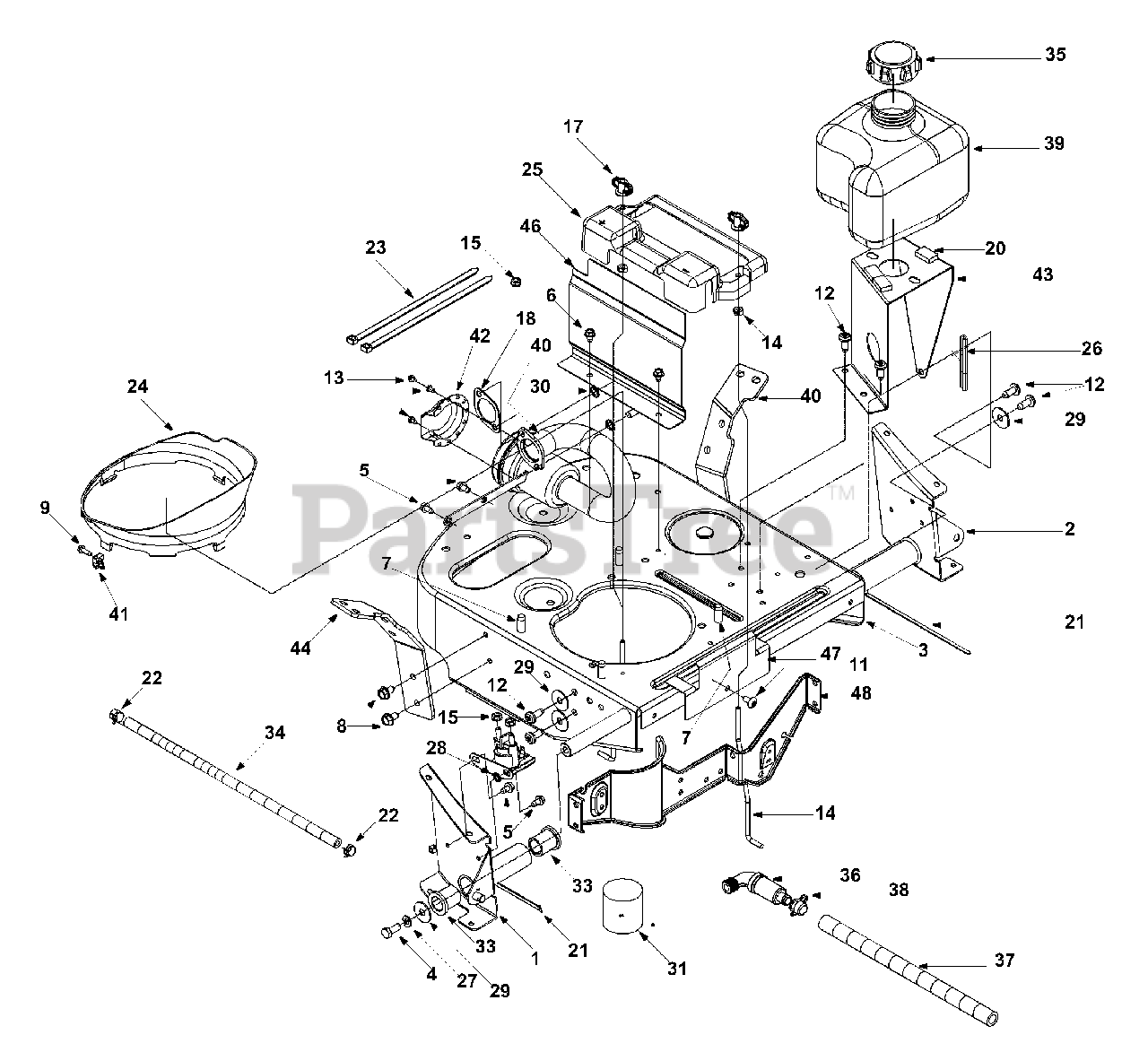

13A-344-700 - Yard Machines Lawn Tractor (2004) Engine Accessories Parts Diagram

Lawn Tractor

Engine Accessories Parts Diagram

  • Title

1

MTD 683-0190B

Rail Support: Frame Assembly RH

Variations

MTD 683-0190B-0637

Rail Support: Frame Assembly RH - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 683-0191B

Rail Support: Frame Assembly LH

Variations

MTD 683-0191B-0637

Rail Support: Frame Assembly LH - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 683-04018

Frame Assembly

Variations

MTD 683-04018-0637

No Longer Available FRAME ASM 300 SER - POWDER BLACK (0637)

$

$

Not available

MTD 683-04018-0650

No Longer Available FRAME ASM - RED METALLIC (0650)

$

$

Not available

MTD 683-04018-0665

No Longer Available FRAMEASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 710-0157

Hex Bolt 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 15

0

5

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0653

TT Screw 1/4-20 x 0.375"

$4.49

$

In Stock, Qty 7

0

7

MTD 710-0654A

TT Sems Screw 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0726

AB Screw 5/16-12 x 0.75"

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-1237

T Screw #10-32 x 0.625"

$4.49

$

Usually ships in 3-6 days

0

10

MTD 710-1314A

Soc. Hd. Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-1348

AB Screw 1/4-14 x 0.5"

$6.99

$

In Stock, only 3 left!

0

12

MTD 710-1611B

TT Screw 5/16-18 x 0.75"

$6.99

$

In Stock, only 2 left!

0

13

MTD 710-1502

AB Screw 8-18 x 0.375"

$

$

Not available

14

MTD 711-04143

Battery Hold -Down Rod

$

$

Not available

15

MTD 712-0271

Sems Nut

$4.49

$

In Stock, Qty 19

0

16

MTD 712-0291

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

17

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

18

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

19

MTD 721-0331

Pipe Sealant

$

$

Currently unavailable

20

MTD 722-3022

Foam Tape: 0.625 x 0.25 thk.
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

21

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

22

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

23

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

24

MTD 731-04282

Plen
(Superseded to 931-04282)

$

$

Not available

25

MTD 731-0707A

Battery Cover

$

$

Not available

26

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

27

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-0222

External Lock Washer

$5.99

$

In Stock, only 3 left!

0

29

MTD 736-0123

Flat Washer
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

30

MTD 736-0607

Lock Washer 1/4

$3.99

$

In Stock, Qty 20+

0

31

MTD 737-0169

SAE 30W Oil

Note: (Not serviceable)

$

$

Currently unavailable

32

MTD 737-0125

Elbow Fitting

$

$

Not available

33

MTD 741-0516

Flange Bearing
(Superseded to 741-0516B)

$6.49

$

In Stock, Qty 20+

0

34

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

35

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

36

MTD 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

37

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

38

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

39

MTD 751-3214

Fuel Tank
(Superseded to 951-3214)

$

$

Not available

40

MTD 751-9986

Muffler
(Superseded to 951-9986A)

$97.99

$

Usually ships in 3-6 days

0

41

MTD 751B213146

Clamp Casing: Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

42

MTD 751B222261

Muffler Deflector

$10.99

$

In Stock, only 1 left!

0

43

MTD 783-04100

Tank Bracket
(Superseded to 783-04100-0637)

Variations

MTD 783-04100-0637

BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 783-04144

Support Bracket RH
(Superseded to 783-04144-0637)

Variations

MTD 783-04144-0637

BRACKET-SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 783-04260

Support Bracket LH
(Superseded to 783-04260-0637)

Variations

MTD 783-04260-0637

BRACKET-SUPPORT LH - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 725-1704

Battery
(Superseded to 925-1707D)

Note: (Not shown)

$

$

Not available

47

MTD 783-04358

Heat Shield
(Superseded to 783-04358A)

$

$

Not available

48

MTD 783-04392

Bracket: Hose Clamp

$

$

Not available

49

MTD 783-0809B

Support Bracket: Transaxle

Variations

MTD 783-0809B-0637

Transaxle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
