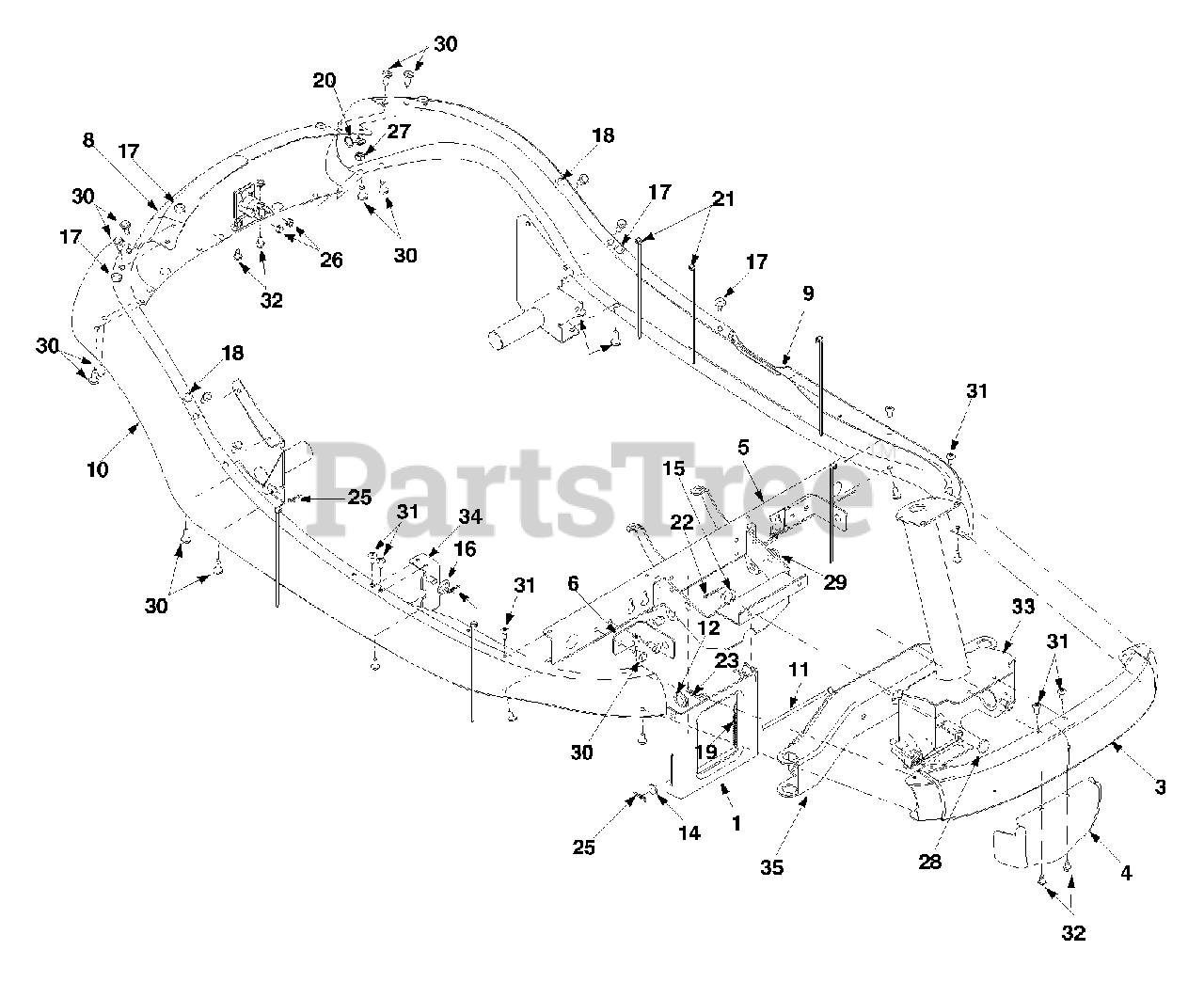

13A-328-402 - Yard-Man Lawn Tractor (2002) Frame Assembly Parts Diagram

Lawn Tractor

Frame Assembly Parts Diagram

  • Title

1

MTD 783-0605

Deck Stabilizing Bracket
(Superseded to 783-0605-0637)

Variations

MTD 783-0605-0637

BRACKET-STABILIZER - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 783-0564A

Front Frame: Upper

Variations

MTD 783-0564A-0498

No Longer Available FRAME-UPPE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0564A-0637

No Longer Available FRAME-UPPE - POWDER BLACK (0637)

$

$

Not available

MTD 783-0564A-0648

No Longer Available FRAME-UPPE - TECH GRAY (0648)

$

$

Not available

MTD 783-0564A-0650

No Longer Available FRAME-UPPE - RED METALLIC (0650)

$

$

Not available

MTD 783-0564A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0564A-0716

No Longer Available FRAME-UPPE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

MTD 783-0811

Steering Gear Cover
(Superseded to 783-0811A)

Variations

MTD 783-0811-0637

COVER STEERING - POWDER BLACK (0637)

$

$

Not available

MTD 783-0811-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0811-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0811-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

MTD 683-0264A

Front Channel Assembly
(Superseded to 683-0264A-0637)

Variations

MTD 683-0264A-0637

CHANNEL ASM-FRONT - POWDER BLACK (0637)

$147.99

$

Usually ships in 3-6 days

0

$147.99

$

Usually ships in 3-6 days

0

6

MTD 783-0554

Cam Bracket

Variations

MTD 783-0554-0637

No Longer Available BRACKET-CAM - POWDER BLACK (0637)

$

$

Not available

MTD 783-0554-0665

No Longer Available BRACKET-CA - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

MTD 783-0414A

Frame Rail: Rear

Variations

MTD 783-0414A-0498

FRAME-UPPER REAR - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0414A-0637

FRAME-UPPER REAR - POWDER BLACK (0637)

$

$

Not available

MTD 783-0414A-0648

No Longer Available FRAME-UPPE - TECH GRAY (0648)

$

$

Not available

MTD 783-0414A-0650

FRAME-UPPER REAR - RED METALLIC (0650)

$

$

Not available

MTD 783-0414A-0674

FRAME-UPPER REAR - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0414A-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0414A-0721

FRAME-UPPER REAR - SEARS RED (0721)

$

$

Not available

MTD 783-0414A-4044

FRAME-UPPER REAR - CRAFTSMAN RED (4044)

$

$

Not available

$

$

9

MTD 783-0413

Frame Rail-L.H.

Variations

MTD 783-0413-0498

No Longer Available RAIL-FRAME - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0413-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

MTD 783-0413-0648

No Longer Available RAIL-FRAME - TECH GRAY (0648)

$

$

Not available

MTD 783-0413-0650

No Longer Available RAIL-FRAME - RED METALLIC (0650)

$

$

Not available

MTD 783-0413-0674

No Longer Available RAIL-FRAME - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0413-0716

No Longer Available RAIL-FRAME - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0413-0721

FRAME RAIL (LH) - SEARS RED (0721)

$

$

Not available

MTD 783-0413-4044

RAIL-FRAME LH - CRAFTSMAN RED (4044)

$

$

Not available

$

$

10

MTD 783-0412B

Frame Rail-R.H.

Variations

MTD 783-0412B-0498

No Longer Available RAIL-FRAME - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0412B-0637

RAIL-FRAME RH - POWDER BLACK (0637)

$

$

Not available

MTD 783-0412B-0648

No Longer Available RAIL-FRAME - TECH GRAY (0648)

$

$

Not available

MTD 783-0412B-0650

No Longer Available RAIL-FRAME - RED METALLIC (0650)

$

$

Not available

MTD 783-0412B-0674

No Longer Available RAIL-FRAME - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0412B-0716

No Longer Available RAIL-FRAME - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0412B-0721

No Longer Available RAIL-FRAME - SEARS RED (0721)

$

$

Not available

MTD 783-0412B-4044

No Longer Available - CRAFTSMAN RED (4044)

$

$

Not available

$

$

11

MTD 747-0985

Deck Rod

$

$

Not available

12

MTD 736-3019

Flat Washer .531 X 1.062 X .134

$5.99

$

In Stock, Qty 11

0

14

MTD 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

15

MTD 736-0187

Flat Washer .64 I.D. X 1.24 X .06

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0101

Flat Washer 3/8 X 1.00 X .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

17

MTD 735-0271

Rubber Bumper
(Superseded to 735-0271A)

$8.99

$

In Stock, only 4 left!

0

18

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

19

MTD 732-0829

Extension Spring
(Superseded to 932-0829)

$

$

Not available

20

MTD 726-0272

Clamp: 9/16 dia.

$7.49

$

Usually ships in 3-6 days

0

21

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

22

MTD 714-0470

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

23

MTD 714-0147

Hairpin Clip

$4.99

$

In Stock, Qty 6

0

25

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

26

MTD 712-0271

Hex Nut

$4.49

$

In Stock, Qty 10

0

27

MTD 712-0265

Hex Nut 1/4-20

$3.99

$

Usually ships in 3-6 days

0

28

MTD 711-1165

Clevis Pin

$13.99

$

Usually ships in 3-6 days

0

29

MTD 711-0332

Lift Bracket Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

30

MTD 710-1611B

TT Screw 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

31

MTD 710-1017

Torx Mach. AB Scr. 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

32

MTD 710-0599

Hex TT Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

33

MTD 683-0163A

Steering Support Bracket

Variations

MTD 683-0163A-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 683-0160

Pivot Bracket Assembly: Hood

$

$

Not available

35

MTD 683-0142

Pivot Bar Assembly

Variations

MTD 683-0142-0637

No Longer Available PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 683-0142-0665

No Longer Available PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

$

$
