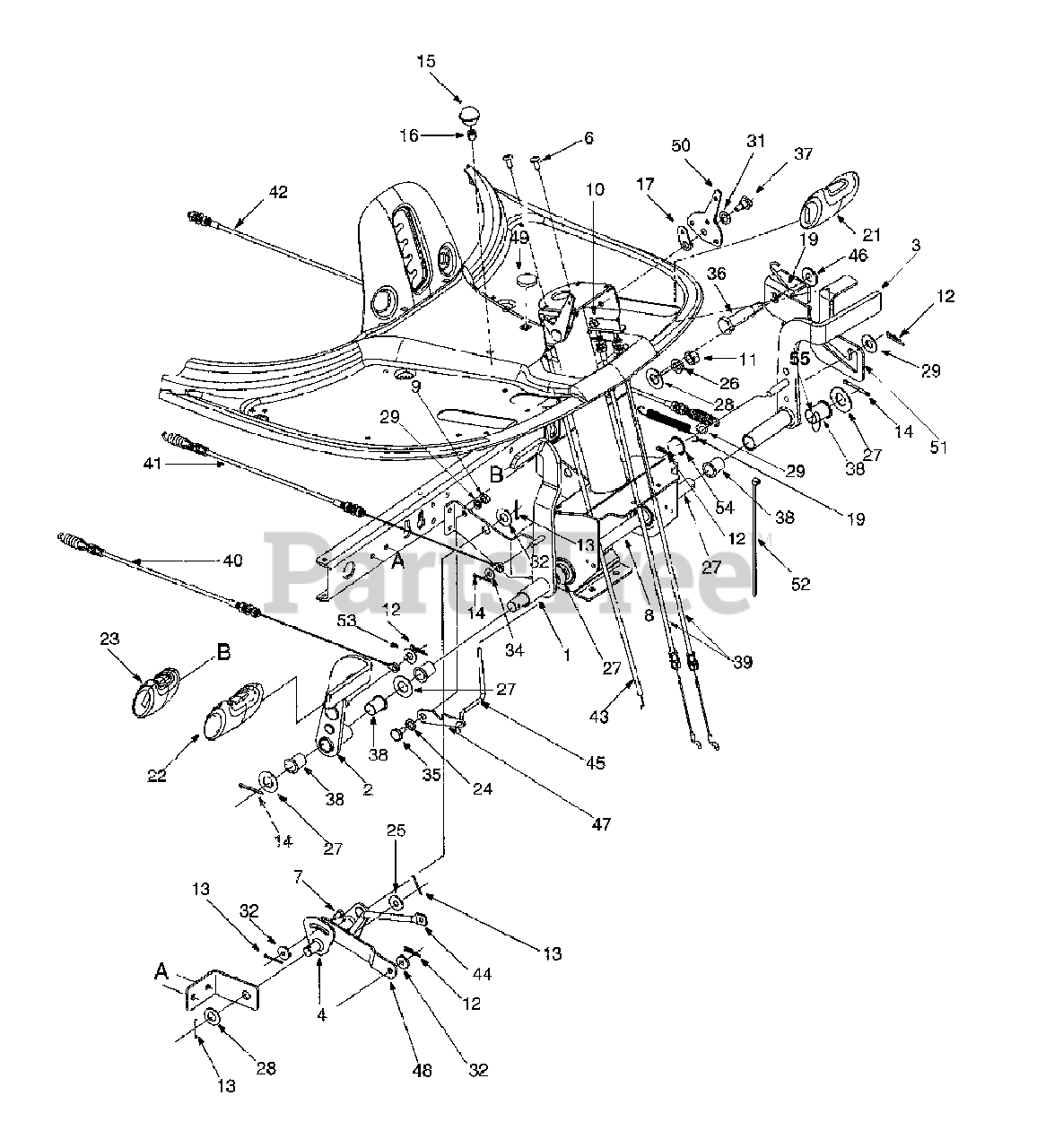

13A-328-402 - Yard-Man Lawn Tractor (2000) Foot Controls & Cables Parts Diagram

Lawn Tractor

Foot Controls & Cables Parts Diagram

  • Title

1

MTD 683-0155

Brake Pedal Assembly
(Superseded to 683-0155A-0637)

Variations

MTD 683-0155-0637

PEDAL ASM-BRAKE - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 683-0156

Variable Pedal Assembly

Variations

MTD 683-0156-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 683-0275

Deck Pedal Assembly
(Superseded to 683-0275A)

Variations

MTD 683-0275-0498

PEDAL ASM-DECK - OLD CUB YELLOW (0498)

$

$

Not available

MTD 683-0275-0637

PEDAL ASM-DECK - POWDER BLACK (0637)

$

$

Not available

MTD 683-0275-0650

PEDAL ASM-DECK - RED METALLIC (0650)

$

$

Not available

MTD 683-0275-0665

PEDAL ASM-DECK - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0275-0716

PEDAL ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

MTD 683-0161

Shift Cam Assembly
(Superseded to 683-0161-0637)

Variations

MTD 683-0161-0637

CAM ASSEMBLY-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 710-1017

Ab Screw 1/4-14 X .625

$8.49

$

In Stock, Qty 9

0

7

MTD 711-0701

Clevis Pin
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

8

MTD 711-1156

Shaft

$

$

Not available

9

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

MTD 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

11

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

MTD 714-0111

Hairpin Clip

$4.99

$

In Stock, Qty 13

0

14

MTD 714-0470

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

15

MTD 720-0166

Ball Knob

$

$

Not available

16

MTD 731-0405

Snap-on Bushing

$

$

Not available

17

MTD 731-1913

Stop Lever

$10.99

$

Usually ships in 3-6 days

0

19

MTD 732-0865

Torsion Spring

$

$

Not available

?20

MTD 732-0815

Extension Spring

$

$

Not available

21

MTD 735-0262

Deck Pad

$

$

Not available

22

MTD 735-0261

Drive Pad

$

$

Not available

23

MTD 735-0263

Brake Pad

$

$

Not available

24

MTD 736-0117

Flat Washer 3/8 X .620 X .033
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

25

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

27

MTD 736-0187

Flat Washer

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0272

Flat Washer .510 X 1.00 X .060

$4.99

$

In Stock, Qty 20+

0

29

MTD 736-0133

Flat Washer .406 x 1.25 x .10

$5.49

$

In Stock, Qty 7

0

?30

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

31

MTD 736-0608

Spring Washer
(Superseded to 936-0141)

$6.99

$

In Stock, only 2 left!

0

32

MTD 736-3000

Flat Washer
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

?33

MTD 736-3019

Flat Washer .531 X 1.062 X .134

$5.99

$

In Stock, Qty 11

0

34

MTD 736-3020

Flat Washer .271 X .630 X .065

$6.99

$

In Stock, Qty 9

0

35

MTD 738-0255

Shoulder Screw .375 Dia X .18
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 6

0

36

MTD 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

37

MTD 738-0974

Shoulder Screw .375 X .380 X 1/4-20

$10.99

$

In Stock, only 2 left!

0

38

MTD 741-0591

Flange Bearing

$4.49

$

In Stock, Qty 9

0

39

MTD 746-0935A

Shift Cable
(Superseded to 946-0935A)

$74.99

$

In Stock, Qty 14

0

40

MTD 746-0936

Variable Drive Cable
(Superseded to 946-0936)

$61.99

$

In Stock, only 2 left!

0

41

MTD 746-0937

Brake Cable
(Superseded to 946-0937)

$62.99

$

Usually ships in 3-6 days

0

42

MTD 746-0940

Deck Cable
(Superseded to 946-0940)

$66.99

$

In Stock, only 4 left!

0

43

MTD 746-0964

Throttle Choke Cable: 67"
(Superseded to 946-0964)

$

$

Not available

44

MTD 747-0963

Brake Rod
(Superseded to 747-0963A)

$

$

Not available

45

MTD 747-0964

Brake Lock Out Rod

$

$

Not available

46

MTD 750-0736

Shoulder Spacer
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

47

MTD 783-0473

Brake Lock Out Bracket
(Superseded to 783-0473-0637)

Variations

MTD 783-0473-0637

BRACKET-BRAKE LOCK - POWDER BLACK (0637)

$

$

Not available

$

$

48

MTD 783-0525

Self-Propelled Pedal Link
(Superseded to 783-0525-0637)

Variations

MTD 783-0525-0637

LINK-VARIABLE SPEE - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 726-0450

Plug Cap

$

$

Not available

50

MTD 783-0593A

Shift Lever

$29.99

$

Usually ships in 3-6 days

0

51

MTD 783-0794

Bracket: Lock-Out Pedal
(Superseded to 783-0794-0637)

Variations

MTD 783-0794-0637

BRACKET-LOCK PEDAL - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

53

MTD 736-0300

Flat Washer .406 I.D. x .875 O.D.

$4.49

$

In Stock, Qty 20+

0

54

MTD 726-0100

Push Cap

$4.49

$

In Stock, Qty 18

0

55

MTD 736-0262

Flat Washer

$3.99

$

In Stock, Qty 20+

0
