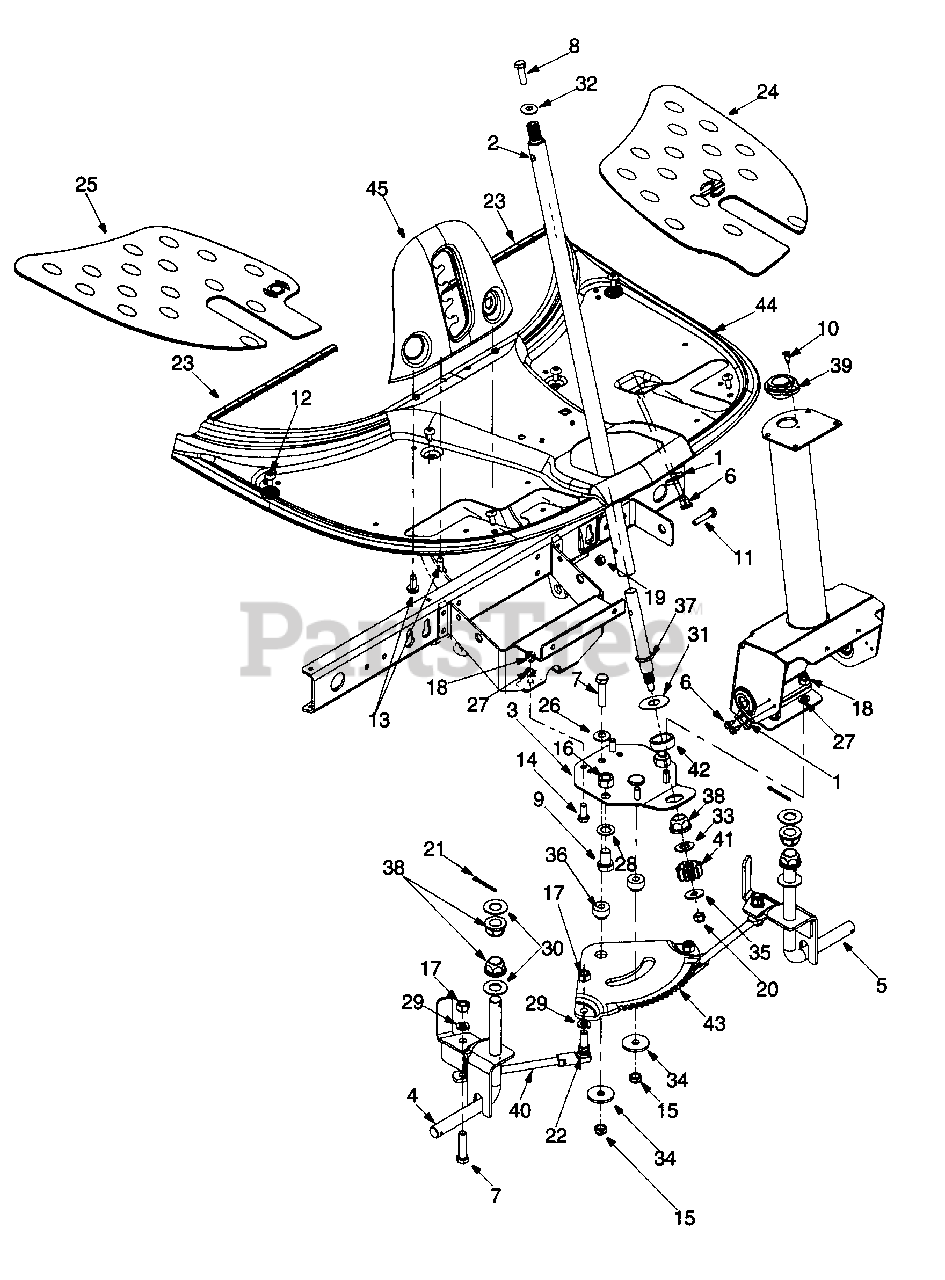

13A-328-129 - Yard Machines Lawn Tractor (1999) (Home Depot) Front Floor Console & Steering Parts Diagram

Lawn Tractor

Front Floor Console & Steering Parts Diagram

  • Title

1

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

2

MTD 650-0007

Steering Tube Assembly
(Superseded to 650-0007-0637)

Variations

MTD 650-0007-0637

Steering Tube Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 683-0033A

Steering Support Bracket

$

$

Not available

4

MTD 683-0178A

Front Axle Assembly: RH
(Superseded to 983-0178A)

$

$

Not available

5

MTD 683-0179A

Front Axle Assembly: LH
(Superseded to 983-0179A)

$

$

Not available

6

MTD 710-0224

Hex Screw AB
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

7

MTD 710-0459A

Hex Screw 3/8-24 x 1.5" Gr. 5 Special

$6.99

$

In Stock, Qty 8

0

8

MTD 710-0643

Lock Screw 5/16-18 x 1.0" Gr. 5

$6.99

$

In Stock, Qty 5

0

9

MTD 710-0689

Hex Screw 1/2-13 x 0.75"

$6.99

$

Usually ships in 3-6 days

0

10

MTD 710-0837

Oval Csunk Screw #10-16 x 0.625"

$4.49

$

In Stock, Qty 6

0

11

MTD 710-0958

Hex Screw 1/4-20 x 1.25 Gr. 5 Special
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

12

MTD 710-1017

AB Screw 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

13

MTD 710-1611

Self-Tapping Screw 5/16-18 x 0.75"
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

14

MTD 710-3008

Hex Screw 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0116

Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

16

MTD 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0241

Hex Nut

$4.49

$

In Stock, Qty 13

0

18

MTD 712-0267

Hex Nut
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

20

MTD 712-0411

Lock Nut

$4.49

$

In Stock, Qty 20+

0

21

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

22

MTD 723-0156

Ball Joint
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

23

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

24

MTD 735-0265

Floor Pad: LH

$

$

Not available

25

MTD 735-0266

Floor Pad: RH
(Superseded to 735-0266A)

$

$

Not available

26

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

29

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0187

Flat Washer

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0196

Flat Washer

$

$

Not available

32

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0272

Flat Washer

$4.99

$

In Stock, Qty 20+

0

34

MTD 736-0320

Flat Washer

$6.99

$

In Stock, Qty 7

0

35

MTD 736-3078

Flat Washer

$4.49

$

In Stock, only 3 left!

0

36

MTD 738-0541

Spacer

$

$

Not available

37

MTD 738-3089A

Steering Adapter

$

$

Not available

38

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

39

MTD 741-0356

Bearing: Steering Column
(Superseded to 741-0356A)

$7.49

$

In Stock, only 1 left!

0

40

MTD 747-0955

Tie Rod

$

$

Not available

41

MTD 748-0290

Pinion Gear
(Superseded to 948-0290)

$

$

Not available

42

MTD 750-0532

Spacer
(Superseded to 950-0532)

$

$

Not available

43

MTD 783-0411

Gear: Steering Segment

$

$

Not available

44

MTD 783-0565A

Upper Frame Cover
(Superseded to 783-0565C)

Variations

MTD 783-0565A-0499

No Longer Available COVER-UPPE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0565A-0637

COVER-UPPER FRAME - POWDER BLACK (0637)

$

$

Not available

MTD 783-0565A-0662

No Longer Available COVER-UPPE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0565A-0665

COVER-UPPER FRAME - YARDMAN GREEN (0665)

$

$

Not available

$

$

45

MTD 783-0566A

Lift Plate

Variations

MTD 783-0566A-0498

No Longer Available PLATE-LIFT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0566A-0637

PLATE - POWDER BLACK (0637)

$

$

Not available

MTD 783-0566A-0650

No Longer Available PLATE-LIFT - RED METALLIC (0650)

$

$

Not available

MTD 783-0566A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0566A-0665

No Longer Available PLATE-LIFT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0566A-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0566A-0721

No Longer Available - SEARS RED (0721)

$

$

Not available

MTD 783-0566A-4044

No Longer Available - CRAFTSMAN RED (4044)

$

$

Not available

$32.99

$

Usually ships in 3-6 days

0
