13A-328-129 - Yard Machines Lawn Tractor (1999) (Home Depot) Frame Assembly Parts Diagram

Lawn Tractor

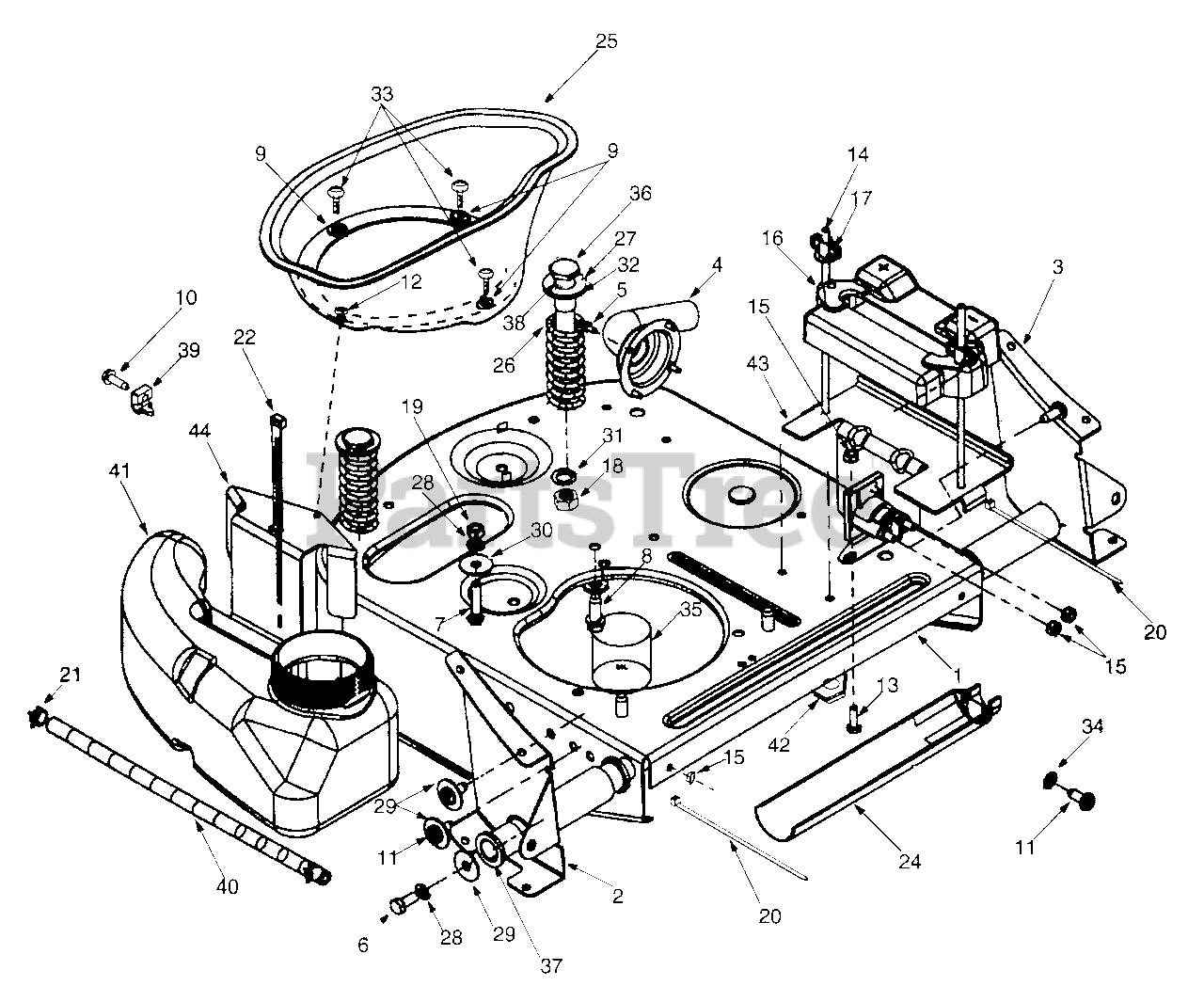

Frame Assembly Parts Diagram

  • Title

1

MTD 683-0149A

Frame Assembly

Variations

MTD 683-0149A-0637

No Longer Available FRAME ASM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0149A-0665

No Longer Available FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

2

MTD 683-0190

Frame Rail Support: RH

Variations

MTD 683-0190-0637

No Longer Available RAIL SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 683-0191

Frame Rail Support: LH

Variations

MTD 683-0191-0637

No Longer Available RAIL SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 683-0192

Muffler Pipe Extension

$

$

Not available

5

MTD 710-0148

Hex Fl. Screw #8-32 x 0.375

$4.49

$

In Stock, Qty 16

0

6

MTD 710-0157

Hex Screw 5/16-24 x .75" Gr. 5

$4.49

$

In Stock, Qty 18

0

7

MTD 710-0624

Hex Screw 5/16-24 x 1.5" Gr. 5

$5.99

$

Usually ships in 3-6 days

0

8

MTD 710-0654A

Hex Washer Head TT Screw 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0871

Hex Slot Sems Screw #10-32 x 0.38

$

$

Not available

10

MTD 710-1237

Hex Washer TT Screw #10-32 x 0.625"

$4.49

$

Usually ships in 3-6 days

0

11

MTD 710-1611

TT Screw 5/16-18 x 0.75"
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

12

MTD 710-1653

Machine Screw #10-32 x 0.5"
(Superseded to 710-0899A)

$6.99

$

Usually ships in 3-6 days

0

13

MTD 710-3015

Hex Screw 1/4-20 x 0.75"

$3.99

$

In Stock, Qty 20+

0

14

MTD 711-0222A

Battery Hold-Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

15

MTD 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

16

MTD 731-0708

Battery Cover

$

$

Not available

MTD 712-0291

Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

17

MTD 712-0397

Wing Nut with Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-3017

Hex Nut

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-3057

Hex Nut 5/16-24 Gr. 5
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

20

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

21

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

22

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

24

MTD 731-1682A

Oil Drain Sleeve

$7.99

$

In Stock, Qty 6

0

25

MTD 731-1945

Engine Duct

$

$

Not available

26

MTD 732-3080

Compression Spring
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

27

MTD 735-0273

Rubber Washer

$8.99

$

Usually ships in 3-6 days

0

28

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

MTD 736-0123

Flat Washer
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

30

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

32

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0400

Flat Washer

$5.49

$

In Stock, Qty 12

0

34

MTD 736-0607

Lock Washer

$3.99

$

In Stock, Qty 20+

0

35

MTD 737-0169

Motor Oil

$

$

Currently unavailable

36

MTD 738-0960

Shoulder Screw

$16.99

$

Usually ships in 3-6 days

0

37

MTD 741-0516

Flange Bearing
(Superseded to 741-0516B)

$6.49

$

In Stock, Qty 20+

0

38

MTD 741-0591

Flange Bearing

$4.49

$

In Stock, Qty 9

0

39

MTD 751B213146

Throttle Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

40

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

41

MTD 751-0656

Fuel Tank

$

$

Not available

42

MTD 783-0417

Transaxle Support Bracket

Variations

MTD 783-0417-0637

No Longer Available BRACKET-SU - POWDER BLACK (0637)

$

$

Not available

MTD 783-0417-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

MTD 783-0624

Battery Bracket

Variations

MTD 783-0624-0637

Battery Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 783-0630

Fuel Tank Bracket

Variations

MTD 783-0630-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

?45

MTD 751-0649

Fuel Tank Cap

Note: (Not shown)

$

$

Not available
