13A-328-129 - Yard Machines Lawn Tractor (1999) (Home Depot) Deck Hanger Link Parts Diagram

Lawn Tractor

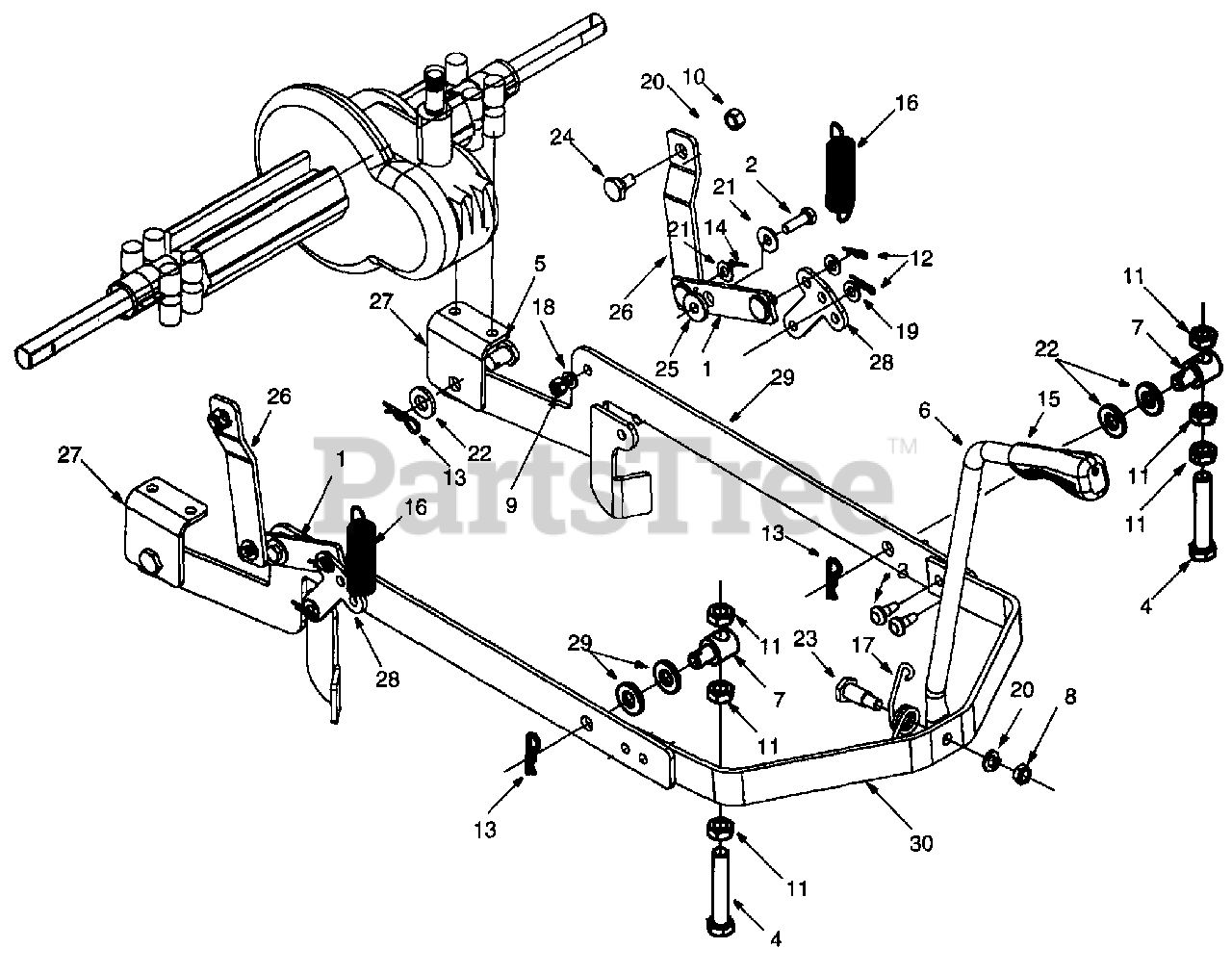

Deck Hanger Link Parts Diagram

  • Title

1

MTD 683-0152

Pivot Link Assembly

Variations

MTD 683-0152-0637

No Longer Available LINK ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0376

Hex Screw 5/16-18 X 1.00 Gr. 5

$3.99

$

In Stock, Qty 20+

0

3

UNKNOWN

$

$

Not available

4

MTD 710-3230

Hex Bolt 1/2-13 X 2.75 Gr. 5 Special

$12.99

$

Usually ships in 3-6 days

0

5

MTD 711-0332

Lift Bracket Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

6

MTD 711-1120

Lift Rod

$

$

Not available

7

MTD 711-3319

Ferrule
(Superseded to 911-3319)

$

$

Not available

8

MTD 712-3008

Jam Nut 3/8-16 Gr. 5

$4.99

$

In Stock, Qty 16

0

9

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0266

Hex Cent. Lock Nut 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-3048

Hex Jam Nut 1/2-13 Gr. 5

$4.99

$

In Stock, Qty 20+

0

12

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

MTD 714-0147

Cotter Pin

$4.99

$

In Stock, Qty 6

0

14

MTD 714-3010

Cotter Pin

$4.99

$

In Stock, only 1 left!

0

15

MTD 720-0298

Handle Grip

$43.99

$

Usually ships in 3-6 days

0

16

MTD 732-0829

Extension Spring
(Superseded to 932-0829)

$

$

Not available

17

MTD 732-0837

Torsion Spring

$

$

Not available

18

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 736-0140

Flat Washer .385 I.D. x .620 O.D.

Note: (Code N)

$7.49

$

In Stock, Qty 6

0

20

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

21

MTD 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

22

MTD 736-3019

Flat Washer

$5.99

$

In Stock, Qty 11

0

23

MTD 738-0145

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

24

MTD 738-0183

Shoulder Screw
(Superseded to 938-0183)

$

$

Not available

25

MTD 738-0958

Shoulder Spacer
(Superseded to 938-0958)

$4.49

$

Usually ships in 3-6 days

0

26

MTD 783-0435

Upper Deck Link

Variations

MTD 783-0435-0637

LINK-UPPER DECK - POWDER BLACK (0637)

$

$

Not available

MTD 783-0435-0665

LINK-UPPER DECK - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0435-0721

No Longer Available LINK-UPPER - SEARS RED (0721)

$

$

Not available

MTD 783-0435-4044

No Longer Available LINK-UPPER - CRAFTSMAN RED (4044)

$

$

Not available

$

$

27

MTD 783-0437

Axle Bracket: Rear

Variations

MTD 783-0437-0637

BRACKET-REAR AXLE - POWDER BLACK (0637)

$

$

Not available

MTD 783-0437-0665

BRACKET-REAR AXLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0437-0721

No Longer Available BRACKET-RE - SEARS RED (0721)

$

$

Not available

MTD 783-0437-4044

No Longer Available BRACKET-RE - CRAFTSMAN RED (4044)

$

$

Not available

$

$

28

MTD 783-0440

Lower Link

Variations

MTD 783-0440-0637

Lower Link - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 736-0257

Flat Washer .526 I.D. x 1.262 O.D.
(Superseded to 936-0179)

Note: (Code N)

$4.99

$

In Stock, only 2 left!

0

30

MTD 683-0194

Crossbar Lift Link
(Superseded to 683-0194A-0637)

Variations

MTD 683-0194-0637

ARM ASM-LIFT - POWDER BLACK (0637)

$233.99

$

In Stock, only 1 left!

0

$233.99

$

In Stock, only 1 left!

0
