13A-325-402 - Yard-Man Lawn Tractor (1999) Wheel Assembly Parts Diagram

Lawn Tractor

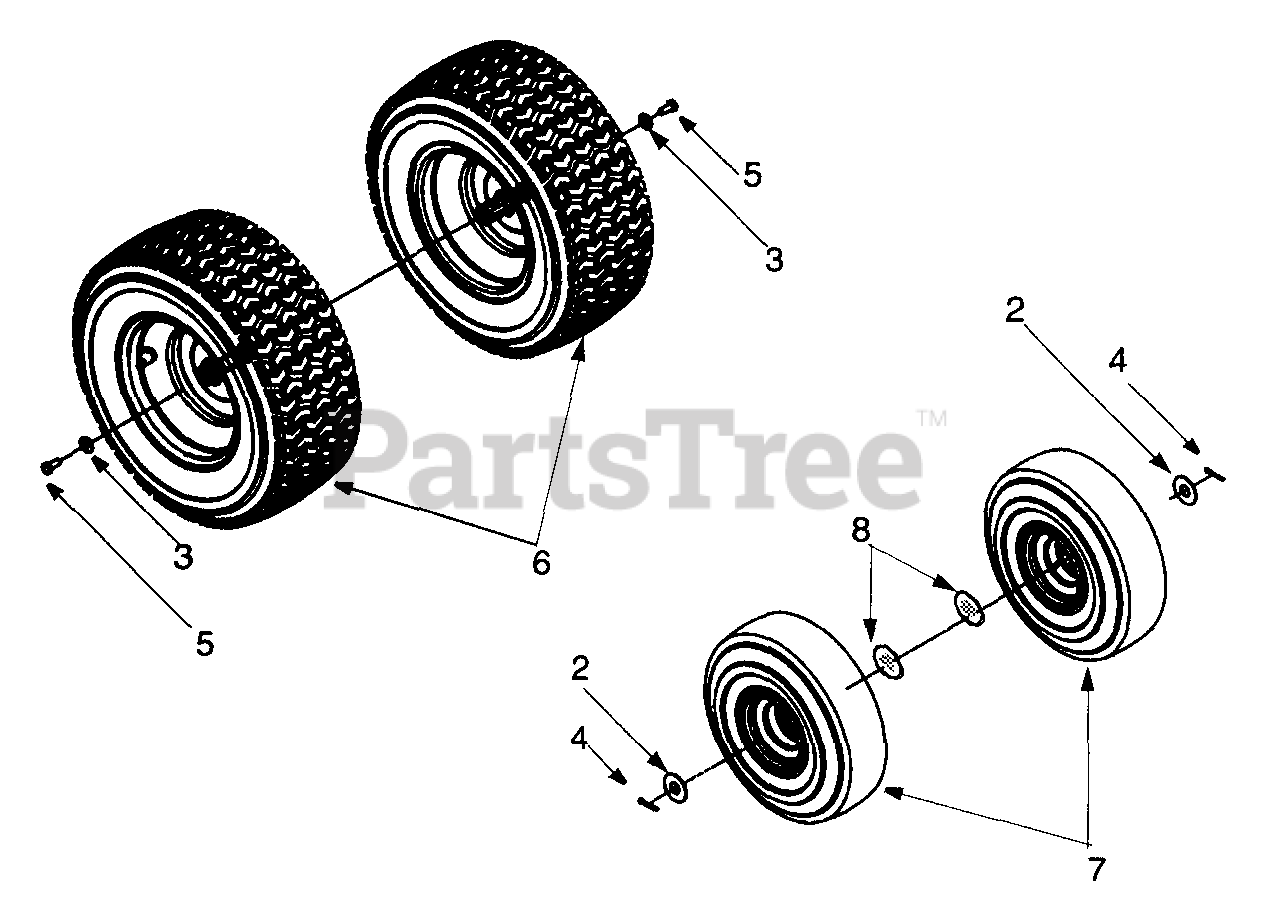

Wheel Assembly Parts Diagram

  • Title

?1

MTD 737-0288

Grease Fitting

Note: Not Shown

$

$

Currently unavailable

2

MTD 736-0285

Flat Washer .635 x 1.589 x .06

$4.49

$

In Stock, Qty 9

0

3

MTD 736-0242

Bell Washer .345 I.D. x.88 O.D.x 06

$4.49

$

In Stock, Qty 20+

0

4

MTD 714-0115

Hairpin Clip

$3.99

$

In Stock, only 2 left!

0

5

MTD 710-0627

Hex Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 634-0139

Rear Wheel 16.0 x 6.5 x 8.0

Variations

MTD 634-0139-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$319.99

$

Usually ships in 3-6 days

0

MTD 634-0139-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$319.99

$

Usually ships in 3-6 days

0

MTD 634-0139-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$108.99

$

In Stock, only 2 left!

0

MTD 634-0139-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$297.99

$

Usually ships in 3-6 days

0

MTD 634-0139-0976

WHEEL ASM-COMPLETE - Kenda Yellow (0976)

$297.99

$

Usually ships in 3-6 days

0

$259.99

$

Usually ships in 3-6 days

0

7

MTD 634-0169

Front Wheel 11.0 x 4.0 x 4.0
(Superseded to 634-0147)

Variations

MTD 634-0169-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$

$

Not available

MTD 634-0169-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

MTD 634-0169-0941

Wheel Assembly, Complete - Carlisle Yellow (0941)

$

$

Not available

$

$

8

MTD 736-0366

Flat Washer 5/8 I.D. x 1.0 O.D.

Note: Code: N

$4.49

$

In Stock, Qty 20+

0
