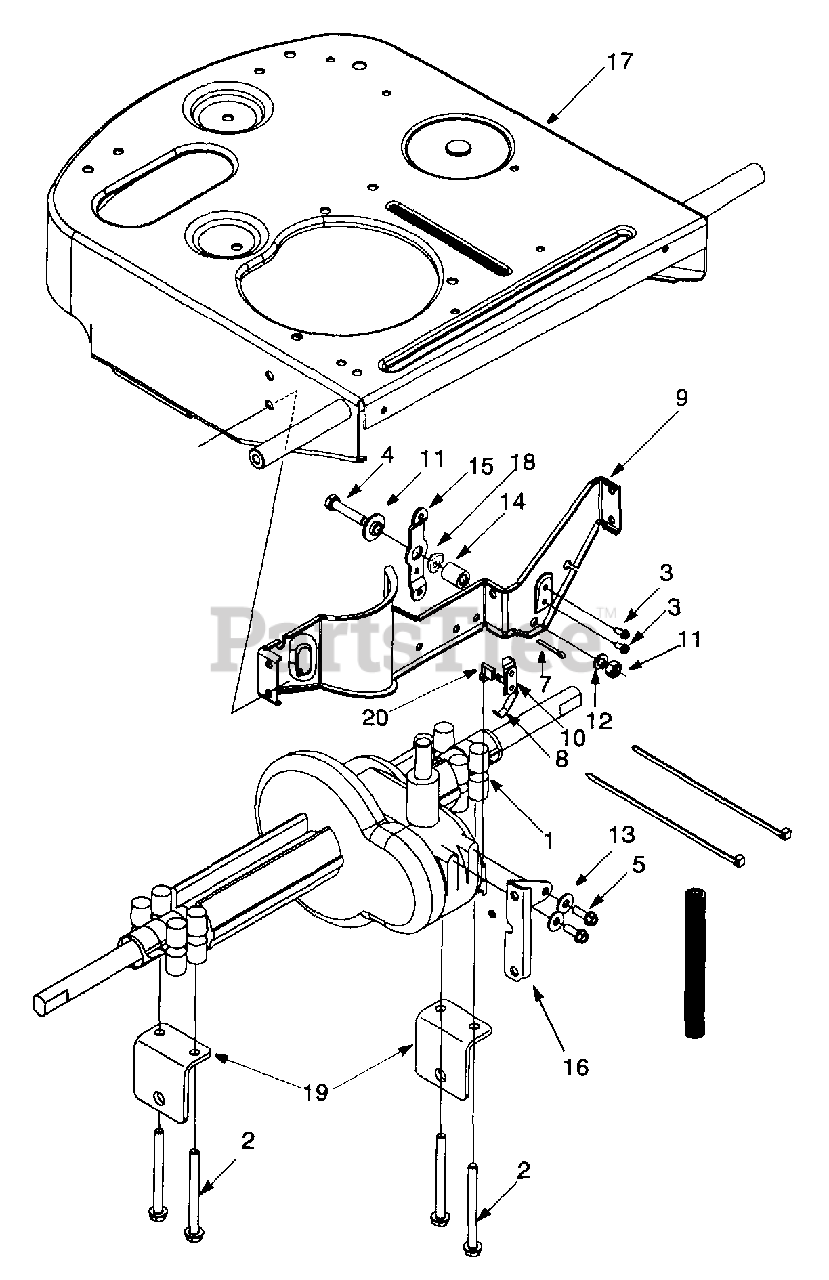

13A-325-402 - Yard-Man Lawn Tractor (1999) Transaxle Assembly Parts Diagram

Lawn Tractor

Transaxle Assembly Parts Diagram

  • Title
1

MTD 629-0865

Harness Assembly Adapter

$

$

Not available

2

MTD 710-1208

Hex TT Screw 5/16-1B x 3.50

$6.99

$

In Stock, only 2 left!

0

3

MTD 710-0227

Hex Washer Head Self-Tap.Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0805

Hex Screw 5/16-18 x 1.5 Gr.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0642

Thd. Forming Scr. 1/4-20x .75

$4.49

$

In Stock, Qty 20+

0

?6

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

MTD 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

8

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

9

MTD 783-0809

Transaxle Support Bracket

Note: Code: N

Variations

MTD 783-0809-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 725-1713A

Spring Switch
(Superseded to 725-1746)

$

$

Not available

11

MTD 736-0289

Shoulder Bushing
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

12

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0173

Flat Washer .28 I.D. x .74 0.D. x.083

$4.49

$

In Stock, Qty 20+

0

14

MTD 750-1064

Spacer
(Superseded to 950-1064)

$

$

Not available

15

MTD 783-0433A

Shift Lever

$

$

Not available

16

MTD 783-0591

Transaxle Bracket

Variations

MTD 783-0591-0637

Transaxle Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 683-0149A

Frame Assembly

Variations

MTD 683-0149A-0637

No Longer Available FRAME ASM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0149A-0665

No Longer Available FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

18

MTD 736-3013

Flat Washer

$4.49

$

In Stock, only 3 left!

0

19

MTD 783-0437

Rear Axle Bracket

Variations

MTD 783-0437-0637

BRACKET-REAR AXLE - POWDER BLACK (0637)

$

$

Not available

MTD 783-0437-0665

BRACKET-REAR AXLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0437-0721

No Longer Available BRACKET-RE - SEARS RED (0721)

$

$

Not available

MTD 783-0437-4044

No Longer Available BRACKET-RE - CRAFTSMAN RED (4044)

$

$

Not available

$

$

20

MTD 729-0268

Insulation Connector

$

$

Not available
