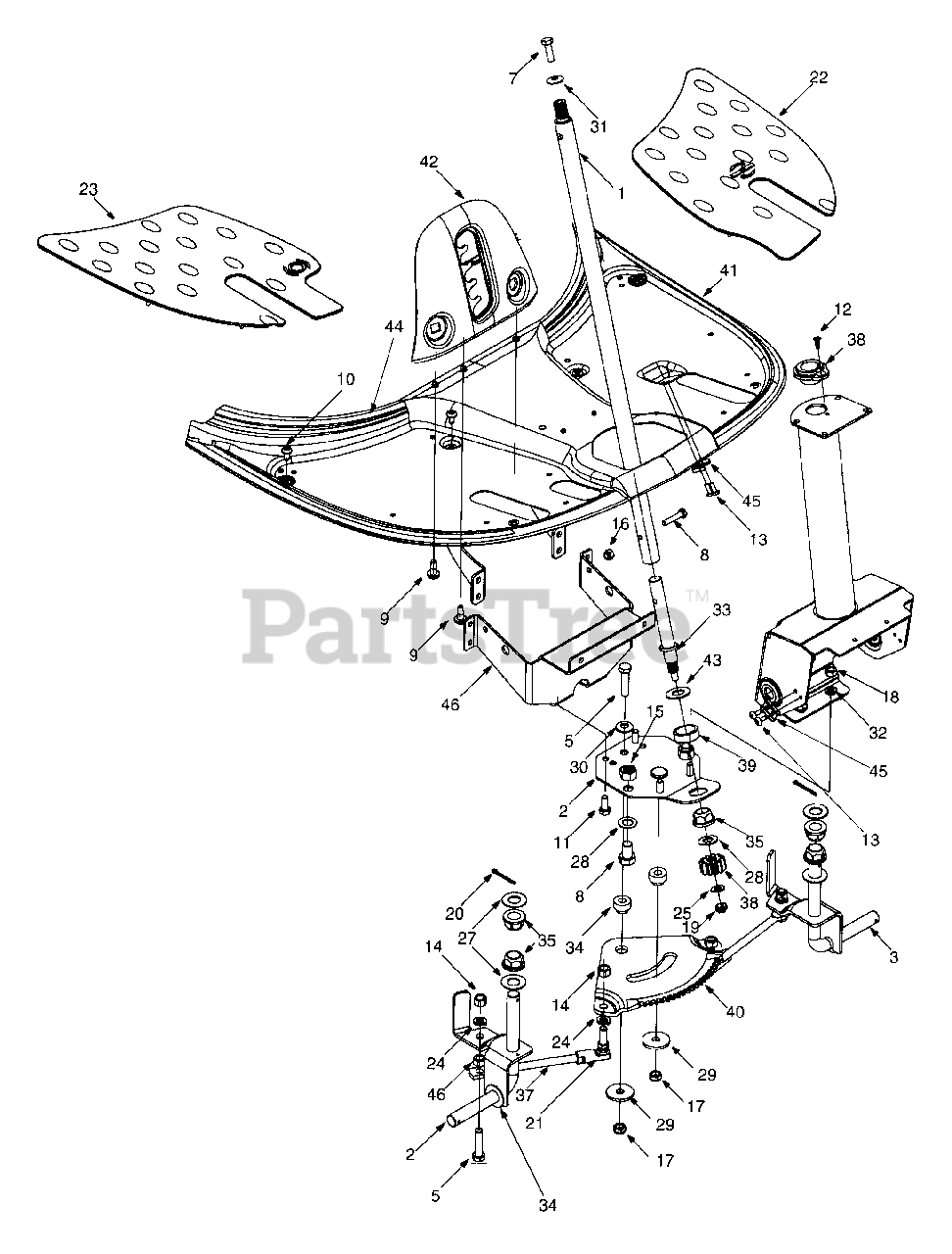

13A-325-401 - Yard-Man Lawn Tractor (1999) Front Floor Console Parts Diagram

Lawn Tractor

Front Floor Console Parts Diagram

  • Title

1

MTD 650-0007

Steering Tube Assembly
(Superseded to 650-0007-0637)

Variations

MTD 650-0007-0637

Steering Tube Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 683-0144A

Front Axle Assembly - R.H.
(Superseded to 983-0144B)

Note: (Model 13A-320-401)

$

$

Not available

MTD 683-0178

Front Axle Assembly - R.H.
(Superseded to 983-0178A)

Note: (Model 13B-320-401)

$

$

Not available

3

MTD 683-0145A

Front Axle Assembly - L.H.
(Superseded to 683-0145B)

Note: (Model 13A-320-401)

$100.99

$

Usually ships in 3-6 days

0

MTD 683-0179

Front Axle Assembly - L.H.
(Superseded to 983-0179A)

Note: (Model 13B-320-401)

$

$

Not available

?4

MTD 683-0033A

Steering Support Bracket Assembly

$

$

Not available

5

MTD 710-0459

Hex Screw 3/8-24 x 1.5 Gr. 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

?6

MTD 710-0958

Hex Screw 1/4-20 x 1.25 Gr. 5 Special
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

7

MTD 710-0643

Hex Screw 5/16-18 x 1.00 Gr. 5

$6.99

$

In Stock, Qty 5

0

8

MTD 710-0689

Hex Screw 1/2-13 x .75

$6.99

$

Usually ships in 3-6 days

0

9

MTD 710-1611

TL Screw 5/16-18 x .75
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

10

MTD 710-1017

AB Screw 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

11

MTD 710-3008

Hex Screw 5/16-18 x .75 Grade 5

Note: Code: N

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0837

C-Sunk Phillips screw 10-16 x .62

$4.49

$

In Stock, Qty 6

0

13

MTD 710-0351

Philips Screw 10-16 x .50

$4.49

$

In Stock, only 2 left!

0

14

MTD 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

15

MTD 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

17

MTD 712-0116

Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

18

MTD 712-0267

Hex nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0411

Hex Nut 5/16-24

$4.49

$

In Stock, Qty 20+

0

20

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 723-0156

Ball Joint
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

22

MTD 735-0265

Floor Pad - L.H.

$

$

Not available

23

MTD 735-0266

Floor Pad - R.H.
(Superseded to 735-0266A)

$

$

Not available

24

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-3078

Flat Washer.34 I.D. x 1.0 x .063

Note: Code: N

$4.49

$

In Stock, only 3 left!

0

?26

MTD 736-0272

Flat Washer .510 x 1.00 x .06

$4.99

$

In Stock, Qty 20+

0

27

MTD 736-0187

Flat Washer .64 I.D. x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0160

Flat Washer .536 I.D. x .930 O.D. x .05

$4.49

$

In Stock, only 2 left!

0

29

MTD 736-0320

Flat Washer .38 I.D. x 1.38 O.D.

$6.99

$

In Stock, Qty 7

0

30

MTD 736-0105

Bell Washer .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0242

Bell Washer .305 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 738-3089A

Steering Adapter .625 dia. x 5.62

$

$

Not available

34

MTD 738-0541

Spacer

$

$

Not available

35

MTD 741-0225

Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

?36

MTD 741-0356

Steering Column Bearing
(Superseded to 741-0356A)

$7.49

$

In Stock, only 1 left!

0

37

MTD 747-0955

Tie Rod

$

$

Not available

38

MTD 748-0290

Steering Pinion Gear
(Superseded to 948-0290)

$

$

Not available

39

MTD 750-0532

Spacer
(Superseded to 950-0532)

$

$

Not available

40

MTD 783-0411

Steering Gear Segment

$

$

Not available

41

MTD 783-0566A

Lift Plate

Note: Code: N

Variations

MTD 783-0566A-0498

No Longer Available PLATE-LIFT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0566A-0637

PLATE - POWDER BLACK (0637)

$

$

Not available

MTD 783-0566A-0650

No Longer Available PLATE-LIFT - RED METALLIC (0650)

$

$

Not available

MTD 783-0566A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0566A-0665

No Longer Available PLATE-LIFT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0566A-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0566A-0721

No Longer Available - SEARS RED (0721)

$

$

Not available

MTD 783-0566A-4044

No Longer Available - CRAFTSMAN RED (4044)

$

$

Not available

$32.99

$

Usually ships in 3-6 days

0

42

MTD 783-0565A

Frame Cover: Upper
(Superseded to 783-0565C)

Variations

MTD 783-0565A-0499

No Longer Available COVER-UPPE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0565A-0637

COVER-UPPER FRAME - POWDER BLACK (0637)

$

$

Not available

MTD 783-0565A-0662

No Longer Available COVER-UPPE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0565A-0665

COVER-UPPER FRAME - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

MTD 736-0196

Washer

Note: Code: N

$

$

Not available

44

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

45

MTD 712-0711

Hex Nut 3/8-24

Note: Code: N

$4.49

$

In Stock, Qty 20+

0

46

MTD 737-3007

Grease

Note: Code: N

$

$

Currently unavailable
