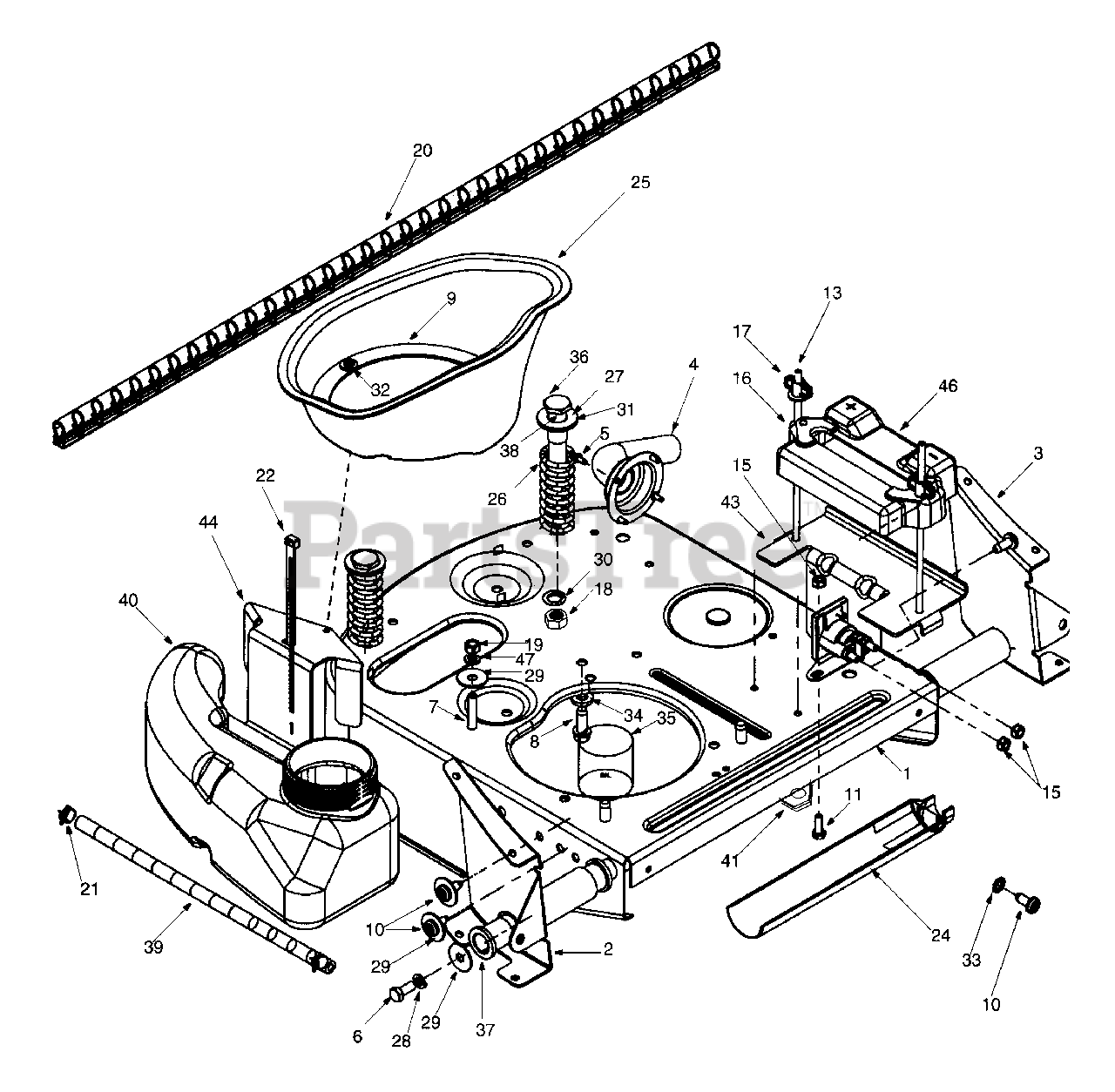

13A-325-401 - Yard-Man Lawn Tractor (1999) Frame Assembly Parts Diagram

Lawn Tractor

Frame Assembly Parts Diagram

  • Title

1

MTD 683-0149A

Frame Assembly

Variations

MTD 683-0149A-0637

No Longer Available FRAME ASM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0149A-0665

No Longer Available FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

2

MTD 683-0190

Frame Rail support RH

Variations

MTD 683-0190-0637

No Longer Available RAIL SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 683-0191

Frame Rail support LH

Variations

MTD 683-0191-0637

No Longer Available RAIL SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 683-0192

Muffler Extension Pipe

$

$

Not available

5

MTD 710-0148

Hex Washer Hd. TT Scr. 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 16

0

6

MTD 710-0157

Hex Screw 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 18

0

7

MTD 710-0624

Hex Hd. Scr. 5/16-24 x 1.50"

$5.99

$

Usually ships in 3-6 days

0

8

MTD 710-0654A

Hex Washer Hd. TT Scr. 3/8-16 x 1.0"

$4.49

$

In Stock, only 4 left!

0

9

MTD 710-0899A

Sems Screw #10-32 x .62

$6.99

$

Usually ships in 3-6 days

0

10

MTD 710-1611

Pan Hd. TL Scr. 5/16-18 x .75"
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

11

MTD 710-3015

Hex Cap Bolt 1/4-20 x .75"

$3.99

$

In Stock, Qty 20+

0

13

MTD 711-0222A

Battery Hold-down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

15

MTD 712-0271

Sems Hex Nut

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0291

Hex Cent. Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

17

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-3057

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

20

7203024

Seal Trim

$

$

Not available

21

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

22

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

?23

MTD 731-0708

Battery Hold Down Cover

$

$

Not available

24

MTD 731-1682A

Oil Sleeve Drain

$7.99

$

In Stock, Qty 6

0

25

MTD 731-1945

Engine Duct

$

$

Not available

26

MTD 732-3080

Compression Spring
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

27

MTD 735-0273

Rubber Washer

$8.99

$

Usually ships in 3-6 days

0

28

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

MTD 736-0123

Flat Washer .344 I.D.
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

30

MTD 736-0169

Lock Washer 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

31

MTD 736-0188

Flat Washer .760 I.D.

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0400

Flat Washer

$5.49

$

In Stock, Qty 12

0

33

MTD 736-0607

Ext. Lock Washer

$3.99

$

In Stock, Qty 20+

0

34

MTD 736-3010

Flat Washer

$4.99

$

In Stock, only 1 left!

0

35

UNKNOWN

$

$

Not available

36

MTD 738-0960

Shoulder Screw .625 X 3.390

$16.99

$

Usually ships in 3-6 days

0

37

MTD 741-0516

Bushing
(Superseded to 741-0516B)

$6.49

$

In Stock, Qty 20+

0

38

MTD 741-0591

Flanged Bearing

$4.49

$

In Stock, Qty 9

0

39

MTD 751-0535

Fuel Line

$

$

Currently unavailable

40

MTD 751-0656

Fuel Tank

$

$

Not available

41

MTD 783-0417

Transaxle Support Bracket

Variations

MTD 783-0417-0637

No Longer Available BRACKET-SU - POWDER BLACK (0637)

$

$

Not available

MTD 783-0417-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

MTD 783-0624

Battery Bracket

Variations

MTD 783-0624-0637

Battery Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 783-0630

Fuel Tank Bracket

Variations

MTD 783-0630-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

?45

MTD 751-3124B

Fuel Cap
(Superseded to 951-3124E)

Note: (Not Shown)

$36.99

$

In Stock, only 1 left!

0

46

MTD 731-0708

Battery Cover

$

$

Not available

47

MTD 736-0119

Lock Washer 1/4" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

MTD 725-1698

Battery
(Superseded to 753-0607)

Note: (Not Shown)

$170.99

$

Usually ships in 3-6 days

0
