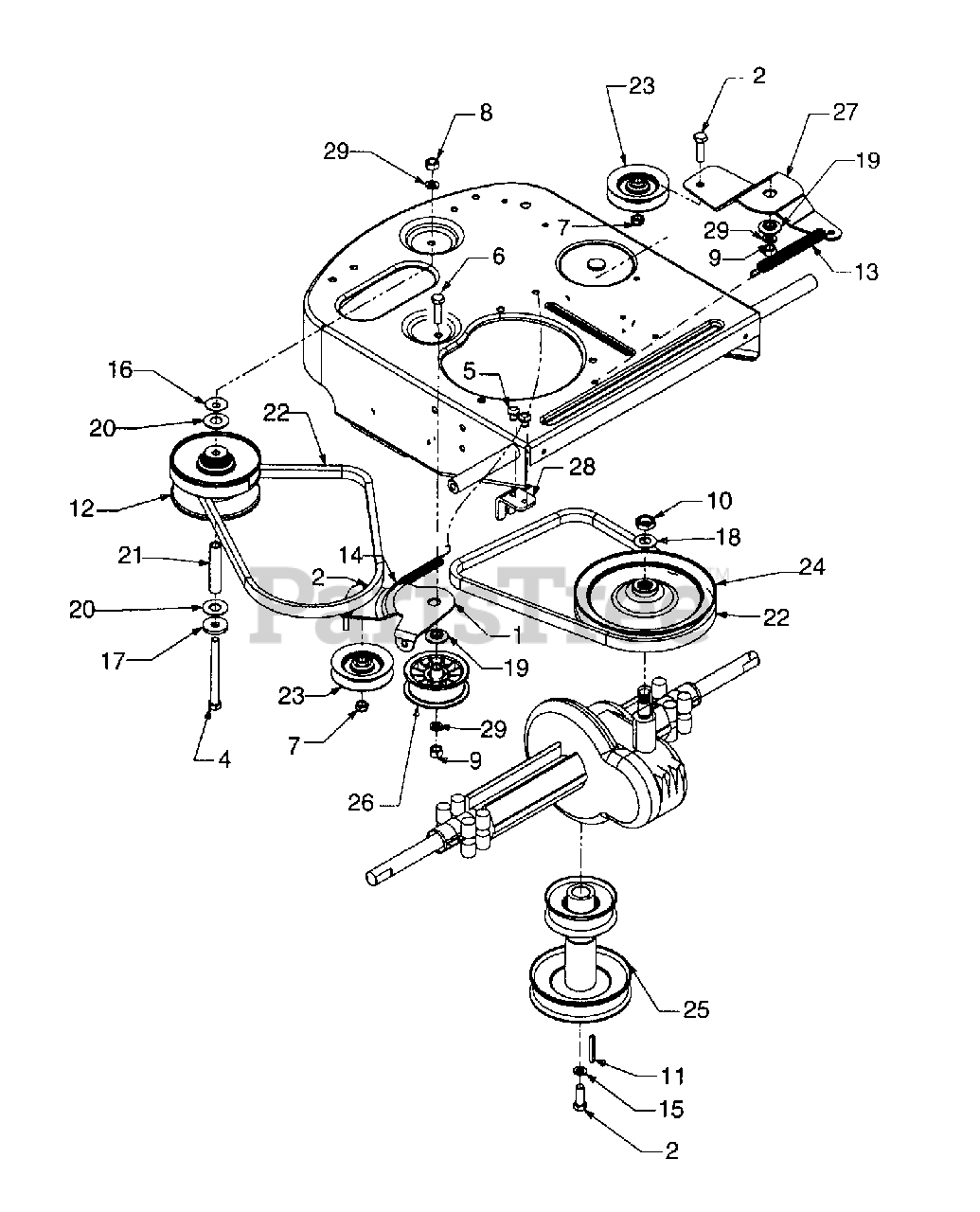

13A-325-190 - White Outdoor Yard Bug 27" Rear-Engine Riding Mower (1999) Variable Drive Parts Diagram

Yard Bug 27" Rear-Engine Riding Mower

Variable Drive Parts Diagram

  • Title

1

White Outdoor 683-0147

Idler Bracket Assembly
(Superseded to 683-0147C)

$

$

Not available

2

White Outdoor 710-0134

Hex Screw 3/8-24 x 1.00

$4.49

$

In Stock, Qty 20+

0

?3

White Outdoor 710-0191

Hex Screw 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

4

White Outdoor 710-0902

Cap Screw 3/8-24 x 3.75

$7.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-1611

Pan Head TL Screw 5/16-18 x .75
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

6

White Outdoor 710-3096

Hex Screw 3/8-16 x 2.0 Special

$7.99

$

In Stock, only 1 left!

0

7

White Outdoor 712-0116

Jam Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

8

White Outdoor 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

9

White Outdoor 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 712-3035

Hex Jam Nut 9/16-18 (Gr. 5)

$6.99

$

Usually ships in 3-6 days

0

11

White Outdoor 714-0114

Square Key
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

12

White Outdoor 717-0884

Variable Speed Pulley Assembly

$219.99

$

Usually ships in 3-6 days

0

13

White Outdoor 732-0814

Extension Spring

$7.99

$

In Stock, only 3 left!

0

14

White Outdoor 732-0815

Extension Spring

$

$

Not available

15

White Outdoor 736-0171

Lock Washer 7/16 I.D.

$4.49

$

In Stock, Qty 5

0

16

White Outdoor 736-0219

Bell Washer .406 I.D. x 1.13 O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0247

Flat Washer 3/8 x 1.25 O.D.

$9.49

$

In Stock, Qty 12

0

18

White Outdoor 736-0427

Belleville Washer .567 x 1.125 x .06
(Superseded to 936-0427)

$

$

Not available

19

White Outdoor 738-0968

Shoulder Spacer
(Superseded to 938-0968)

$5.99

$

Usually ships in 3-6 days

0

20

White Outdoor 741-0405

Bearing
(Superseded to 941-0405)

$

$

Not available

21

White Outdoor 750-0705

Spacer

$

$

Not available

22

White Outdoor 754-0453

V-Belt
(Superseded to 954-0453)

$34.99

$

In Stock, only 2 left!

0

23

White Outdoor 756-0116

Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

24

White Outdoor 756-0650

Transmission Pulley

$

$

Not available

25

White Outdoor 756-0658

Engine Pulley
(Superseded to 956-1189A)

$133.99

$

Usually ships in 3-6 days

0

26

White Outdoor 756-0981

Flat Idler Pulley
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

27

White Outdoor 783-0528

Idler Bracket

$

$

Not available

28

White Outdoor 783-0529

Cable Bracket

Variations

White Outdoor 783-0529-0637

BRACKET-DECK CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

29

White Outdoor 736-0169

Lock Washer 3/8 I.D.

$3.99

$

In Stock, Qty 20+
