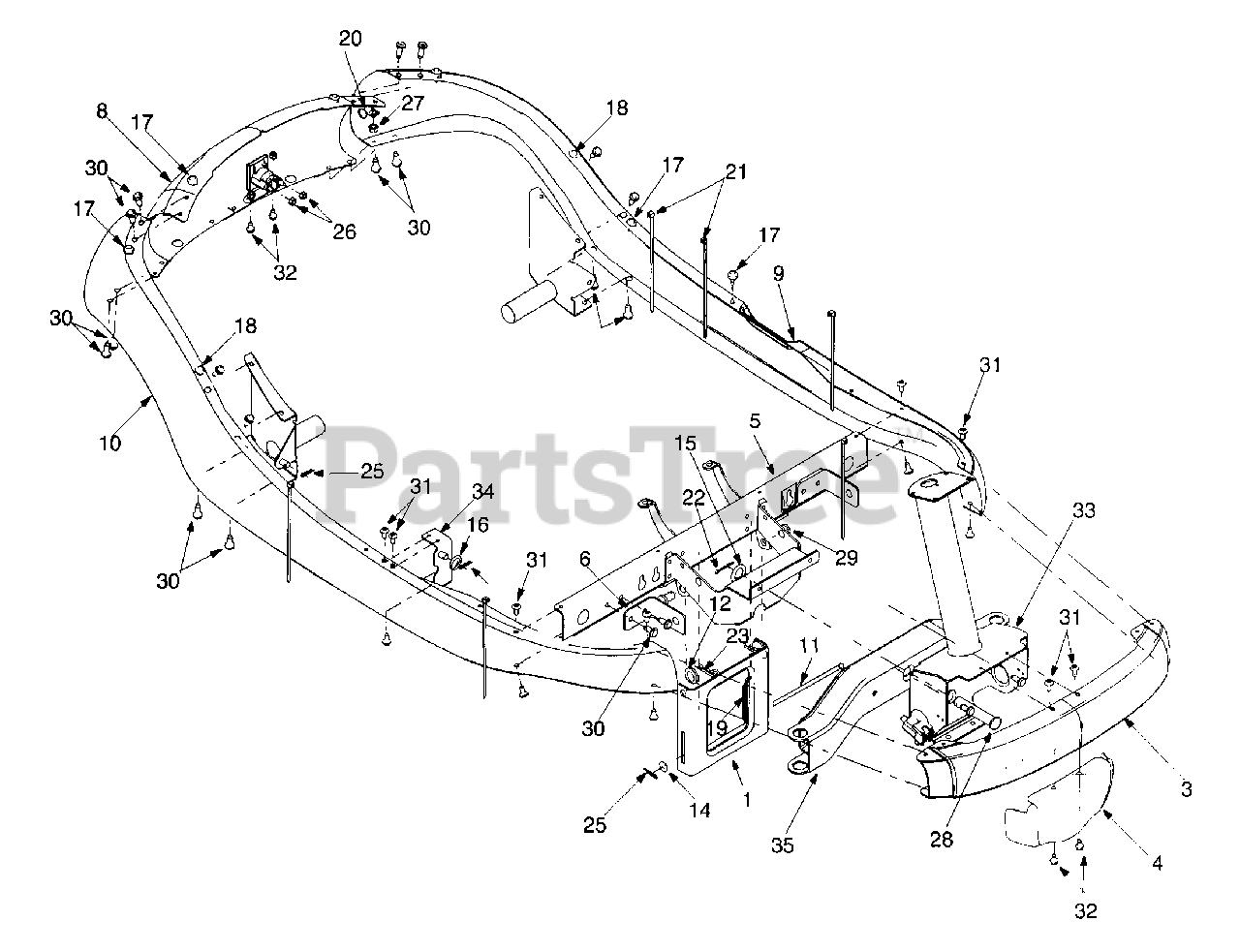

13A-325-190 - White Outdoor Yard Bug 27" Rear-Engine Riding Mower (1999) Upper Frame Parts Diagram

Yard Bug 27" Rear-Engine Riding Mower

Upper Frame Parts Diagram

  • Title

1

White Outdoor 783-0605

Deck Stabilizing Bracket
(Superseded to 783-0605-0637)

Variations

White Outdoor 783-0605-0637

BRACKET-STABILIZER - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 783-0564A

Front Frame: Upper

Note: Code: N Notates a new part (not previously existing).

Variations

White Outdoor 783-0564A-0637

FRAME-UPPER FRONT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0564A-0648

FRAME-UPPER FRONT - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0564A-0650

FRAME-UPPER FRONT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0564A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

4

White Outdoor 783-0811

Front Bumper: Small
(Superseded to 783-0811A)

Note: Code: N Notates a new part (not previously existing).

Variations

White Outdoor 783-0811-0637

COVER STEERING - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0811-0498

COVER STEERING - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0811-0648

COVER STEERING - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0811-0665

COVER STEERING - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

White Outdoor 683-0264

Front Channel Assembly
(Superseded to 683-0264A-0637)

Note: Code: N Notates a new part (not previously existing).

Variations

White Outdoor 683-0264-0637

CHANNEL ASSY-FRONT - POWDER BLACK (0637)

$147.99

$

Usually ships in 3-6 days

0

$147.99

$

Usually ships in 3-6 days

0

6

White Outdoor 783-0554

Cam Bracket

Variations

White Outdoor 783-0554-0637

BRACKET-CAM - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0554-0665

BRACKET-CAM - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

White Outdoor 783-0414A

Frame Rail: Rear

Variations

White Outdoor 783-0414A-0498

FRAME-UPPER REAR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0414A-0637

FRAME-UPPER REAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0414A-0648

FRAME-UPPER REAR - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0414A-0650

FRAME-UPPER REAR - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0414A-0674

FRAME-UPPER REAR - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0414A-0721

FRAME-UPPER REAR - SEARS RED (0721)

$

$

Not available

White Outdoor 783-0414A-4044

FRAME-UPPER REAR - CRAFTSMAN RED (4044)

$

$

Not available

$

$

9

White Outdoor 783-0413

Frame Rail - L.H.

Variations

White Outdoor 783-0413-0637

No Longer Available RAIL-FRAME LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0413-0648

No Longer Available RAIL-FRAME L - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0413-0650

No Longer Available RAIL-FRAME LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0413-0674

No Longer Available RAIL-FRAME LH - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0413-4044

RAIL-FRAME LH - CRAFTSMAN RED (4044)

$

$

Not available

$

$

10

White Outdoor 783-0412A

Frame Rail - R.H.
(Superseded to 783-0412B)

Note: Code: N Notates a new part (not previously existing).

Variations

White Outdoor 783-0412A-0637

RAIL-FRAME RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0412A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0412A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0412A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

11

White Outdoor 747-0985

Deck Rod

$

$

Not available

12

White Outdoor 736-3019

Flat Washer .531 X 1.062 X .134

$5.99

$

In Stock, Qty 11

0

14

White Outdoor 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 736-0187

Flat Washer .64 I.D. X 1.24 X .06

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-0101

Flat Washer 3/8 X 1.00 X .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

17

White Outdoor 735-0271

Bumper
(Superseded to 735-0271A)

$8.99

$

In Stock, only 1 left!

0

18

White Outdoor 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 2 left!

0

19

White Outdoor 732-0829

Extension Spring
(Superseded to 932-0829)

$

$

Not available

20

White Outdoor 726-0272

Clamp: 9/16 Dia.

$7.49

$

Usually ships in 3-6 days

0

21

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 714-0470

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 714-0147

Hairpin Clip

$4.99

$

In Stock, Qty 6

0

25

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 712-0271

Hex Nut

$4.49

$

In Stock, Qty 19

0

27

White Outdoor 712-0265

Hex Nut 1/4-20

$3.99

$

Usually ships in 3-6 days

0

28

White Outdoor 711-1165

Clevis Pin

$13.99

$

Usually ships in 3-6 days

0

29

White Outdoor 711-0332

Lift Bracket Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

30

White Outdoor 710-1611

TT Screw 5/16-18 x .75
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

31

White Outdoor 710-1017

Torx Mach. AB Scr. 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

32

White Outdoor 710-0599

Hex TT Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 683-0163A

Steering Support Bracket

Variations

White Outdoor 683-0163A-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 683-0160

Pivot Bracket Assembly:Hood

$

$

Not available

35

White Outdoor 683-0142

Pivot Bar Assembly

Variations

White Outdoor 683-0142-0637

PIVOT BAR ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0142-0665

PIVOT BAR ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

$

$
